Hydro0x01

Production-Grade Open Source IoT Hydroponic Control System

---

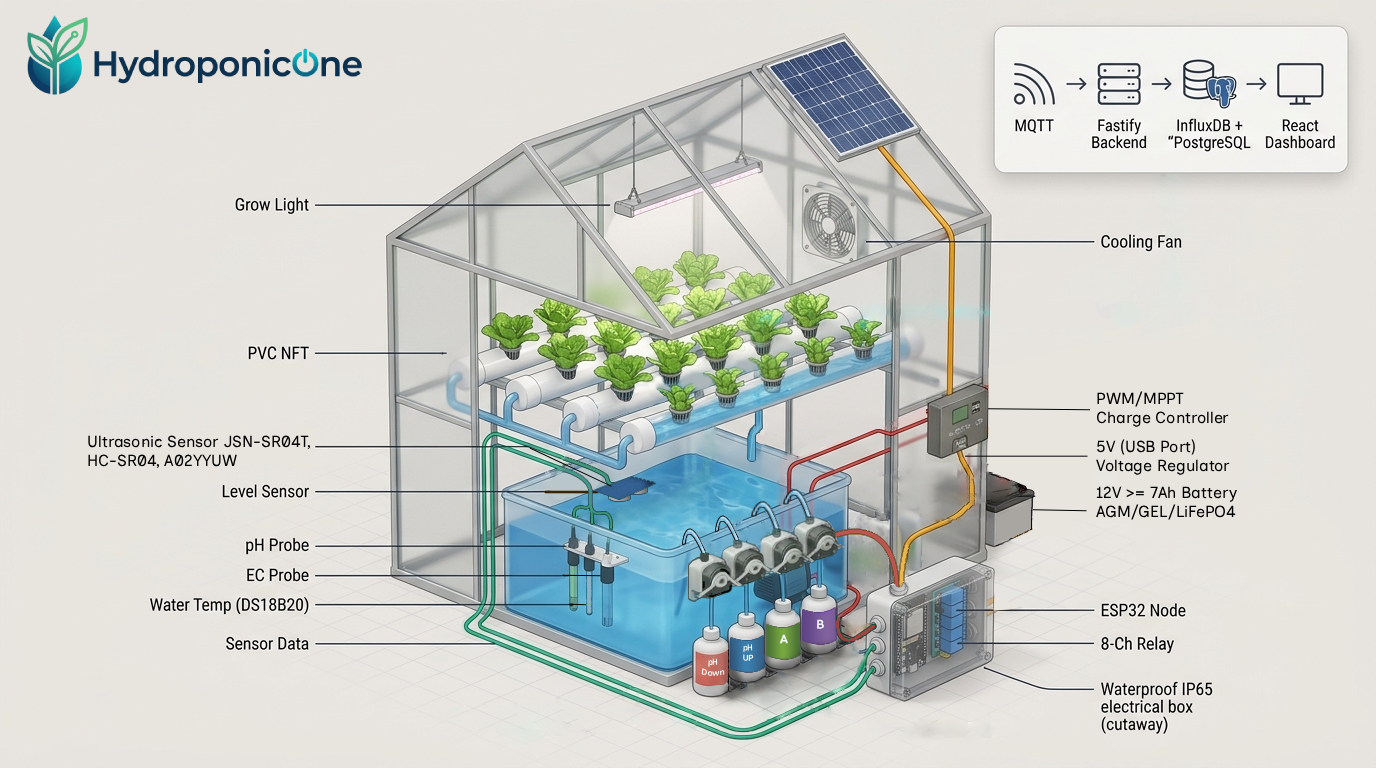

HydroponicOne is a robust, modular, and professional-grade hydroponic monitoring and control system. It aims to bridge the gap between hobbyist DIY setups and expensive industrial automation. Featuring a modern tech stack including MQTT, InfluxDB telemetry, and a sleek React-based dashboard.

✨ Features

• Real-Time Environment Monitoring: High-precision tracking of pH, EC, water level, temperature, and humidity.
• Automated Actuator Control: Smart relays for dosing pumps, main circulation, grow lights, and ventilation.
• Secure Architecture: Async MQTT with TLS, offline robust modes, and RSA-2048 Signed OTA updates.
• Edge-First Local Dashboard: Lightning fast React SPA communicating over real-time WebSockets to a Fastify backend.
• Enterprise Data Management: PostgreSQL for persistent config state and InfluxDB for time-series telemetry.

---

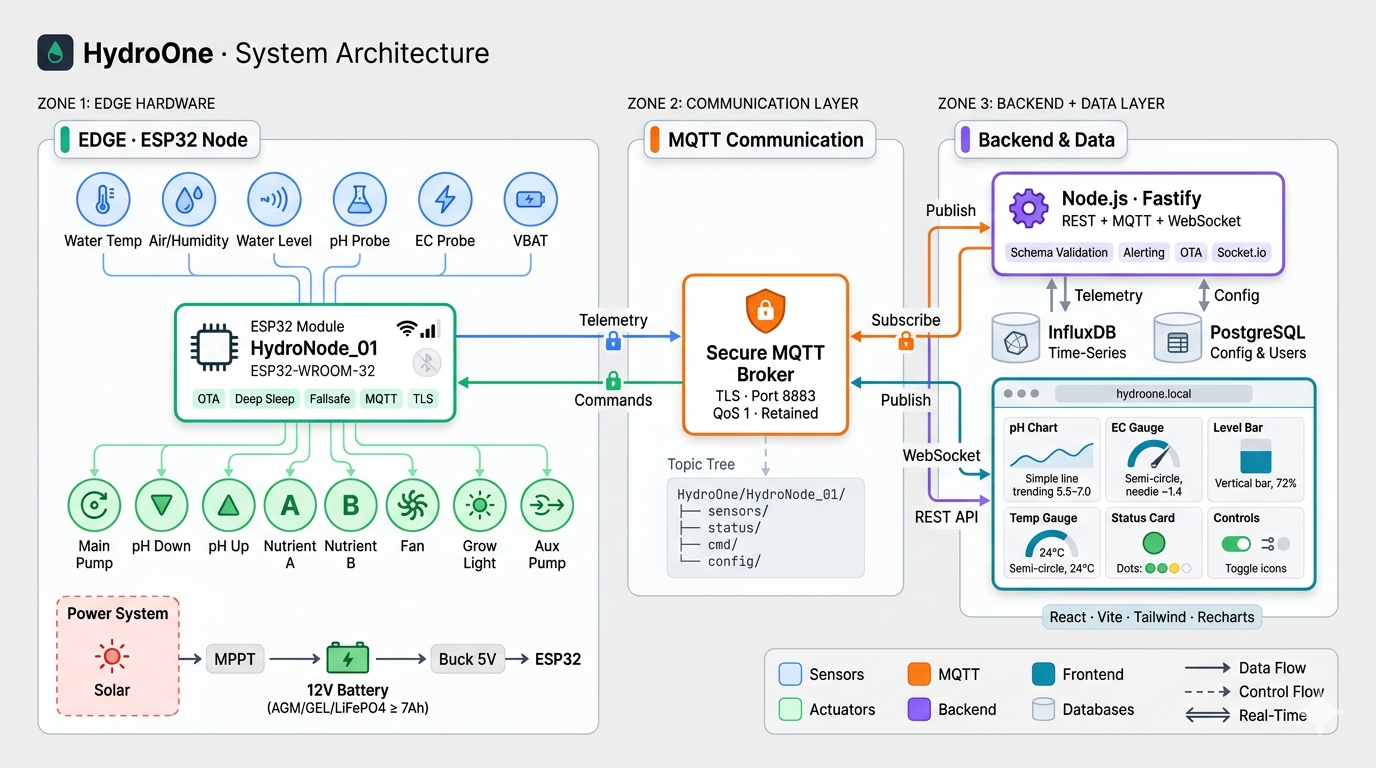

🏗 System Architecture

Layer	Stack
Frontend	React 19, Vite, Tailwind CSS, Recharts, Zustand, Lucide Icons
Backend	Node.js, Fastify, Prisma ORM, Socket.io
Database	PostgreSQL (relational), InfluxDB (time-series)
Firmware	C++ / Arduino, PlatformIO, Async MQTT
DevOps	Docker support, GitHub Actions, Secure OTA deployment

---

🛠 Prerequisites

Ensure you have the following installed before proceeding:

• Node.js (v20+ recommended)
• PostgreSQL (v14+)
• InfluxDB (v2.0+)
• MQTT Broker (Mosquitto/HiveMQ)
• ESP32 Development Board
• PlatformIO IDE

---

⚡ Quickstart & Installation

1. Clone the repository

git clone https://github.com/40rbidd3n/Hydro0x01.git
cd HydroponicOne

2. Setup Backend Configure the environment and seed the database.

cd backend
npm install
cp .env.example .env
# Edit .env with your DB credentials and a secure JWT Secret
npx prisma db push
npm run dev

3. Setup Frontend

cd ../frontend
npm install
cp .env.example .env
npm run dev

4. Build & Flash Firmware Review the Hardware Setup and connect your sensors to the ESP32.

cd ../firmware

# IMPORTANT: Clone the configuration template before compiling
cp include/config.example.h include/config.h
# Edit include/config.h with your network and MQTT details

# Edit platformio.ini to choose your hardware environment (e.g., env:esp32_dht_bmp)
pio run -t upload

---

📖 Documentation

Explore our comprehensive guides located in the docs/ folder:

#	Guide	Description
1	System Overview	How everything connects
2	Hardware Setup	Wiring diagrams and assembly
3	Firmware Guide	Configuration and flashing
4	Integration Guide	Home Assistant, Telegram & Discord
5	Calibration Guide	Sensor tuning procedures
6	Troubleshooting	Common issues and fixes
7	API Reference	REST API documentation
8	MQTT Guide	Topics and payload specifications
9	Security & OTA	Firmware signing and RSA keys

---

🚑 Troubleshooting

• Database Errors: Ensure you have run npx prisma generate and your credentials in .env are accurate.
• MQTT Connectivity: Ensure you are using mqtts:// if using port 8883, and check your base topic.
• Sensor Readings: Refer to Troubleshooting Docs for I2C and ADC calibration solutions.

---

🚀 Releases & Changelog

All code modifications and versioning are strictly documented. Check the CHANGELOG.md for version histories or the GitHub Releases page to download pre-compiled bins and read full production release notes.

---

🤝 Contributing & Community

We actively welcome community contributions to improve HydroponicOne! Please see our Contributing Guidelines and our Code of Conduct before submitting pull requests.

🗺️ Future Roadmap

We have an extensive development plan ranging from LoRa Master/Slave setups to AI diagnostics. View the complete Development Roadmap to see where we are heading.

📄 License

This project is licensed under the MIT License. See the LICENSE file for more details.

💬 Support & Contact

If you have a feature request or found a bug, please use the GitHub Issue Tracker.

Built with ❤️ for the future of sustainable farming.
