Reze Engine

Zero-runtime-dependency WebGPU engine for real-time MMD/PMX rendering — renderer, animation, IK, and physics, all in TypeScript.

npm install reze-engine

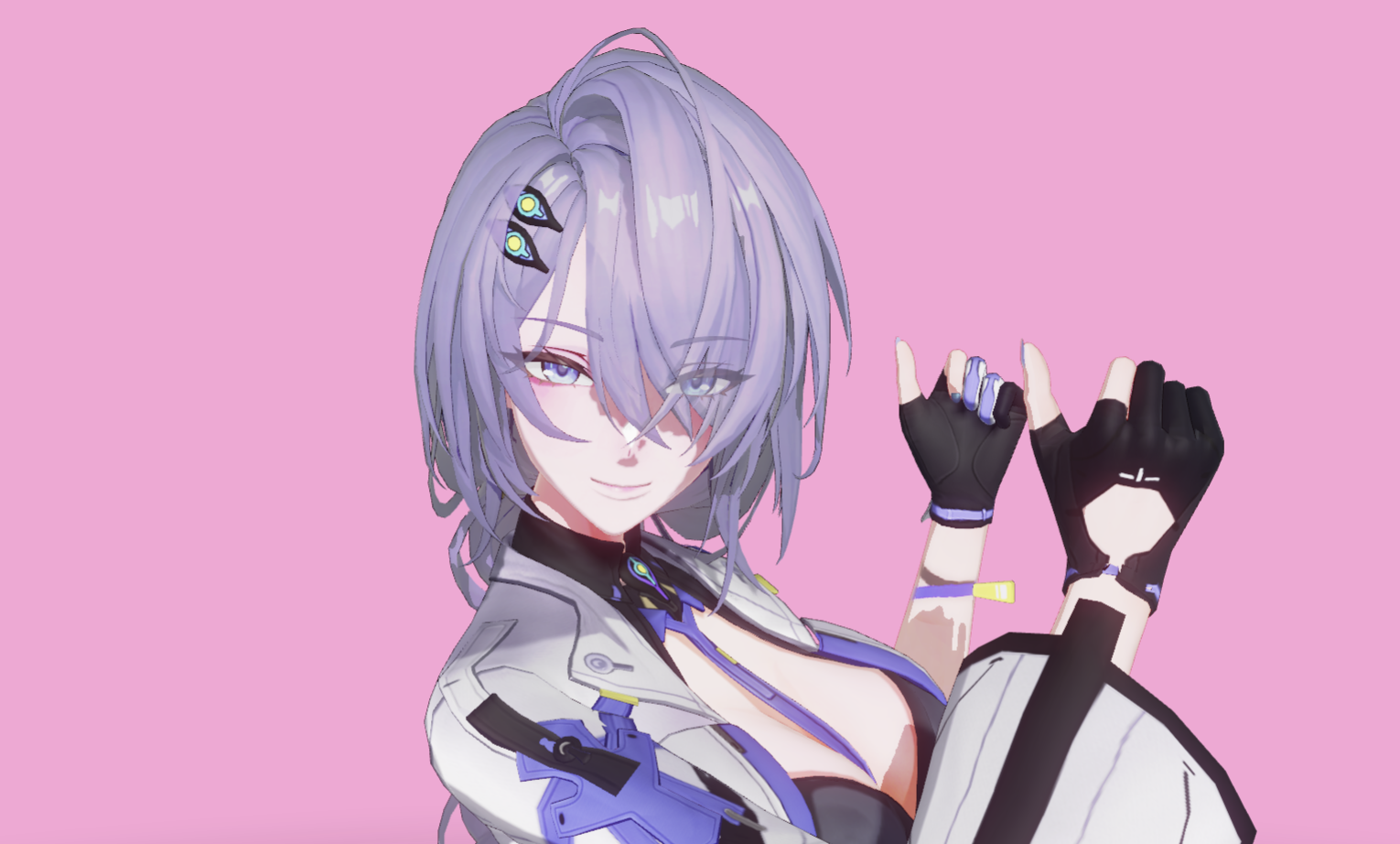

Features

• Anime-style rendering — toon-ramp NPR over a Principled GGX BSDF, mixed per material
• Shader-graph materials — every look is a Blender-style node graph compiled to WGSL; style groups bind any materials to any graph, fully customizable
• HDR pipeline — bloom, Filmic tone mapping, ASC CDL colour grading, 4× MSAA, Apple-TBDR-friendly targets
• In-house TS physics — sequential-impulse rigid bodies for PMX rigs with rest-stable implicit spring-dampers, zero dependencies
• VMD animation — MMD IK, morphs on a GPU compute path, and VMD export
• Interactive editing — GPU picking, transform gizmo, bone/material selection
• Camera — orbit, bone-follow, or a driven MMD camera VMD; ground + PCF shadows, multi-model scenes
• Offline rendering — frame-accurate stepping (renderFrame) at any resolution (setRenderSize) for video export; background color, 360° equirect backdrop, ground shadow-catcher
• WGSL background effects — a user shader layer (shadertoy-style) composited between the background and the scene, with compile diagnostics and live-tweakable uniform params

See Physics and Rendering for the internals.

Used by

• Reze Design (web-native scene composer & shader-graph styling)
• Reze Studio (MMD animation editor)
• MiKaPo (motion capture)
• Popo (LLM-generated poses)
• MPL (motion language)
• Mixamo-MMD (FBX→VMD retarget)

Quick start

import { Engine } from "reze-engine";

const engine = new Engine(canvas);
await engine.init();

const model = await engine.loadModel("reze", "/models/reze/reze.pmx");
await engine.autoStyleGroups("reze");

await model.loadVmd("idle", "/animations/idle.vmd");
model.show("idle");
model.play();

engine.addGround();
engine.runRenderLoop();

Codebase map

engine/src/
  engine.ts          Engine: device/context, render loop, all passes & pipelines,
                     per-model GPU resources, picking, gizmo   (entry point)
  model.ts           Model: skeleton, 4-bone skinning, morphs (CPU + GPU compute),
                     animation state, drives IK; per-frame update()
  animation.ts       AnimationClip, VMD bezier interpolation, playback/priority
  ik-solver.ts       MMD-style CCD IK (angle limits, solve-axis specialization)
  camera.ts          Orbit camera (alpha/beta/radius), bone-follow, mouse/touch
  math.ts            Vec3 / Quat / Mat4 (zero-alloc *Into variants for hot paths)
  pmx-loader.ts      PMX parser: mesh, bones, morphs, rigid bodies, joints
  vmd-loader.ts      VMD motion parser  ·  vmd-writer.ts  VMD export (Shift-JIS)
  asset-reader.ts    URL + local-folder asset resolution  ·  folder-upload.ts
  tga-loader.ts      TGA decoder (formats createImageBitmap can't read)
  index.ts           public exports

  graph/             shader-graph → WGSL compiler — materials as data
    schema.ts          ShaderGraph / StyleGroup / param types + validation
    registry.ts        node registry (Blender node → WGSL) + socket conversions
    compile.ts         validate → prune → toposort → peephole → emit
    render-class.ts    RenderClass / AlphaMode + the RENDER_CLASSES manifest
    slots.ts           per-render-class fs() shell (stencil/alpha) around the graph body
    presets/           the 9 built-in shader graphs (hair, face, eye, cloth, …)

  physics/           in-house rigid-body solver (~2.5k lines)
    physics.ts         RezePhysics: bone↔body sync, fixed-step accumulator + interpolation
    solver.ts          sequential-impulse PGS (joint + contact rows)
    contact.ts         narrowphase (analytical sphere/box/capsule pairs) + contact pool
    constraint.ts      6DOF spring joints   ·   world.ts  broadphase + step
    body.ts            SoA rigid-body store  ·  types.ts

  shaders/
    materials/       nodes.ts (Blender-node WGSL library the graph compiler emits into) +
                     common.ts (bindings, skinning VS, fs() shell)
    passes/          shadow, morph (GPU vertex-morph compute), bloom, composite (Filmic),
                     outline, selection, gizmo, pick, ground, mipmap

API

One WebGPU Engine per page (singleton after init()). Models load by URL or from a user-selected folder (below).

Engine

engine.init()
engine.loadModel(name, path)                 // or ({ files, pmxFile? }) for folder upload
engine.getModel(name) / getModelNames() / removeModel(name)
engine.setModelTransform(name, { position?, rotation?, scale?, visible? }) / getModelTransform(name)  // place a stage, scale or hide a model (scale is uniform)

engine.autoStyleGroups(name, overrides?)     // default style groups by material name
engine.applyStyleGroups(name, groups) / upsertStyleGroup / removeStyleGroup / getStyleGroups
engine.setMaterialVisible(name, material, visible) / toggleMaterialVisible / isMaterialVisible

engine.setIKEnabled(enabled)
engine.setPhysicsEnabled(enabled)
engine.resetPhysics()                        // re-pose bodies from animation + zero velocities (call if physics explodes)

engine.setCameraFollow(model, bone?, offset?) / setCameraFollow(null)
engine.setCameraTarget(vec3) / setCameraDistance(d) / setCameraAlpha(a) / setCameraBeta(b)

engine.loadCameraVmd(url) / loadCameraVmdFromBuffer(buffer)   // MMD camera track (dedicated file or a VMD's camera block) drives target/rotation/distance/fov — default-on once loaded
engine.setCameraVmdEnabled(on) / isCameraVmdEnabled() / hasCameraVmd() / clearCameraVmd()   // toggle the shot; while it drives, orbit/pan/zoom is inert — toggle off to hand control back

engine.setWorld({ color?, strength? }) / setSun({ color?, strength?, direction? })   // runtime lighting
engine.setBackgroundColor(color | null)      // canvas background (display-space sRGB 0–1, composited post-tonemap so it matches a CSS color of the same value exactly); null = transparent canvas (DOM shows through)
engine.setBackdropEquirect(source | null)    // 360° backdrop from an equirect (2:1) image — PhotoDome-style dome at infinity, follows the camera, display-only (no lighting/bloom influence); oversized panoramas auto-downscale to the device texture limit
engine.setBackgroundEffect(wgsl | null, params?)  // WGSL effect LAYER between the base background (color/equirect/transparent) and the scene. The code defines fn background(ray: vec3f, uv: vec2f, time: f32) -> vec4f — ray = the pixel's world-space view direction (pans with the orbit, same mapping the skybox samples by), uv = 0..1 bottom-left origin, alpha = layer mask over the base. Compiles async off the hot path; on failure the previous background is KEPT and {ok, diagnostics} returns line:col errors rebased to the user's code. Declared params ({name: number | {x,y,z}}) become a params.<name> uniform struct
engine.setBackgroundEffectParam(name, value) // write one declared param — a uniform write, no recompile (live slider tier)
engine.setColorGrading({ shadows?, midtones?, highlights?, contrast?, saturation? })   // ASC CDL grade on the TONEMAPPED scene: the three tonal colours are display-space sRGB with mid-grey (0.5,0.5,0.5) neutral — direction from neutral is the hue that range is pushed toward, distance is the amount, and going darker/lighter than 0.5 crushes or lifts it (shadows→CDL offset, midtones→power, highlights→slope). contrast pivots on 0.5; saturation is Rec.709. Uniforms-only, no pipeline rebuild — safe to call per frame from a slider. A neutral grade is flagged off and costs nothing per pixel
engine.getColorGrading()                     // current grade, for serialising into a scene descriptor
engine.addGround(options?)                   // options include opacity (0–1): fades the SURFACE while the received shadow persists (shadow catcher — models stay grounded on photo backdrops); shadowStrength 0 disables the shadow
engine.runRenderLoop(callback?) / stopRenderLoop()
engine.renderFrame(deltaSeconds)             // offline rendering: render one frame advancing EVERY clock (animation, physics, camera VMD) by exactly dt — wall-clock independent; call N times with 1/fps for deterministic video export
engine.setRenderSize(w, h) / setRenderSize(null)   // pin render resolution (all targets) independent of the canvas CSS size, e.g. 3840×2160 for export; null returns to CSS-size × devicePixelRatio tracking
engine.getStats()                            // fps + smoothness metrics (frameTimeMax, fps1PercentLow, jitter)
engine.dispose()

Options — Blender-style scene config: world = environment lighting, sun = directional lamp (direction points from sun into the scene), camera = framing (fov in radians), background = canvas background (display-space sRGB, same semantics as setBackgroundColor). Callbacks: onRaycast, onGizmoDrag. The shadow map is cast from sun.direction — the same vector the shader lights with — so shading and cast shadows stay coupled.

Model

await model.loadVmd(name, url) / model.loadClip(name, clip)
model.show(name)
model.play(name, { priority?, loop? })       // priority: higher wins when clips compete (0 = default)
model.pause() / stop() / seek(time)
model.clearAnimation()                       // stop + DEACTIVATE the clip (stop() keeps it current for re-play; clear() forgets it, so resetAllBones/Morphs actually shows the bind pose)
model.getAnimationProgress()                 // { current, duration (s), playing, paused, looping, … }
model.exportVmd(name)                        // → ArrayBuffer (Shift-JIS bone/morph names)

model.rotateBones({ 首: quat }, ms?) / moveBones({ センター: vec3 }, ms?)
model.setMorphWeight(name, weight, ms?)
model.resetAllBones() / resetAllMorphs()
model.getBoneWorldPosition(name)

AnimationClip holds keyframes only (bone/morph tracks keyed by frame, plus frameCount); time advances at fixed FPS (exported, default 30).

Local folder uploads (browser)

Feed a <input type="file" webkitdirectory> FileList (or drag/drop) into the engine; textures resolve relative to the chosen PMX inside that tree.

Gotcha: copy input.files into an array before input.value = "" — the FileList is live and clearing the input empties it.

parsePmxFolderInput(fileList) returns a tagged result; for single you get { files, pmxFile } directly, for multiple show a picker over pmxRelativePaths and resolve with pmxFileAtRelativePath(files, path). Then:

const picked = parsePmxFolderInput(e.target.files);
e.target.value = "";
if (picked.status === "single")
  await engine.loadModel("m", { files: picked.files, pmxFile: picked.pmxFile });

VMD and other assets still load by URL when the path starts with / or http(s):; relative paths resolve against the PMX directory.

Any File[] works, not just folder picks — files from plain multi-select or drag & drop carry webkitRelativePath === "" and key by filename instead (which may itself contain a path: hosts that extract a model .zip in-app can synthesize new File(data, "model/tex/body.png") and paths resolve exactly like a folder pick). Texture paths additionally fall back to basename matching — a PMX referencing tex/body.png finds a flat body.png; the same fallback rescues wrongly-cased directory names.

Interactive pose editing

Double-click picks a bone or material (per-triangle dominant-joint from the GPU pick, so one handler serves both modes); a local-axis transform gizmo drags it. The engine only reports — it never writes the skeleton itself, so the host chooses the write policy.

engine.setSelectedBone(modelName | null, boneName | null)       // shows the gizmo
engine.setSelectedMaterial(modelName | null, materialName | null) // selection outline

onRaycast: (modelName, material, bone, screenX, screenY) => { ... } // modelName "" = missed

type GizmoDragEvent = {
  boneName: string; boneIndex: number; kind: "rotate" | "translate"
  localRotation: Quat; localTranslation: Vec3   // target absolute local transform
  phase?: "start" | "end"                       // undefined during drag moves
}

The gizmo consumes mouse input inside its bounding sphere so drags never fight camera orbit. Apply the reported transform — runtime override (below) or keyframe edit into a clip you re-loadClip:

onGizmoDrag: (e) => {
  const model = engine.getModel(e.modelName);
  if (!model) return;
  if (e.phase === "start") {
    model.pause();
    model.setClipApplySuspended(true);
    return;
  } // stop re-sampling wiping the edit
  if (e.phase === "end") return;
  if (e.kind === "rotate")
    model.rotateBones({ [e.boneName]: e.localRotation }, 0); // 0 = instant write
  else model.setBoneLocalTranslation(e.boneIndex, e.localTranslation);
};
// play()/seek() auto-clear the suspend flag (edit is lost — runtime-override semantic).

Note the asymmetry: rotation goes through rotateBones(…, 0), but translation uses setBoneLocalTranslation(idx, v) — moveBones converts VMD-relative→local, and the gizmo output is already local.

Shader graphs & style groups

Materials are styled by shader graphs — plain JSON (ShaderGraph) validated and compiled to WGSL at runtime. Node semantics are frozen Blender 3.6 legacy-EEVEE, so community Blender NPR presets port by transcription. Nine graphs ship built-in (FACE_GRAPH, HAIR_GRAPH, BODY_GRAPH, EYE_GRAPH, METAL_GRAPH, STOCKINGS_GRAPH, CLOTH_SMOOTH_GRAPH, CLOTH_ROUGH_GRAPH, DEFAULT_GRAPH — the neutral base) as a starter library; you can also author or import your own.

A style group binds { materials, graph, renderClass?, alphaMode? } — a set of materials, the graph that shades them, and the engine's small pass-integration vocabulary (renderClass: auto/eye/hair for stencil/cull/draw-order; alphaMode: opaque/hashed). Groups are user-defined and unlimited — any materials, any graph. A graph is pure shading; renderClass carries the built-in effects (hair's over-eyes stencil, the eye see-through stamp), so any graph in an eye/hair group inherits them. Every group needs a valid graph; a material in no group renders the neutral default (DEFAULT_GRAPH).

Two ways to make groups:

import { HAIR_GRAPH, compileGraph } from "reze-engine";

// 1. autoStyleGroups — one default group per matched category (its shipped graph). Easy path.
await engine.autoStyleGroups("reze");

// 2. applyStyleGroups — arbitrary groups: any id, any materials, any graph.
await engine.applyStyleGroups("reze", [
  {
    id: "hair",
    materials: ["髪", "前髪"],
    graph: HAIR_GRAPH,
    renderClass: "hair",
  },
  { id: "visor", materials: ["visor", "hud"], graph: myCustomGraph }, // your own graph
]);
engine.setStyleParam("reze", "hair", "rim", 0.8); // exposed param → instant uniform write
engine.removeStyleGroup("reze", "hair"); // its materials drop to the neutral default

// Headless (no GPU needed):
const { ok, wgsl, diagnostics } = compileGraph(HAIR_GRAPH, {
  renderClass: "hair",
});

How autoStyleGroups(model, overrides?) resolves — it assigns each material a style category, then buckets materials by category into one group each:

1. overrides first — an explicit { category: [materialNames] } map (the arg). Use it for the names the built-in hints can't read.
2. Then built-in name hints — a case-insensitive substring match of the material name against per-category JP/CN/EN keyword lists, ordered most-specific-first so families don't collide (靴下/stocking resolves to stockings before 靴/shoes would hit cloth_smooth). This covers standard-named models with no overrides at all.
3. No match → ungrouped — the material renders the neutral default. "Unmatched" is a real, intended outcome, not a catch-all bucket.

The built-in name hints, checked top-to-bottom (first match wins), with the graph and pass-integration each category carries:

Category	Graph · render-class / alpha	Matches a name containing (case-insensitive substring)
stockings	STOCKINGS_GRAPH · hashed alpha	靴下 · ソックス · タイツ · ニーソ · 袜 · stocking · socks · tights
eye	EYE_GRAPH · eye	白目 · 目影 · 二重 · 睫 · まつげ · まゆ · 眉 · 目 · 瞳 · 眼 · eye · iris · pupil · lash · brow
face	FACE_GRAPH	顔 · 颜 · 脸 · かお · face · 舌 · tongue · 牙 · 牙齿 · 歯 · teeth · tooth · 口腔 · 口内 · mouth · 嘴 · 歯茎 · gums
hair	HAIR_GRAPH · hair	前髪 · 後髪 · 髪 · 髮 · 头发 · 頭髪 · もみあげ · アホ毛 · ヘア · hair · ahoge · bang
body	BODY_GRAPH	肌 · 皮肤 · skin
metal	METAL_GRAPH	金属 · メタル · metal · earring · 耳环 · 耳環
cloth_smooth	CLOTH_SMOOTH_GRAPH	服 · 衣 · 裙 · 裤 · スカート · ワンピ · リボン · 袖 · 靴 · 鞋 · 帽 · 体 · 飾 · 饰 · 尾 · 套 · 腿 · skirt · dress · ribbon · sleeve · shoes · shirt · short · boot · hat · cloth · accessor · trigger

cloth_rough and default have no name hints — a material reaches them only via an explicit overrides entry. The group id is the category name, so re-running autoStyleGroups is idempotent; its promise resolves after every graph compiles, so getStyleGroups(model) is ready the moment it resolves — seed your own store from it, then edit with applyStyleGroups.

Validation catches material conflicts, type mismatches, cycles, and bad links with node-level diagnostics; a failed compile keeps the previous pipeline rendering (fallback-on-error).

Physics

In-house sequential-impulse rigid-body solver for PMX rigs (sphere / box / capsule colliders, 6DOF spring joints), ~2.5k lines of TypeScript, no external dependency, at quality comparable to Bullet's defaults. A fixed-timestep accumulator runs at a constant 60 Hz (≤6 substeps/frame) so spring impulse, damping, and integration stay deterministic; dynamic bodies are render-interpolated between substeps to stay smooth when the display rate ≠ 60 Hz.

Per substep: predict velocities → broad + narrowphase → solve constraints (10 iters) → split-impulse position correction → integrate.

• Solver — projected Gauss-Seidel, joint rows + contact rows in one loop. Joints are 6DOF spring constraints (3 linear + 3 angular) with stop-ERP limit correction. Linear rows pivot on each body's own joint-frame origin (Spring2-style, not Bullet 2.7x's shared mid-anchor), so a violated joint pulls itself back together instead of degenerating into torque and "breaking".
• Implicit spring-dampers — each sprung axis solves the backward-Euler soft constraint relVel⁺ + (k/γ)·err + s·λ = 0 (γ = c + h·k, s = 1/(h·γ)), unconditionally stable for any authored stiffness, with damping c = 2ζ√(k·m_eff) intrinsic to the row. Resting cloth genuinely settles: the previous clamped velocity-drive could inject energy far from equilibrium but not absorb it near it, so static dresses slowly "boiled" — measured 15× lower resting velocity after the change, with authored stiffness now delivered in full (no deadbeat clamp).
• Angular limits — hybrid: small violations (< 0.5 rad, the resting-cloth regime) use per-axis Euler stop rows, which converge cleanly and keep resting cloth still; larger violations switch to a single geodesic row toward the Euler-clamped target rotation, because per-axis Euler rows chase phantom errors near the ±90° singularity and pump energy. Ranged stops are unilateral (accumulated impulse clamped to the corrective sign) so a limit pushes back into range but never brakes natural recovery; locked axes stay bilateral equality joints. Spring rows stay per-axis, with stiffness clamped to the k·dt² ≤ ¼ stability bound.
• Narrowphase — analytical sphere-sphere / -capsule / -box and capsule-capsule / -box. Capsule-capsule emits multiple contacts along near-parallel axes so cloth can't pivot around a single closest point.
• Speculative contacts (margin 0.04) fire at near-touch with a push-only clamp — inert until real overlap, but they stop fast bodies tunneling thin surfaces in one substep.
• Split-impulse correction resolves penetration by a mass-weighted translation outside the velocity solver, so joint pulls can't fight separation.
• Kinematic advancement — bone-driven bodies move toward the frame's bone pose incrementally per substep, with velocities derived over the fixed step, so the solver never sees more than one 60 Hz step of anchor motion regardless of render dt.
• Discontinuity guards — a bone-pose jump beyond continuous motion (timeline scrub, long stall) rigidly carries each dynamic body along with its kinematic root's transform delta and zeroes momentum instead of dragging cloth across the gap; correction velocities are clamped (120 u/s linear, 30 rad/s angular), per-step travel is capped, and any body that still goes non-finite is restored to its previous substep pose.
• Sleeping is off (cloth must always react); resting bodies bleed micro-velocity via per-PMX damping.

Engine surface is just setPhysicsEnabled / resetPhysics — all tuning (mass, damping, friction, restitution, joint stiffness/limits, collision groups) lives on the PMX rig.

Rendering

Each built-in shader graph mixes an NPR stack with a Principled-style BSDF, so characters keep a flat illustrated look while highlights and reflections stay grounded. A graph compiles to a fragment shader following one 7-stage layout (node primitives from nodes.ts, the fs() shell from common.ts):

(A) setup → (B) texture + alpha → (C) NPR stack → (D) optional bump
→ (E) Principled BSDF → (F) NPR↔PBR mix → (G) FSOut

default uses only A/B/E/G; the NPR graphs add C (and sometimes D), with F choosing how NPR-leaning the result is.

• PBR core (eval_principled) — GGX + Schlick Fresnel, Walter–Smith G1, Fdez-Agüera 2019 multi-scatter, Karis split-sum DFG LUT, Heitz 2016 LTC direct-spec, optional sheen.
• NPR toolbox — toon ramps (constant / fwidth-AA'd), HSV warm-shadow / cool-light remaps, fresnel + layer-weight rims, value-noise bump, Voronoi metallic sparkle, BT.601-gated emission.

Built-in graph	Notes
default	Plain Principled, metallic 0, rough 0.5
eye	Plain + post-eval emission ×1.5
face	Toon + warm rim + dual-fresnel rim + bright-tex gate, noise bump
body	Toon + warm rim + fresnel + facing rim, noise bump
hair	Toon + fresnel + bevel + bright-tex gate, 20% PBR
cloth_smooth	Toon + bevel + emission overlay (×18)
cloth_rough	Same NPR, live noise bump, rough 0.82
metal	Toon + emission overlay (×8), Voronoi base, metallic 1
stockings	Gradient × facing mask + HSV emission (×5), sheen 0.7, alpha-hashed

Post & output. Directional shadow map (4096², depth32float, PCF) → HDR main pass at 4× MSAA (rg11b10ufloat color + rg8unorm aux MRT for bloom mask + alpha; fits Apple-Silicon TBDR tile memory so MSAA resolves in-tile, rgba16float fallback) → bloom mip pyramid → Filmic tone map (Blender 3.6 "Filmic / Medium High Contrast" LUT) → ASC CDL colour grade (setColorGrading, scene only — the background layer and any green-screen key are deliberately left ungraded) → composite over the background (base color / 360 equirect, then the optional user WGSL effect layer over-composited by its alpha, display space) → inverted-hull outline.

• Alpha-hashed transparency (stockings) — Wyman & McGuire 2017 derivative-aware stochastic discard in object space, so self-overlapping meshes resolve under MSAA with opaque depth writes and the dither doesn't swim.
• Sheer-material detection — PMX has no "translucent" flag (a see-through veil usually ships diffuse alpha 1.0 with the transparency in its texture), so at load each material samples its texture's alpha at its own triangle centroids; genuinely sheer materials route to the transparent bucket — drawn after the opaque + hair passes so a veil composites over the hair behind it, and excluded from the shadow map so sheer cloth doesn't cast the solid shadow of an opaque sheet. Centroids, not vertices: hair-card corners sit in transparent texture margins, and hair must stay opaque-bucket for stencil interplay and shadows.
• See-through hair over eyes — stencil-gated extra pass: the eye stamps EYE_VALUE, main hair skips it, an extra pass matches it and blends hair at 25% in linear HDR so eyes stay readable.

Tutorial

How to Render an Anime Character with WebGPU
