Ilum(WIP)

Ilum Graphics Playground, name after Planet Ilum from star wars.

A framework for computer graphics learning and practice (It's not a game engine!)
bilibili: Project demo video

Install

Platform

• Windows 10
• Visual Studio 2022
• xmake >= v2.7.5
• [optional] CUDA >= 11.7

Build

Ilum uses xmake for building. You can compile the whole project by simply run command:

xmake -y

or you can open the project in Visual Studio by generating .sln file:

xmake project -k vsxmake

Feature

Cross-Platform RHI

• Vulkan

  • Mesh Shading
  • Dynamic Rendering
  • Ray Tracing Pipeline
  • Draw/Dispatch Indirect
  • Bindless Resource

• CUDA

  • CUDA & Vulkan Interop

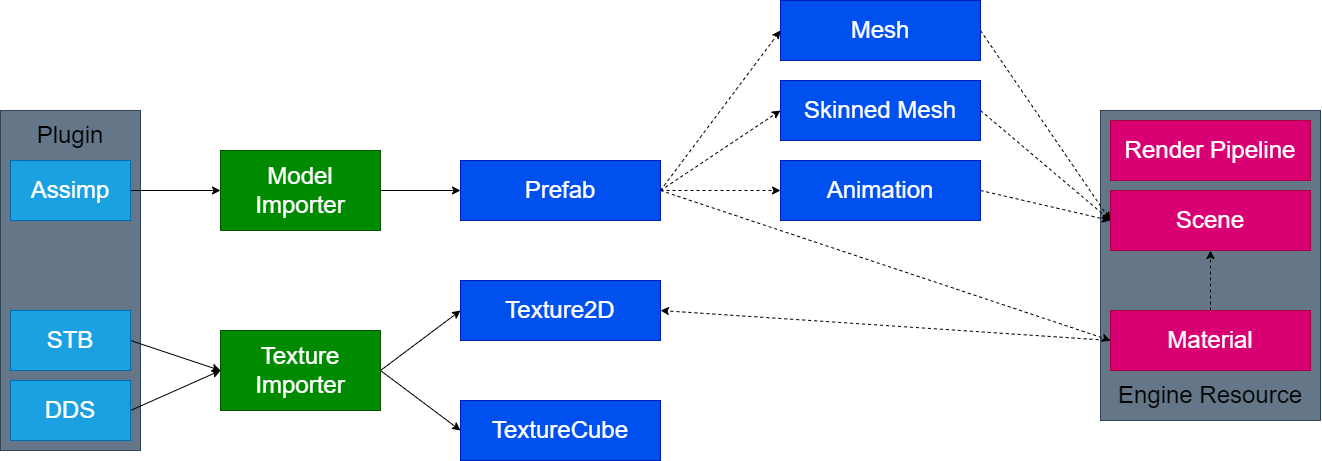

Resource Manager

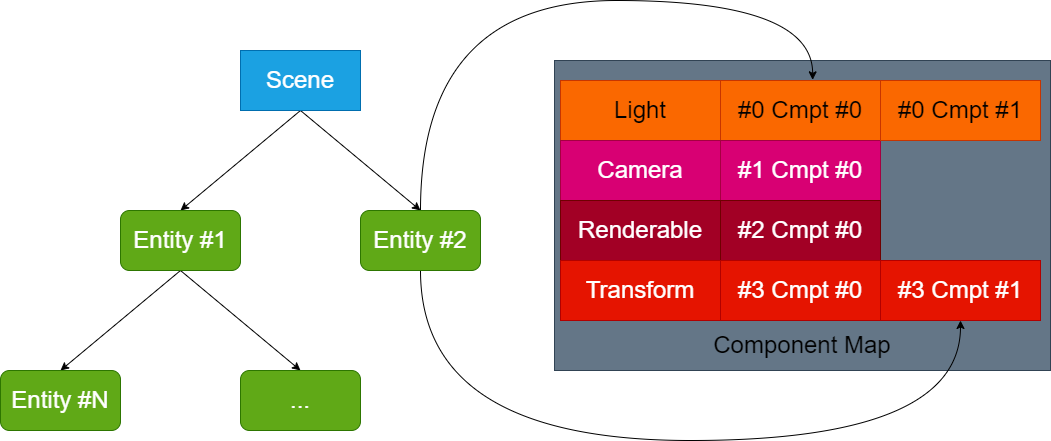

Scene Graph

Shader Compilation

Render Graph

• Static compilation
• Automatic resource state tracking and transition
• Texture memory aliasing
• Seamless interoperation between Graphics API and CUDA
• Easy to customize render pass

Render Pass

• Visibility Deferred Shading Pipeline

  • Visibility Geometry Pass

    • Mesh shading with meshlet frustum culling (if device support mesh_shader)
    • Usual rasterization without optimization

  • Visibility Buffer Visualization

    • Visualize visibility buffer: instance and primitive

  • Visibility Buffer Lighting Pass

    • Indirect dispatch to support multiple material graphs
    • Generate lighting result and GBuffer

• Shadow

  • Classic Shadow Map (Spot Light)
  • Omnidirectional Shadow Map (Point Light)
  • Cascade Shadow Map (Directional Light)

• Ambient Occlusion

  • SSAO

• IBL

  • Spherical Harmonic Encoding Diffuse
  • Pre-Filter For Specular

• Ray Tracing

  • Path Tracing

• Post Process

  • Tone Mapping
  • Bloom
  • FXAA

TODO

• Resource Pool
• Runtime compilation maybe
• Multi-threading

Material Graph

Feature

• Static compilation and HLSL generation
• Easy to customize material node
• Support usual BSDF models

Plugins

You can extend the renderer features by adding these plugins:

• RHI
• Render Pass
• Material Node
• Importer
• Editor

Customize Render Pass

Customize Material Node

Gallery

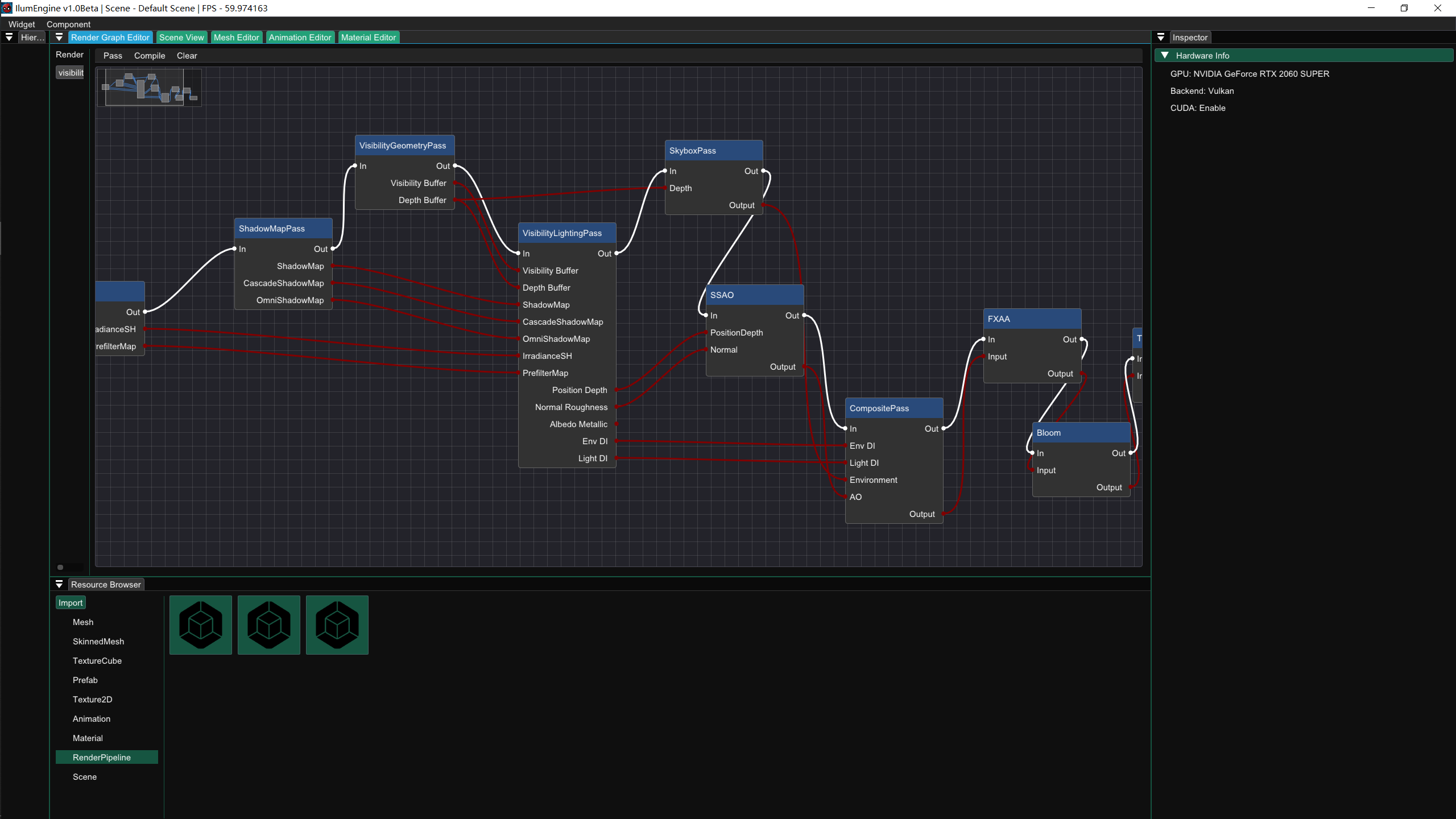

Render Graph Editor

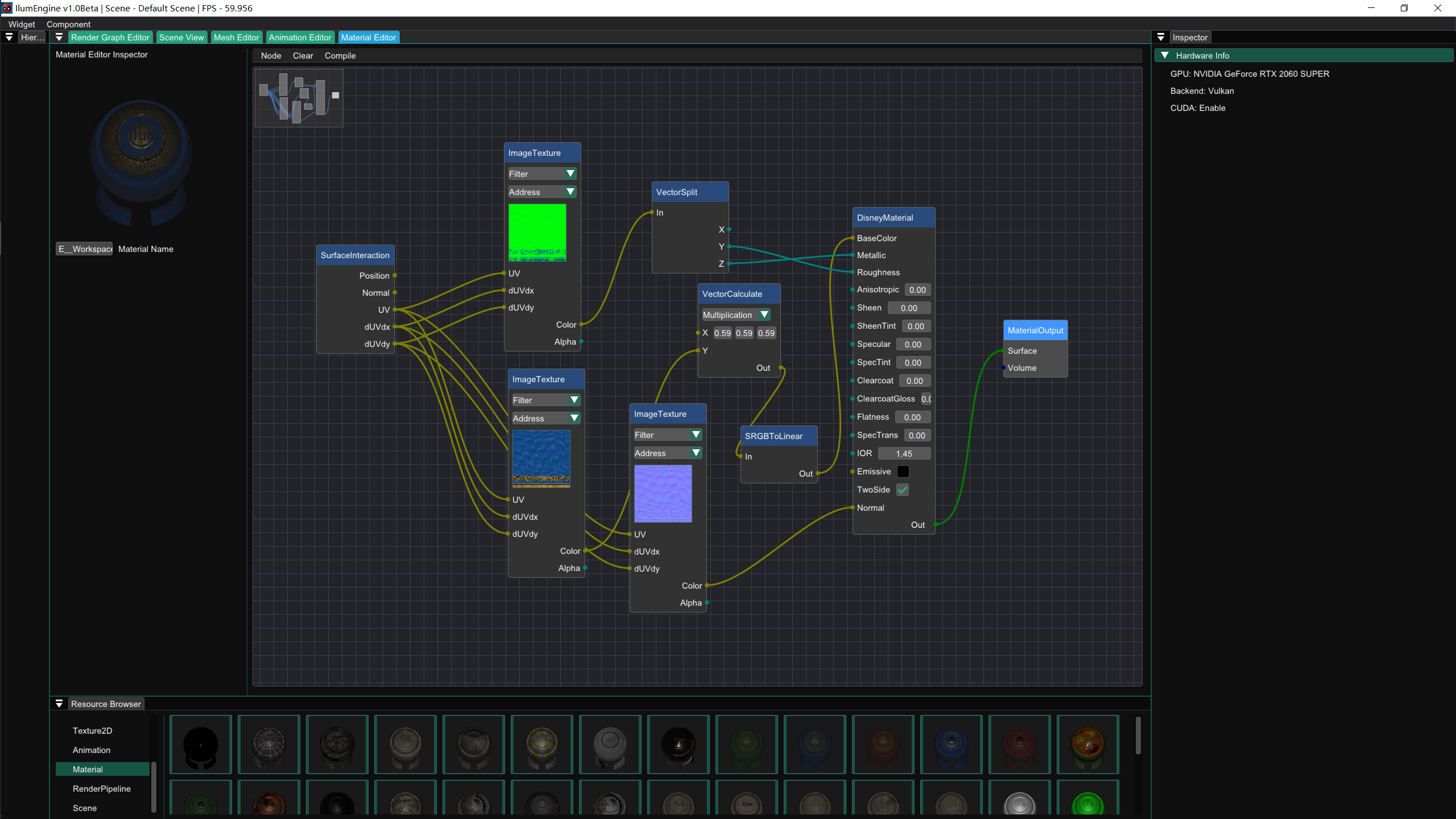

Material Graph Editor

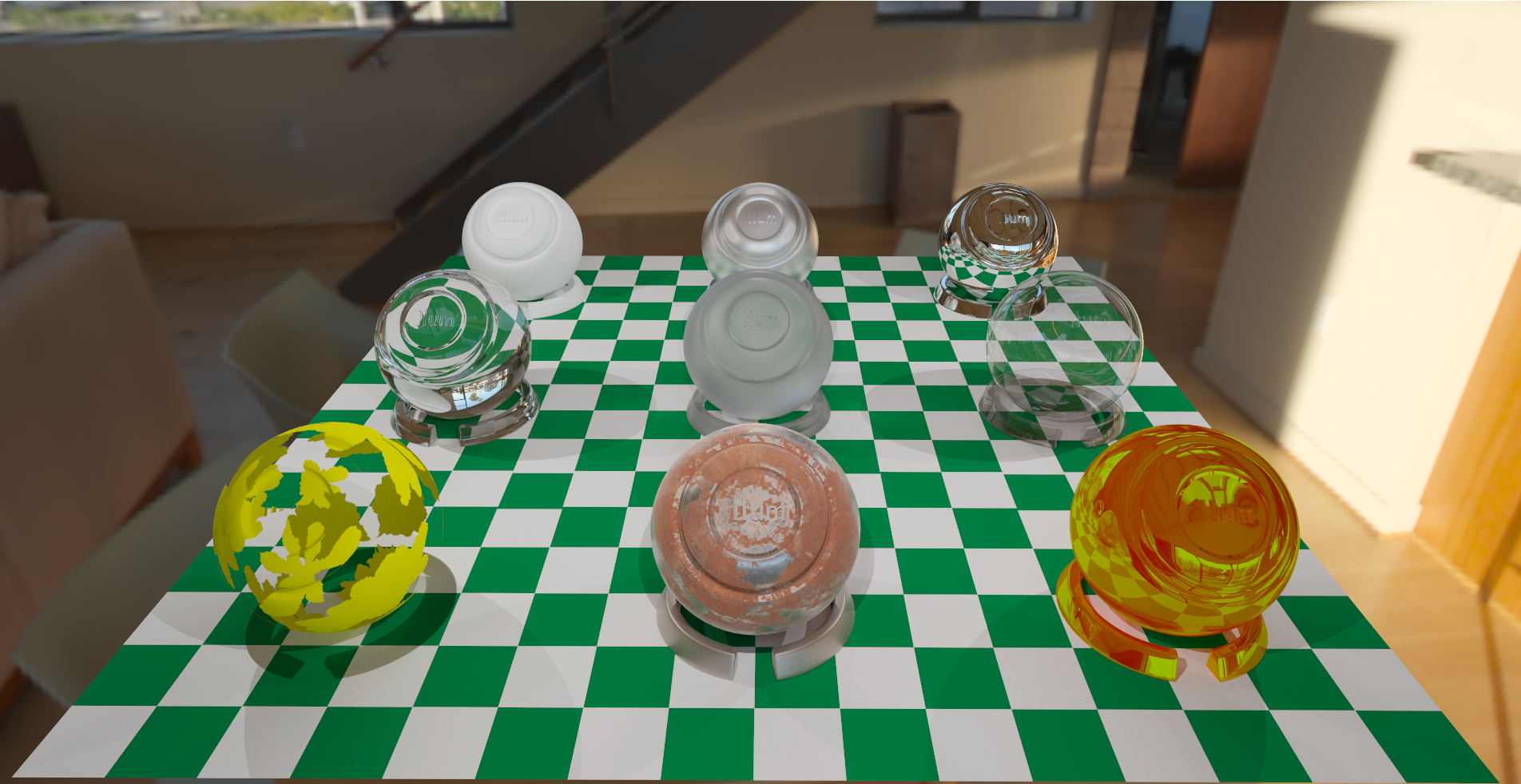

Path Tracing

Reference

• https://www.pbr-book.org/

• http://www.realtimerendering.com/

• https://learnopengl-cn.github.io/

• https://hazelengine.com/

• https://advances.realtimerendering.com/s2015/aaltonenhaar_siggraph2015_combined_final_footer_220dpi.pdf

• https://www.gdcvault.com/play/1024612/FrameGraph-Extensible-Rendering-Architecture-in

• https://github.com/SaschaWillems/Vulkan

• https://github.com/KhronosGroup/Vulkan-Samples

• https://github.com/wdas/brdf

• http://blog.selfshadow.com/publications/s2015-shading-course/burley/s2015_pbs_disney_bsdf_notes.pdf.

• https://www.froyok.fr/blog/2021-12-ue4-custom-bloom/

• https://filmicworlds.com/blog/visibility-buffer-rendering-with-material-graphs
