Rackpad

Rackpad is a self-hosted infrastructure inventory and operations workspace for homelabs, small racks, network rooms, and lab environments. It brings racks, devices, ports, cables, VLANs, IPAM, WiFi, compute, discovery, monitoring, docs, images, labs, and an admin area into one clean app.

See the changelog for release history; the badge above tracks the latest tag.

Built with:

React + Vite frontend
Fastify API
SQLite persistence through better-sqlite3
session-based authentication with admin/editor/viewer roles
per-device health checks with ICMP, TCP, HTTP/HTTPS, and SNMP (v1/v2c/v3) monitor targets; optional trap receiver and VLAN/subnet sync (see SNMP guide)
Docker support for a single-container deployment

Highlights

Visual topology — a movable React Flow network map with cable routes, health overlays, and rack/pyramid layouts
Racks, devices, ports & cables — dense rack elevations, switch-panel port maps, and full cable patching
IPAM — subnets, DHCP zones and reservations, gateway/DNS protection, and multi-IP device records (device- and interface-level)
Monitoring — per-device ICMP, TCP, HTTP/HTTPS, and SNMP health checks with email/Discord/Telegram alerting
Discovery — IPAM-subnet, all-subnet, and manual-CIDR scanning with import reconciliation
WiFi, compute & docs — controller/SSID/AP/radio/client inventory, virtualization hosts, and markdown docs with images
Light & dark themes, self-hosted fonts (works offline / air-gapped), and English/French localization
Self-hosted — single Docker container, SQLite persistence, session auth with admin/editor/viewer roles, optional OIDC

See the changelog for what landed in each release.

Quick links

Rackpad's public website is rackpad.net. The repo also contains the core material you need:

Preview

Rackpad ships light and dark themes. Full-resolution 1920x1200 captures live in docs/screenshots and are shown full-width here so GitHub keeps them sharp.

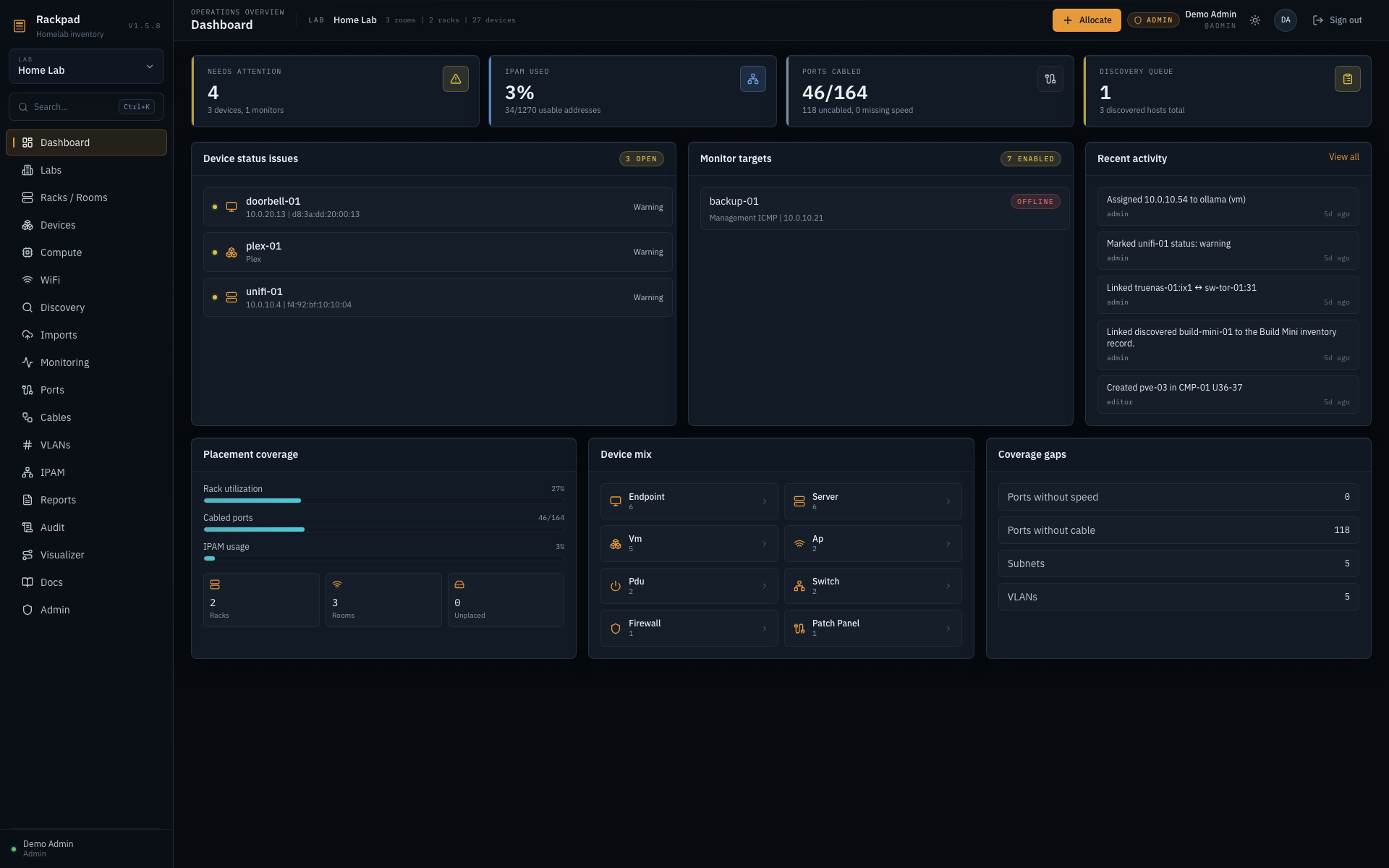

Operations dashboard

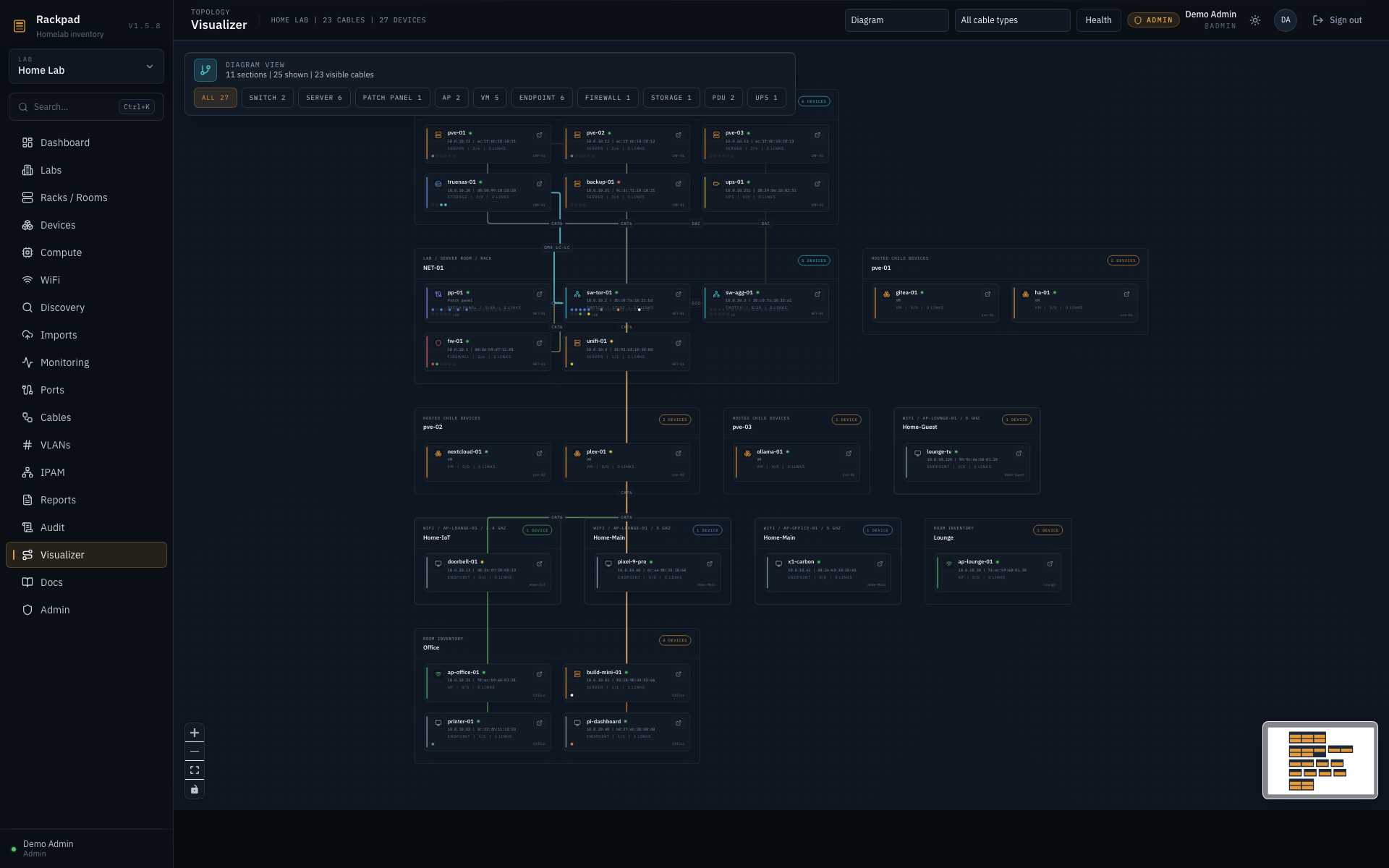

Diagram visualizer

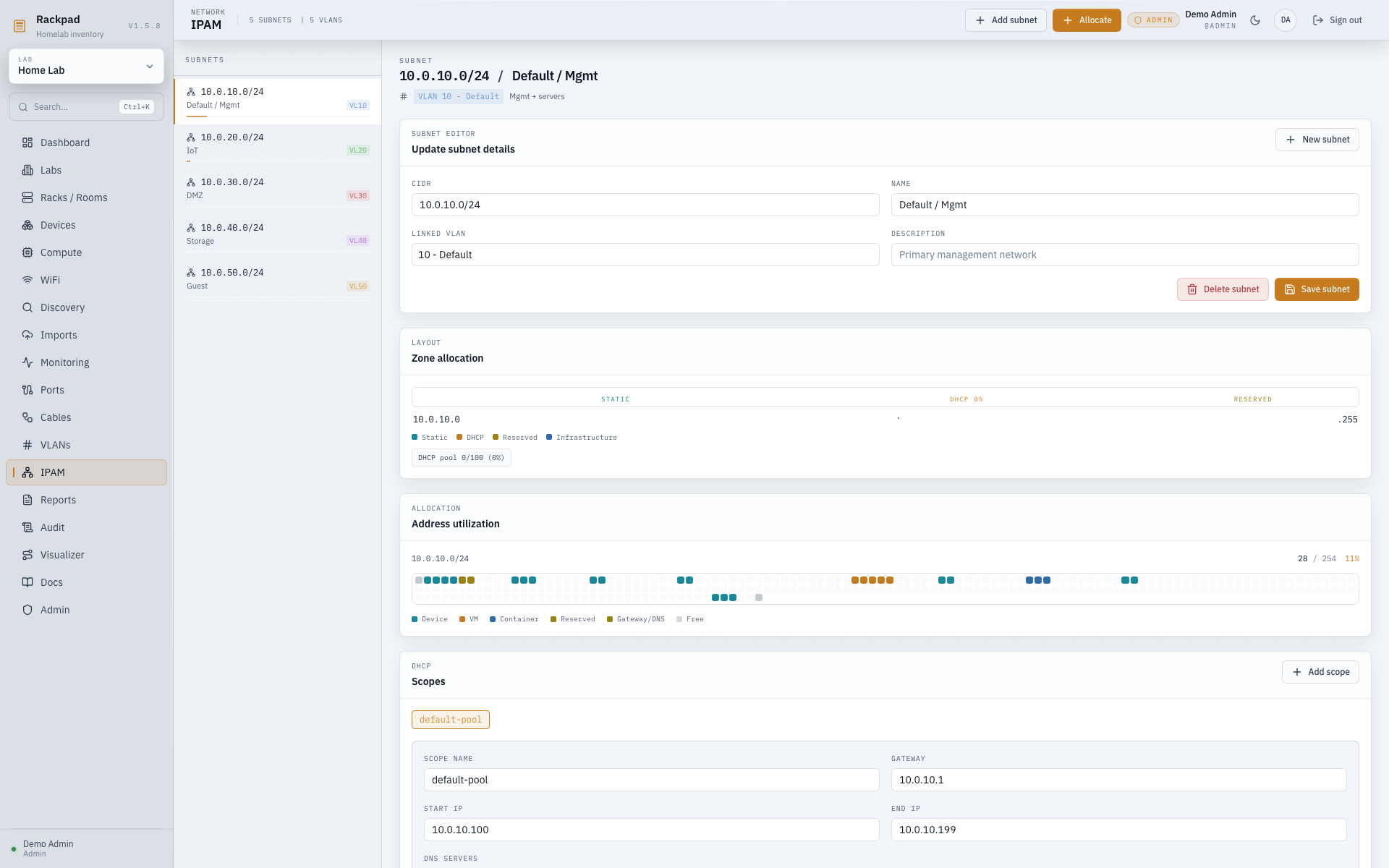

IPAM, DHCP zones, and reservations

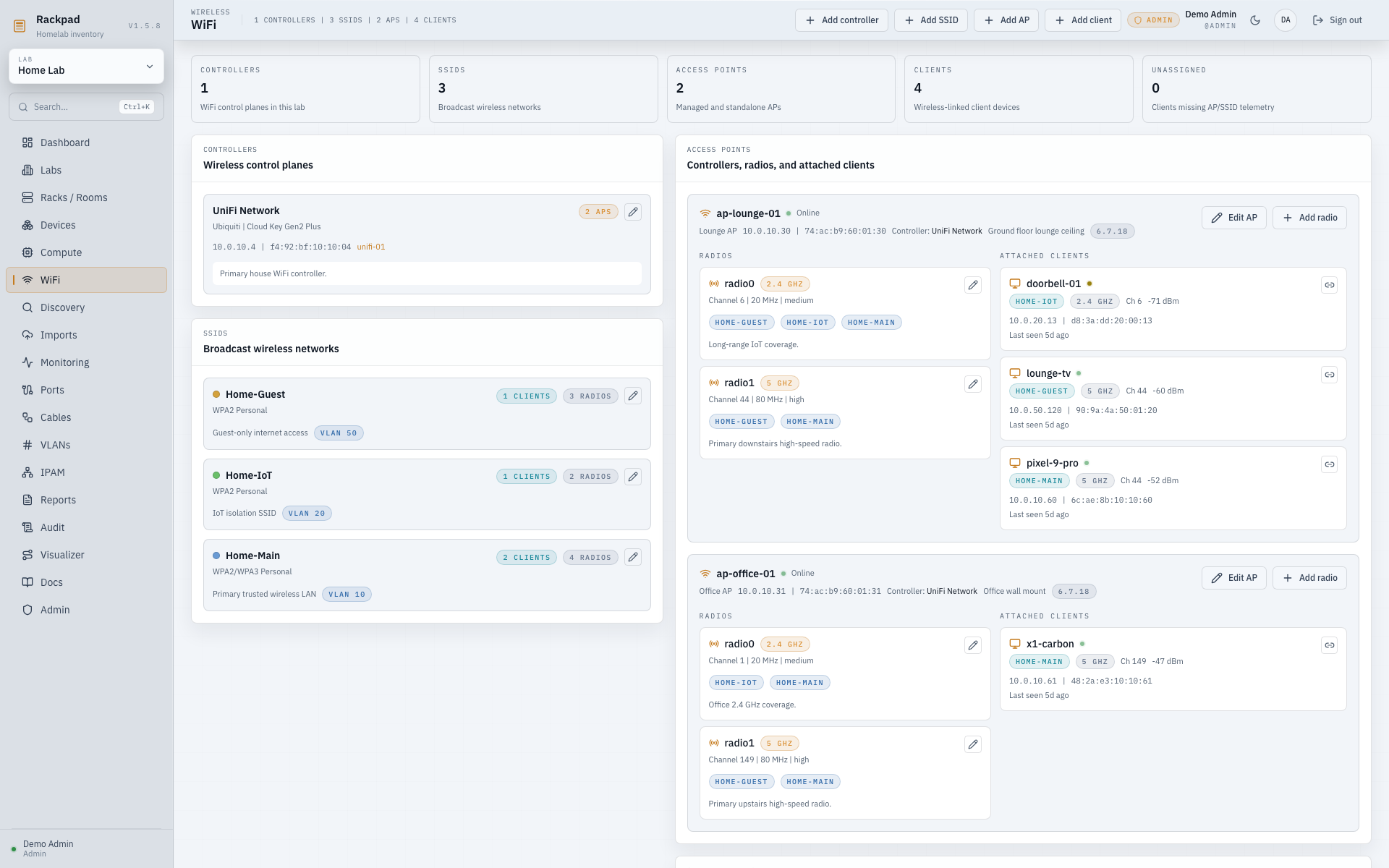

WiFi inventory

More workspace screenshots

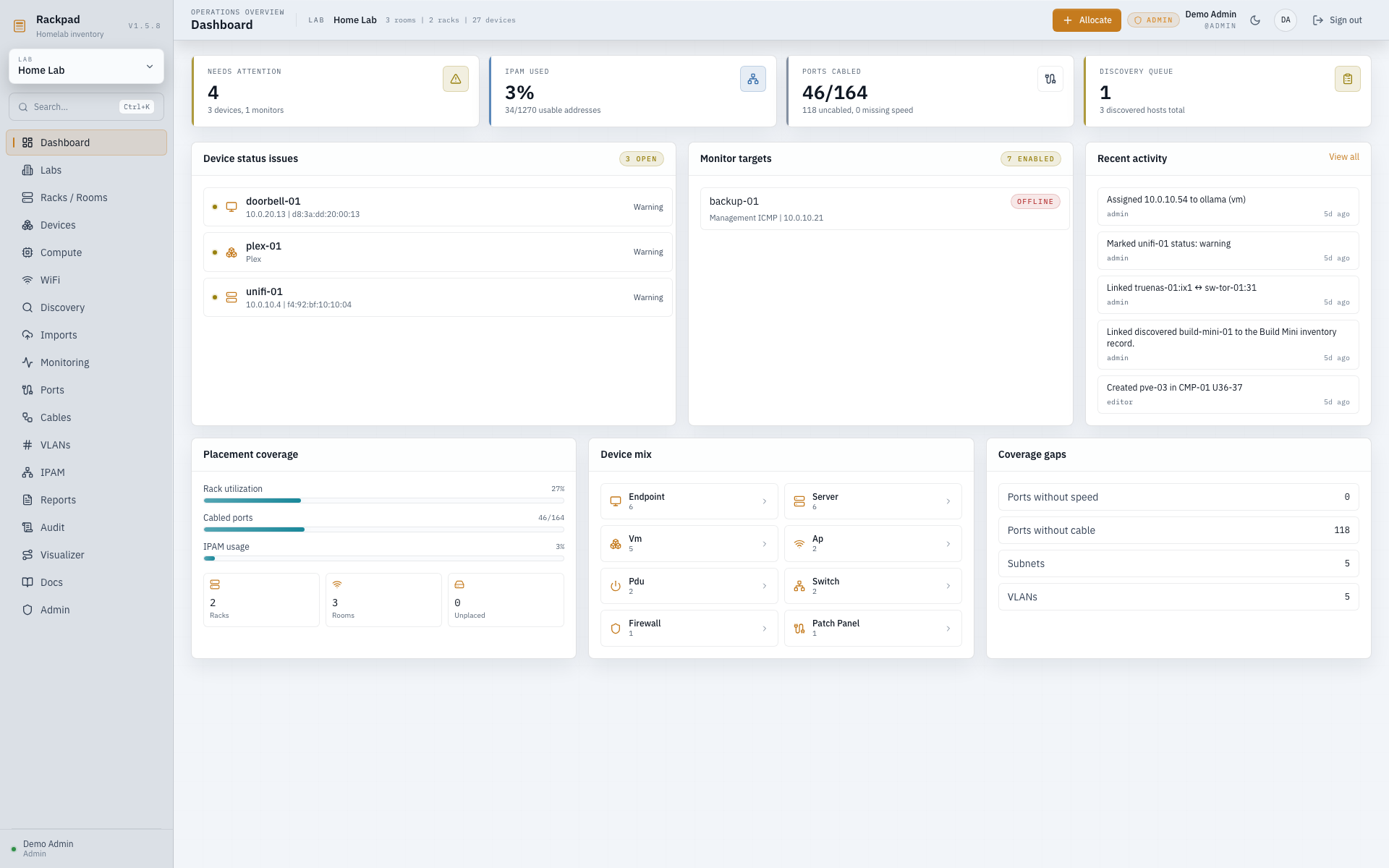

Operations dashboard (light theme)

Rackpad operations dashboard in light theme

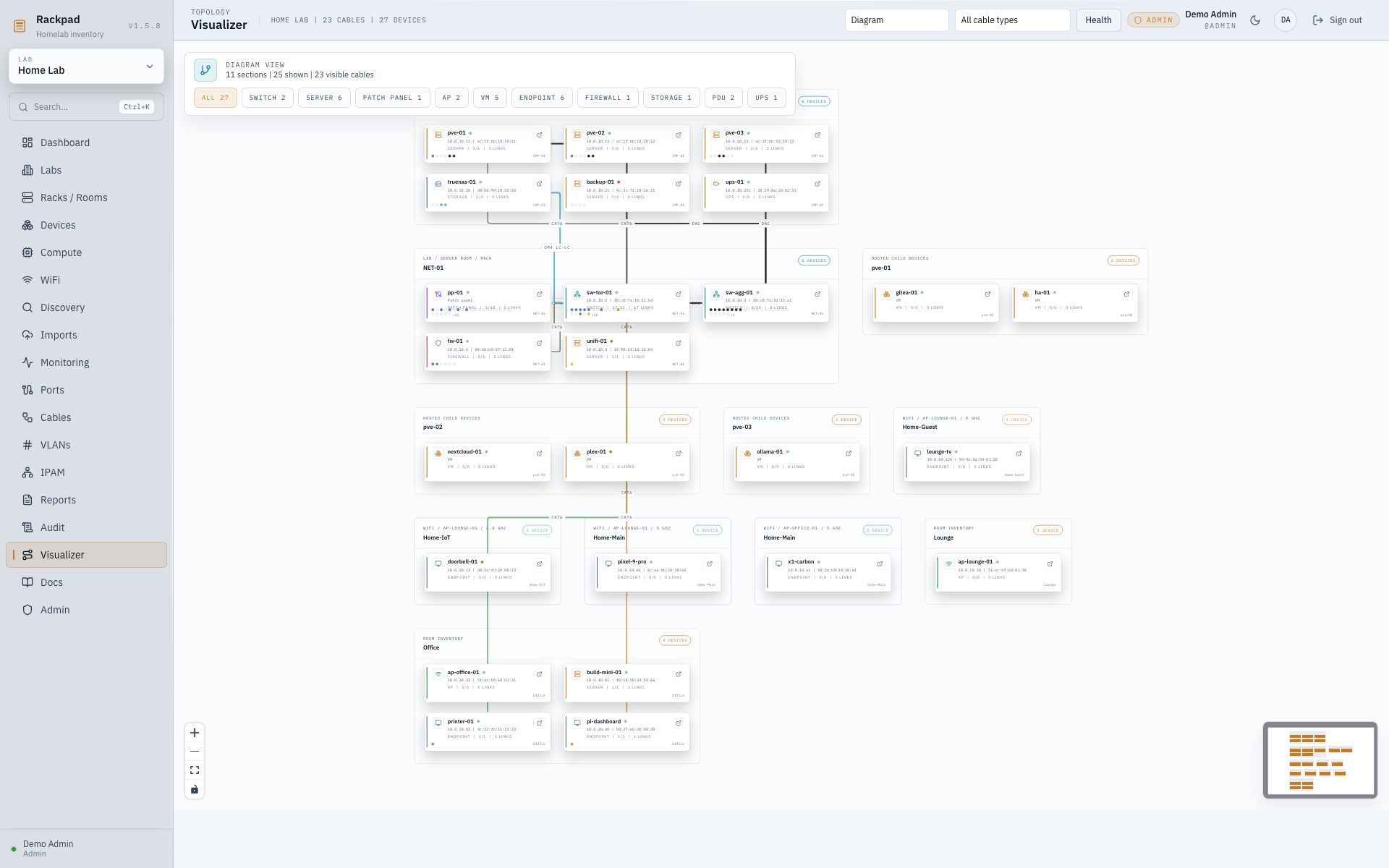

Diagram visualizer (light theme)

Rackpad React Flow diagram visualizer in light theme

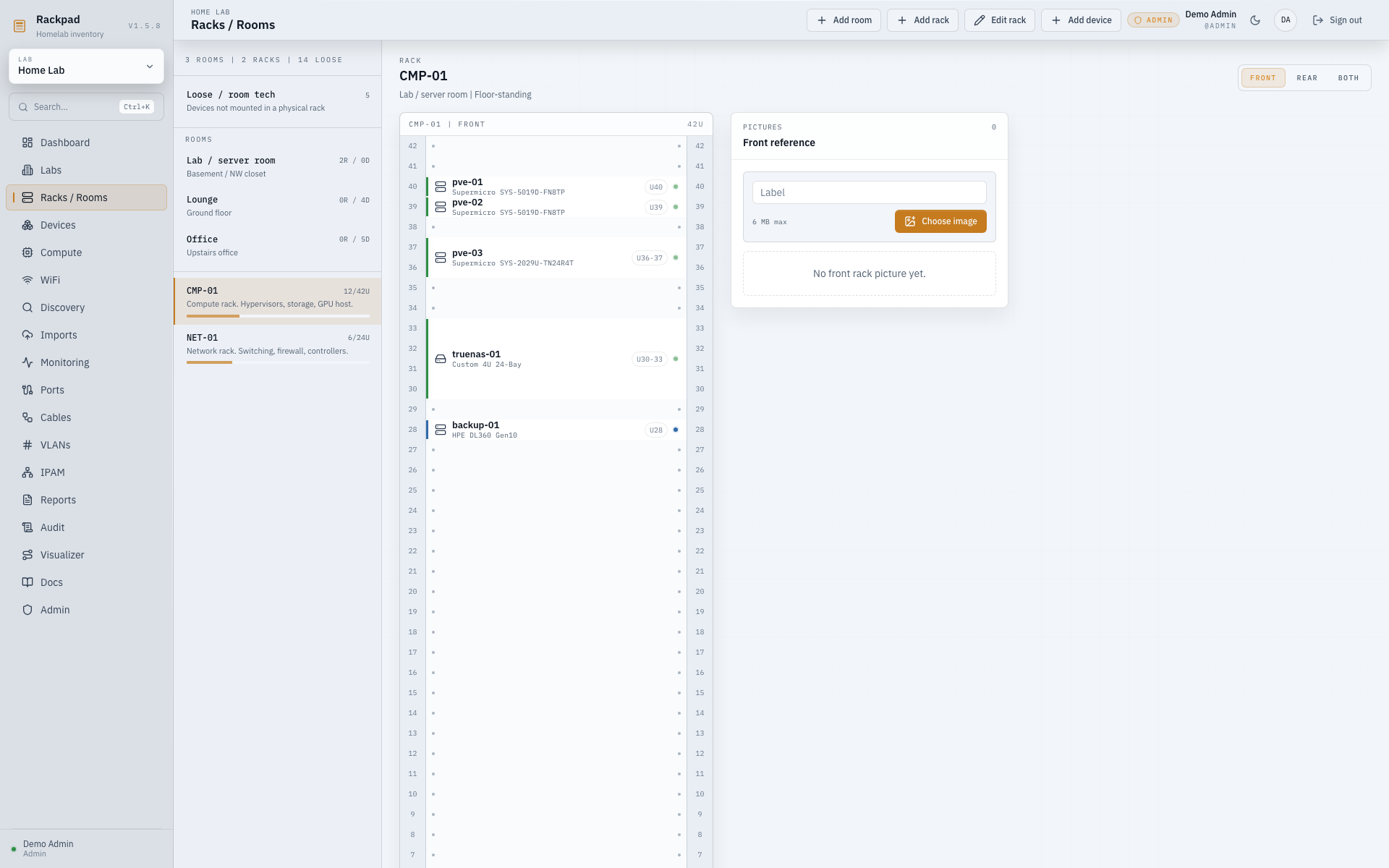

Racks and rooms

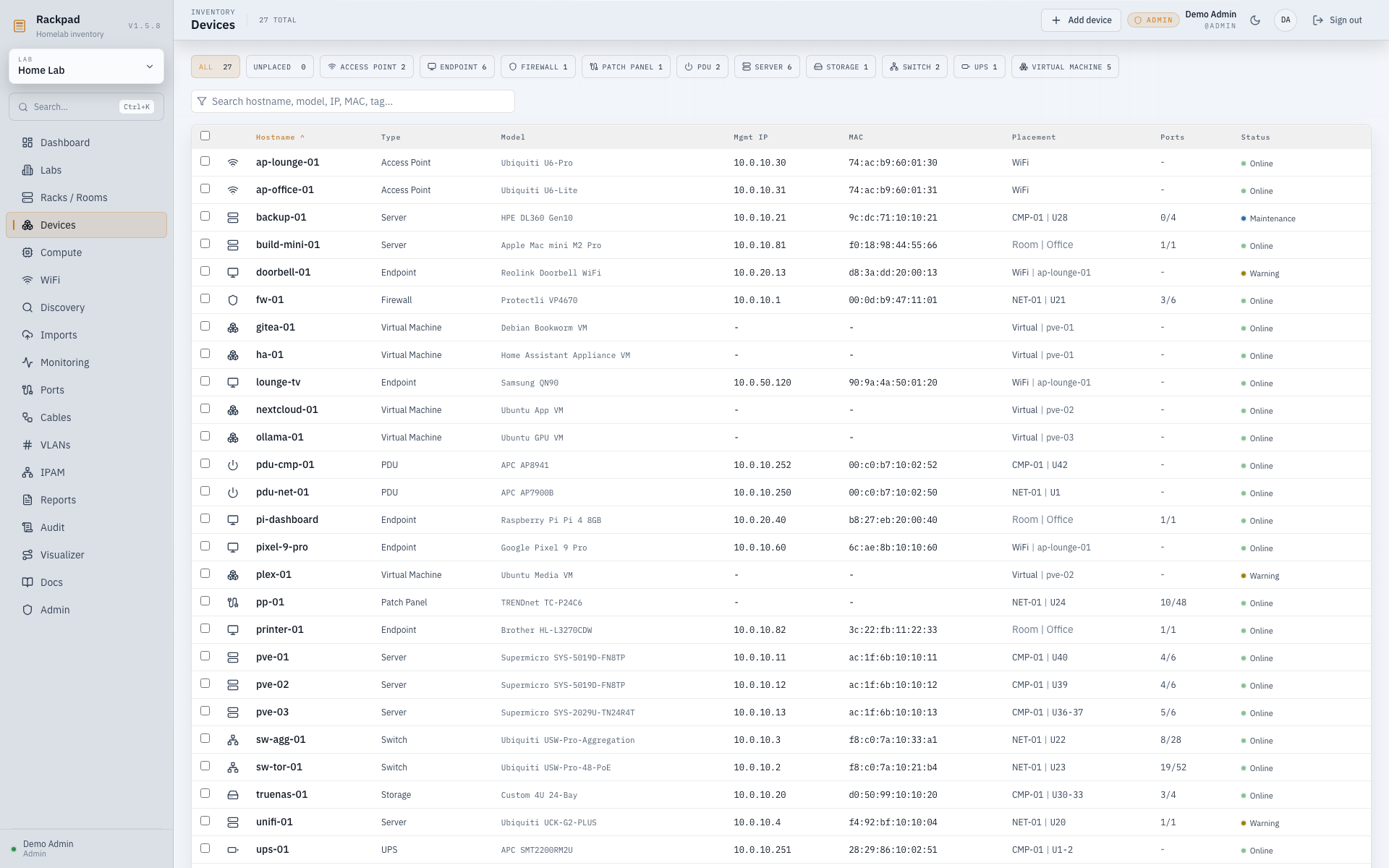

Devices

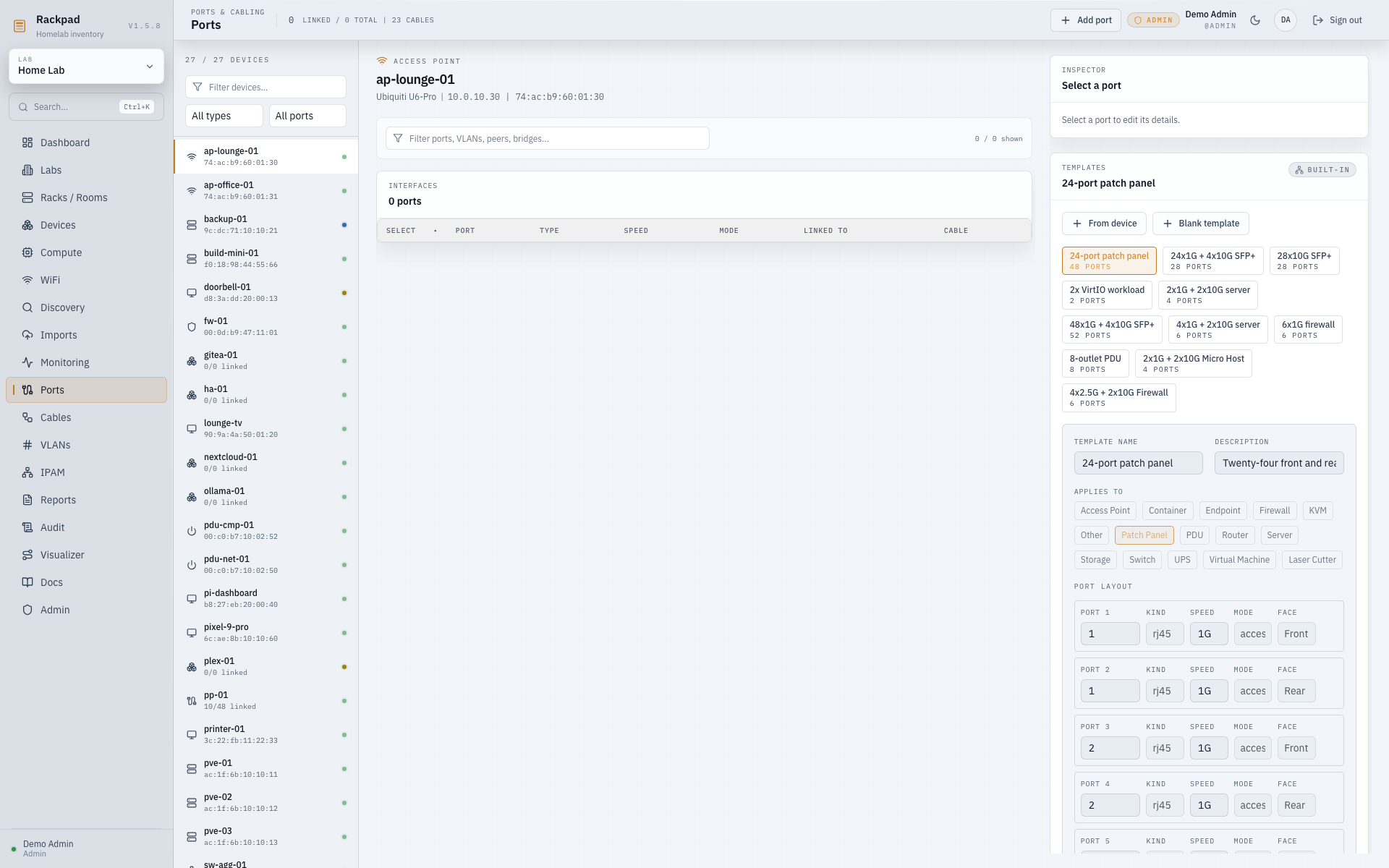

Ports

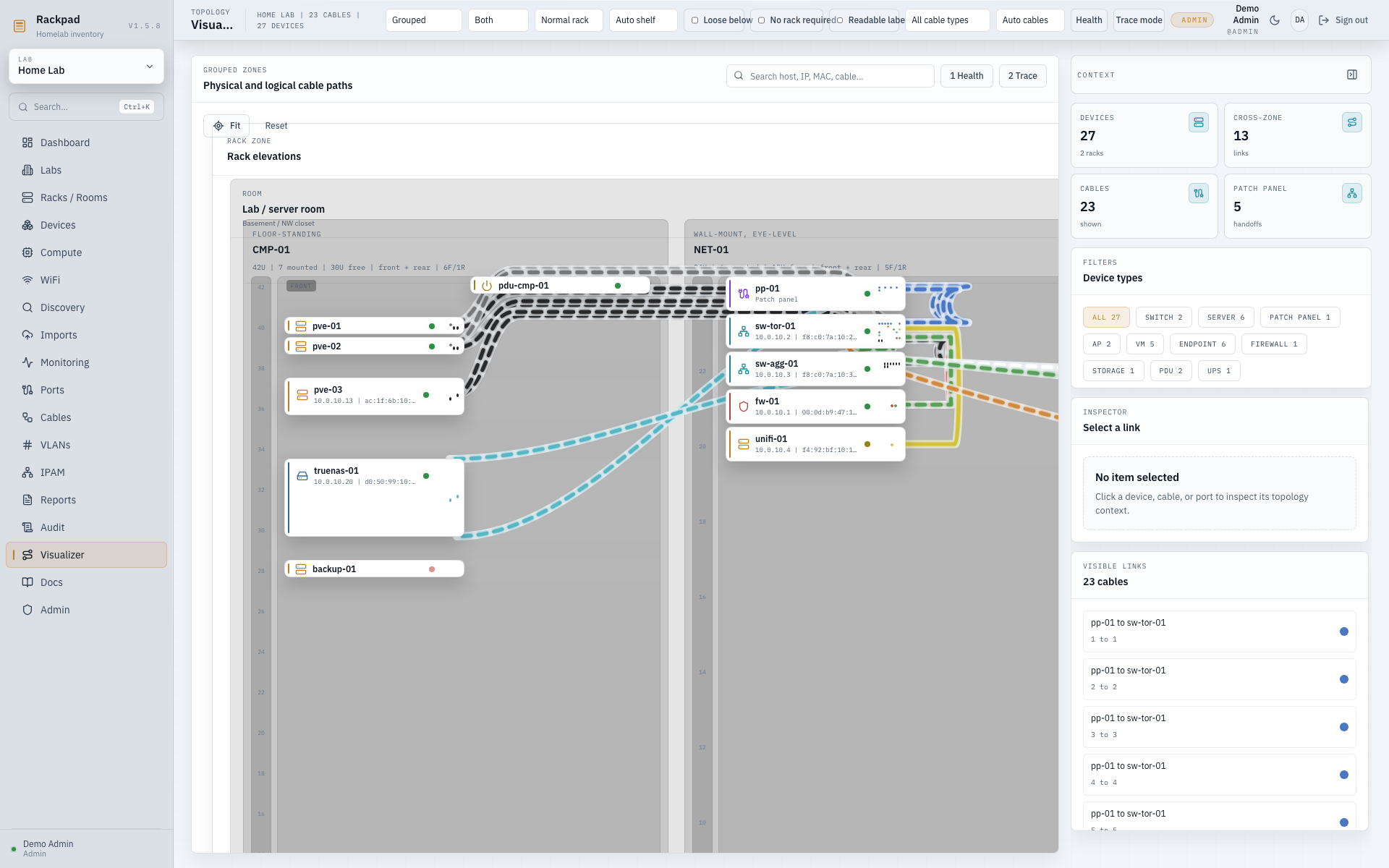

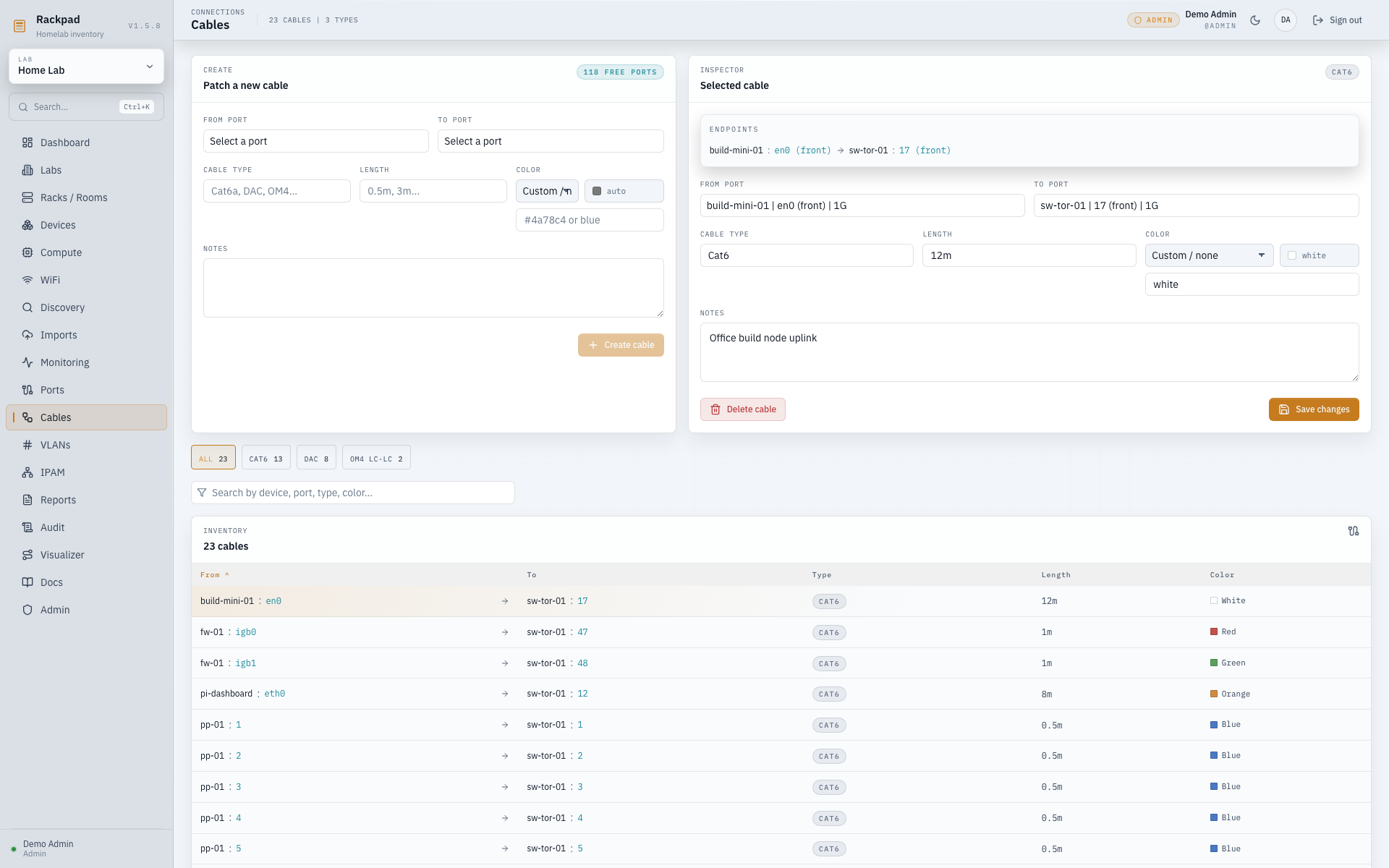

Cables

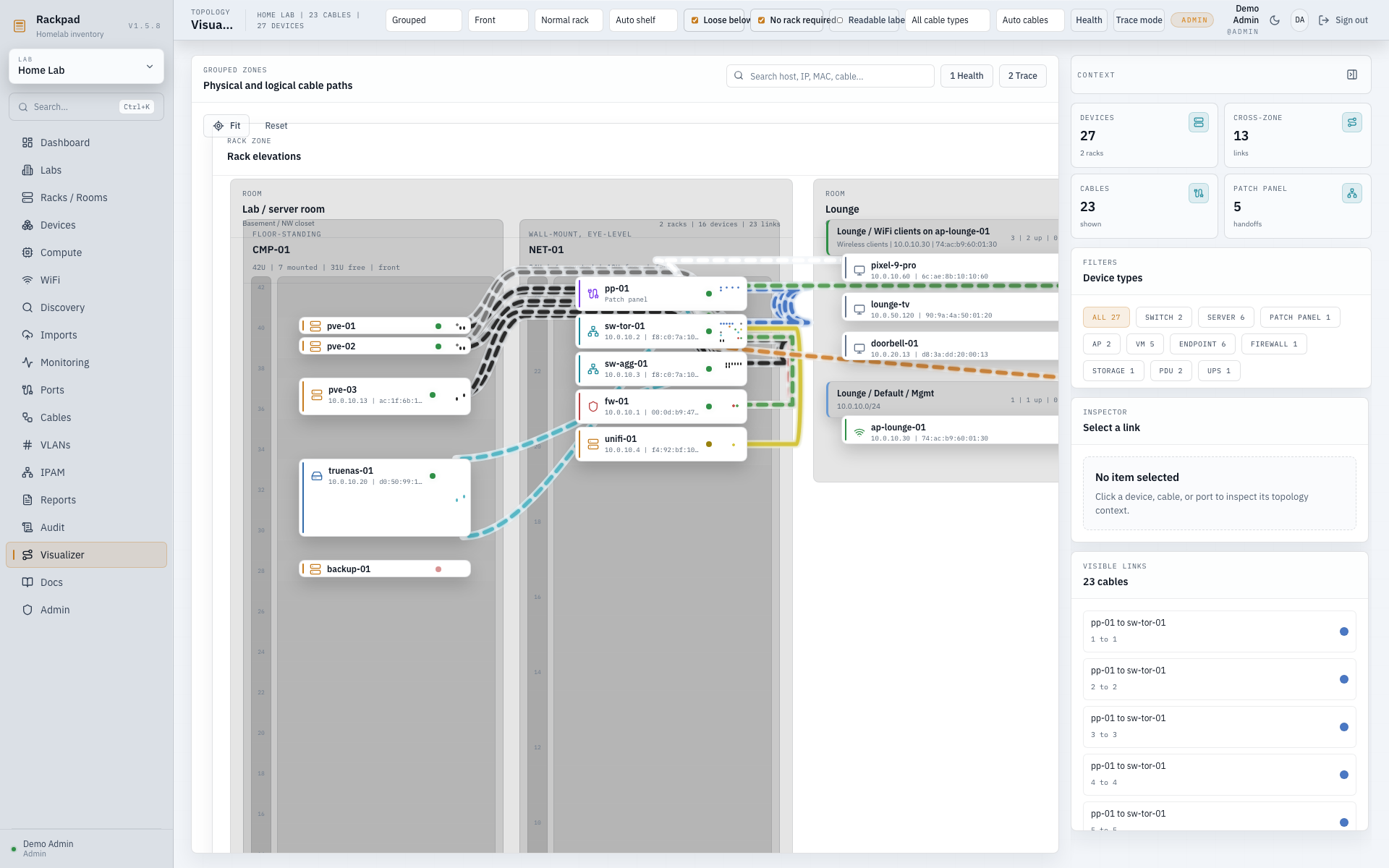

Visualizer rack layout

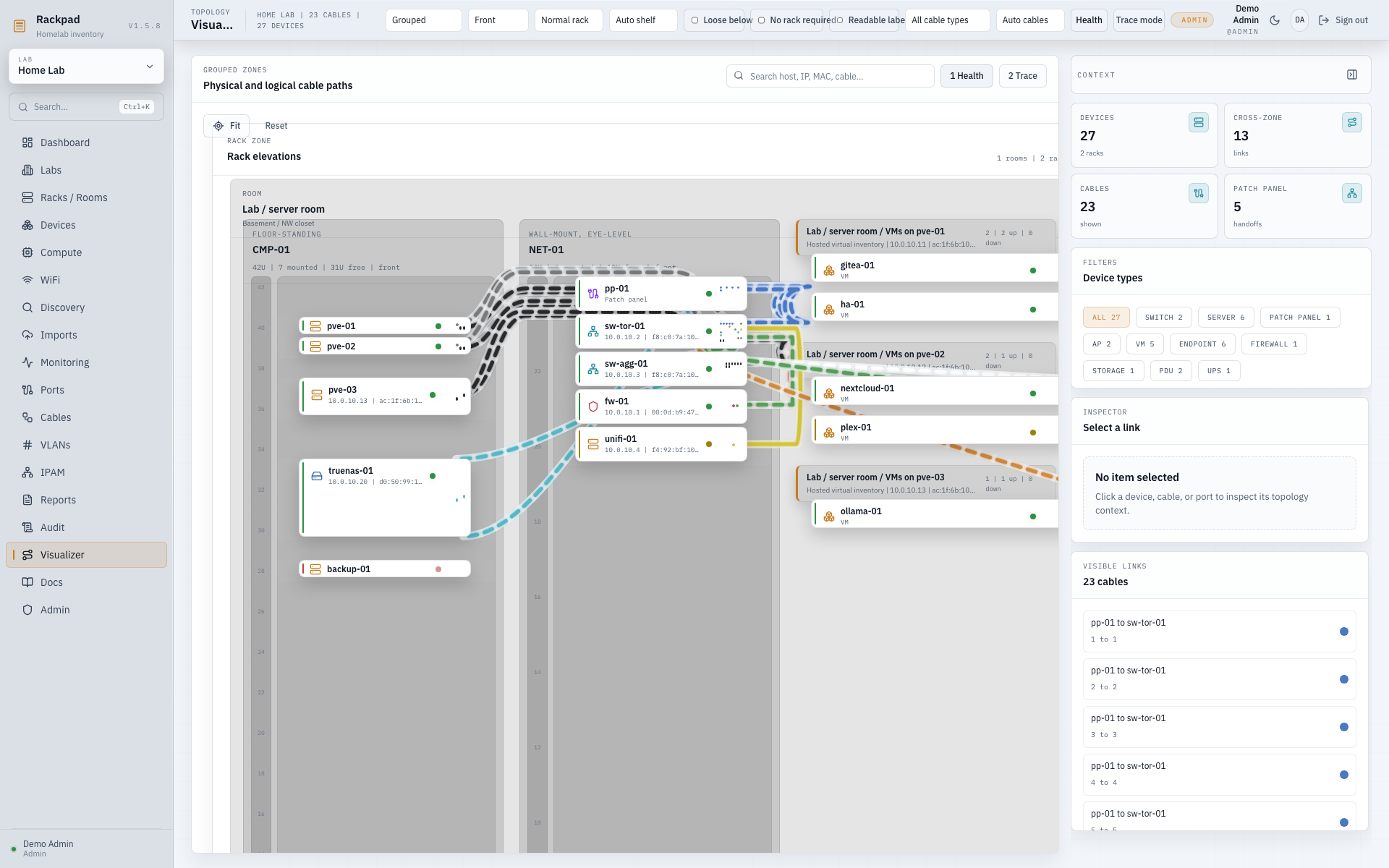

Visualizer health overlay

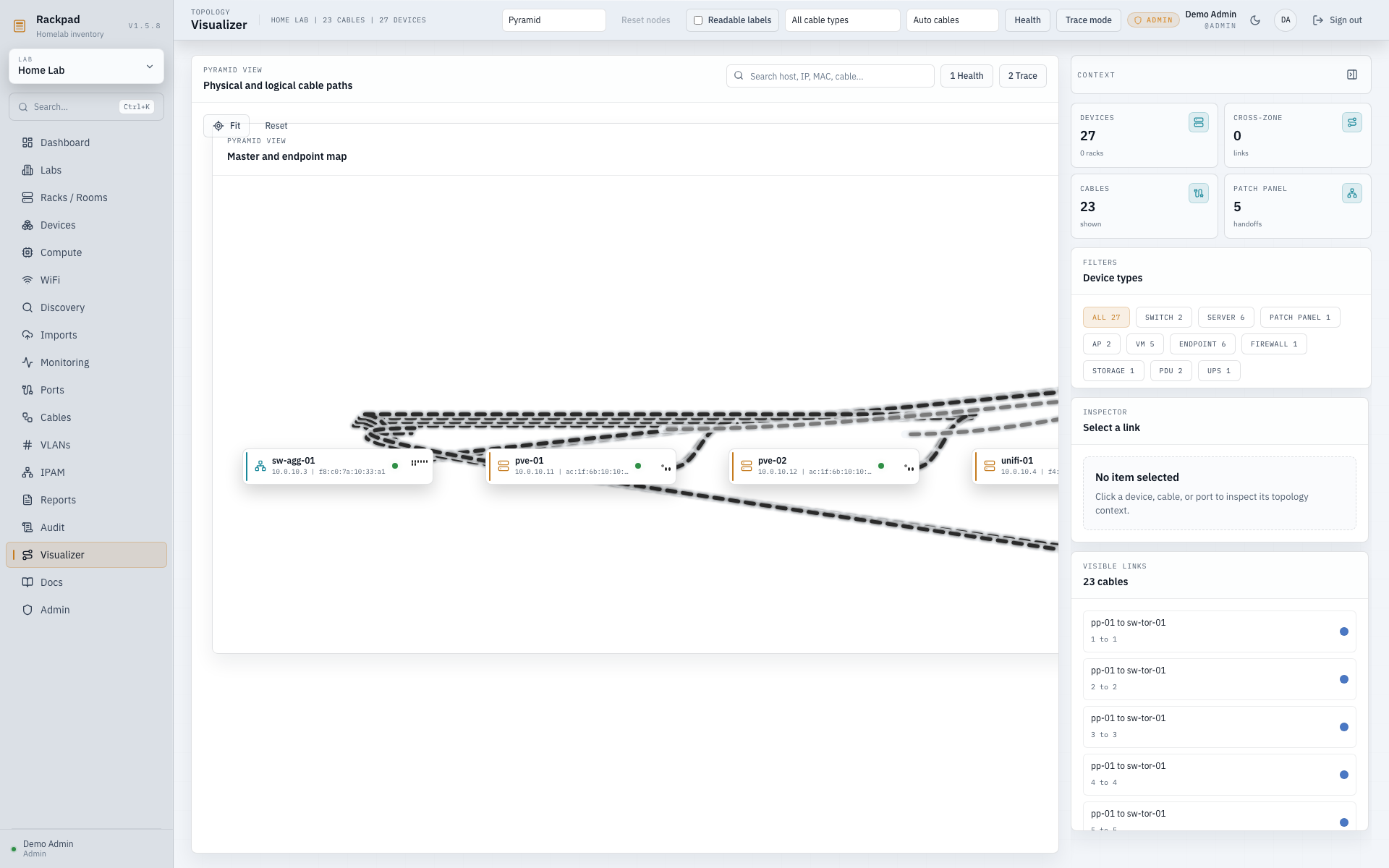

Visualizer pyramid view

Loose device layout

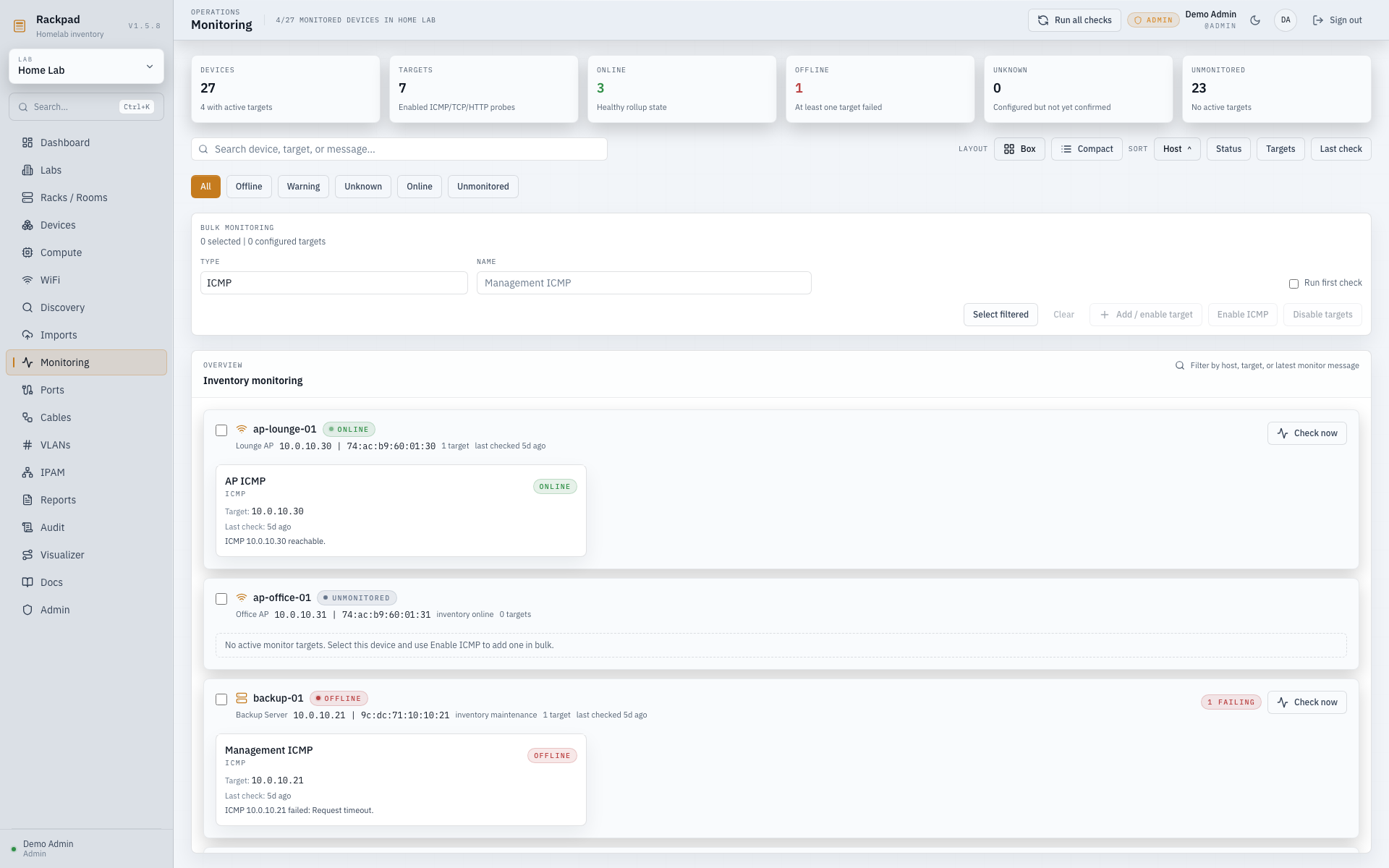

Monitoring

HTTP/HTTPS checks may target public hosts, RFC1918 LAN addresses, and IPv6 ULA addresses. Rackpad pins each DNS resolution and blocks loopback, link-local, metadata-service, multicast, and reserved destinations, including redirects.

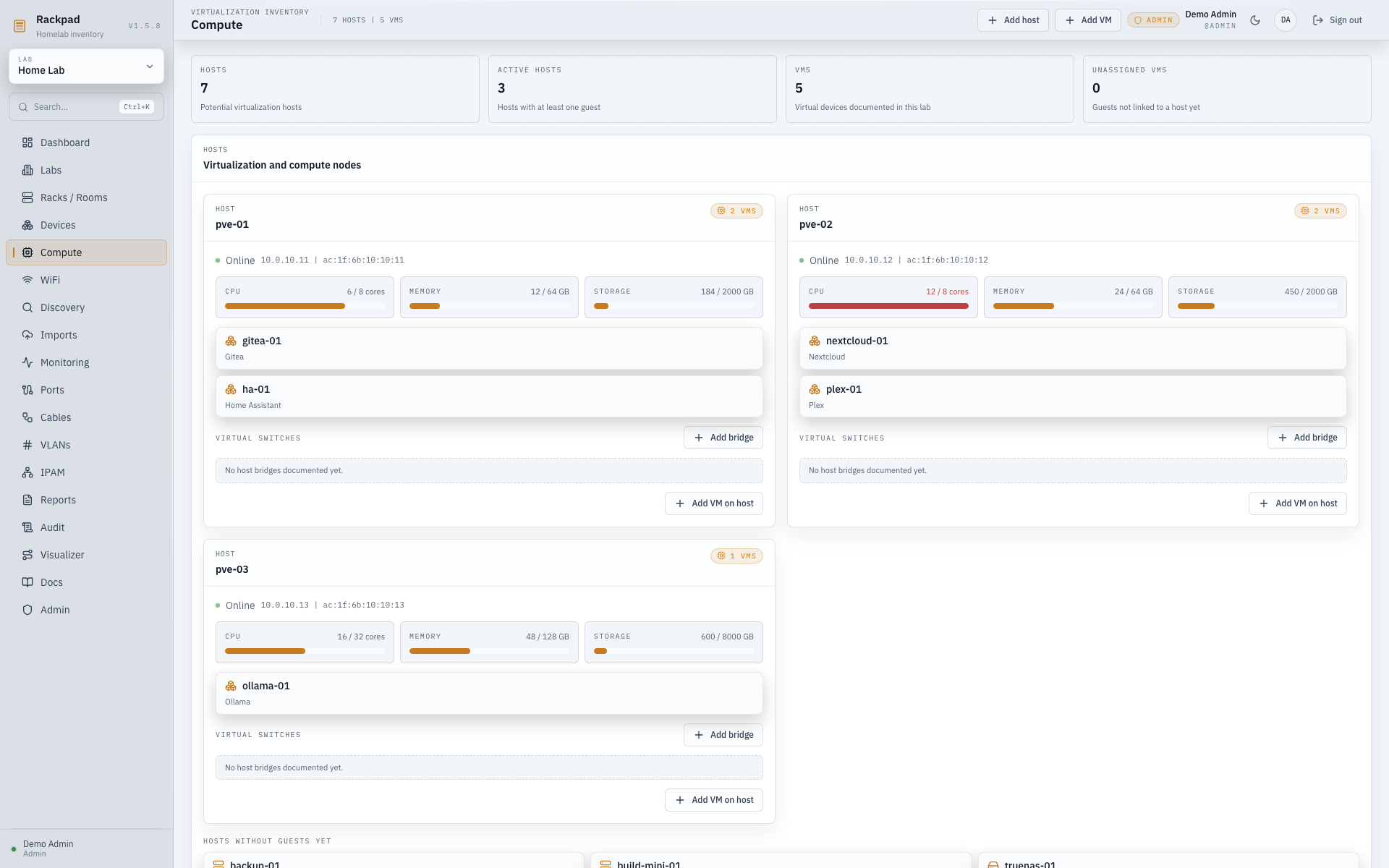

Compute

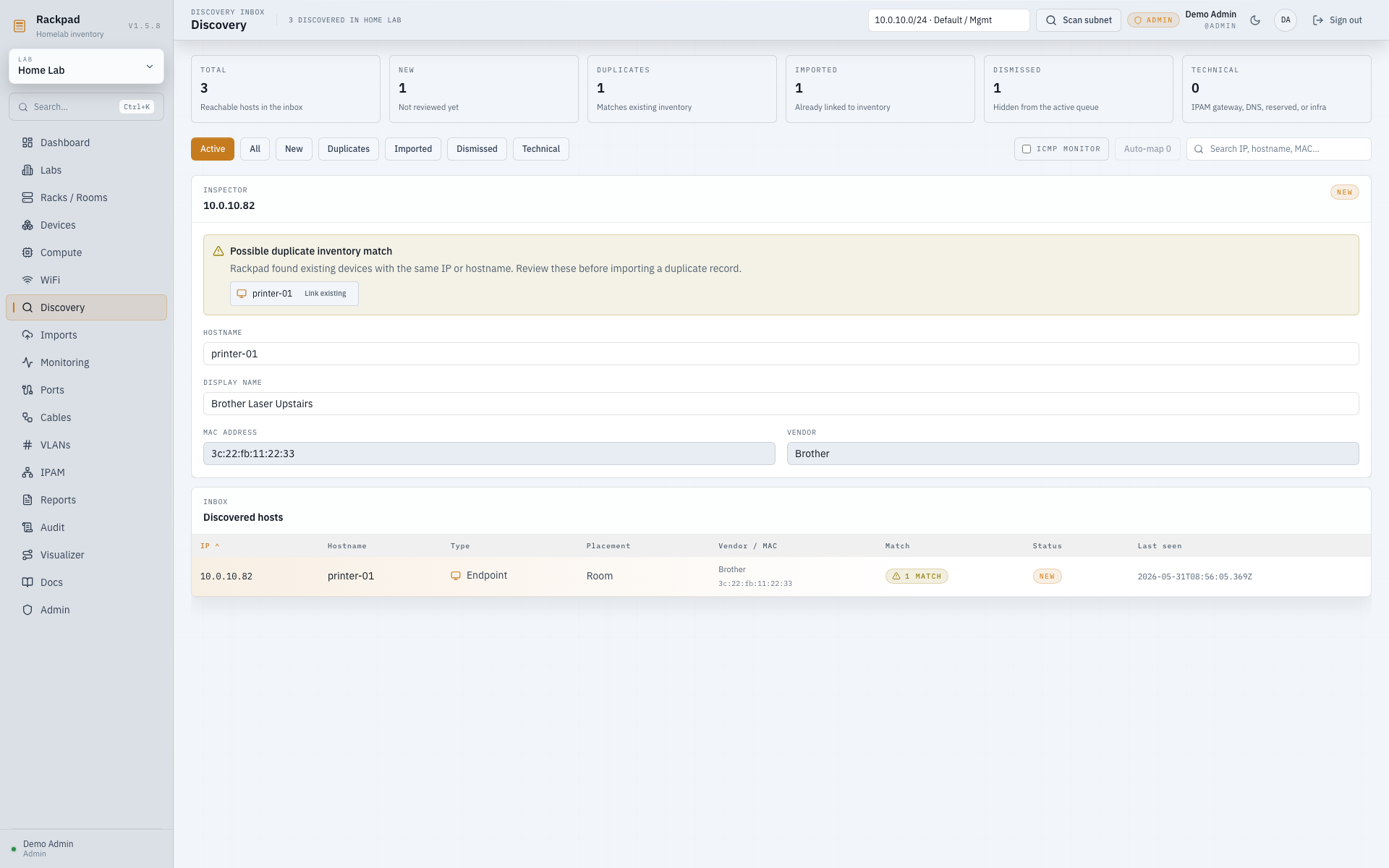

Discovery

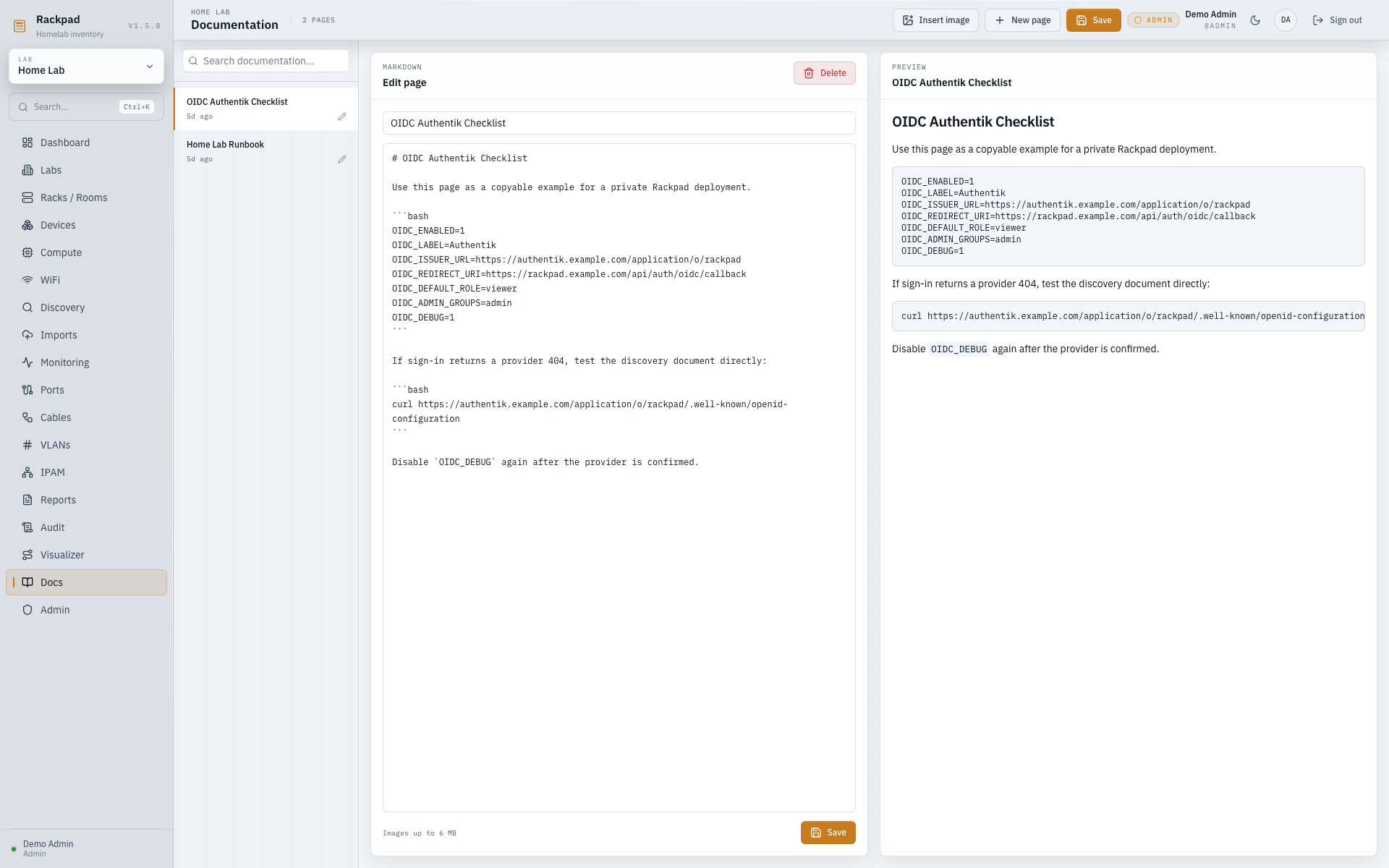

Documentation

What you can see before install

From the GitHub repo alone, you can already preview the major Rackpad workspaces:

Dashboard for inventory, health, capacity, and recent activity
Racks for physical placement, mounted gear, and room-tech context
Devices for searchable inventory and placement-aware records
Ports for switch, host, AP, VM, and patch-panel connectivity
Compute for hosts, VMs, and virtual switch / bridge membership
WiFi for controllers, SSIDs, radios, clients, and signal context
Discovery for staged imports, MAC/vendor hints, and duplicate detection
Monitoring for multi-target ICMP, TCP, HTTP, and HTTPS checks
IPAM for subnets, DHCP scopes, DHCP reservations, IP zones, and linked assignments
Documentation for Markdown notes, runbooks, and inline pictures
Imports for review-first Hyper-V and Proxmox host, VM, and container onboarding
Reports for printable/PDF, Excel-compatible, and CSV exports
Visualizer for rack, pyramid, diagram, loose-room, port, WiFi, and cable relationship maps

What works

Rack inventory and physical placement
Add, edit, and delete racks
Add, edit, and delete devices
Custom device types for inventory, discovery, icons, filters, and port templates
MAC address fields, search, sort, import, and display beside IP context
Device placement modes for rack, room, wireless, and virtual inventory
Parent-child device relationships for hosted VMs and AP-linked wireless clients
Host-shared networking for VMs and containers that intentionally reuse a parent host IP
Multiple IP assignments per device, with device-level and port/interface-level context
Compute workspace for virtualization hosts and VMs
Capacity tracking for hosts and VMs with CPU, memory, storage, and specs fields
Port templates for new devices
Manual port create, edit, and delete
WiFi port kind across device types, templates, selectors, labels, visualizer views, and reports
Create, edit, and delete cables
VLAN allocation and VLAN deletion
VLAN range create, edit, and delete
IPAM subnet, DHCP scope, DHCP reservation, and IP zone CRUD
Gateway, DNS, reserved, infrastructure, and technical IP protection during allocation, discovery, and reconcile
Controller-aware WiFi workspace for controllers, SSIDs, AP radios, and wireless clients
Wireless client telemetry with AP, SSID, band, channel, signal, last-seen, and roam context
WiFi client grouping by AP/SSID in visualizer views when association or VLAN/IPAM context is available
Discovery inbox with subnet scan, duplicate awareness, review, and import into inventory
Discovery enrichment with MAC/vendor capture, technical IP preservation, natural IP sorting, and direct linking to existing inventory
Management IP synchronization between device records and IPAM
Next-free IP allocation and IP release
DHCP reservation allocation from IP zones instead of treating the whole DHCP scope as assignable
Direct links between devices, ports, IPAM assignments, racks, rooms, dashboard cards, reports, and visualizer inspector entries
Bulk device status edits and bulk delete with dependency cleanup
Atomic bulk cable type, length, and color edits across selected inventory rows
Audit log writes for the main workflows
User bootstrap, login, logout, and user management
Optional OIDC login with PKCE, role mapping, and Authentik-style issuer/debug guidance
Admin-only JSON backup export from the users screen
Backup exports preserve password hashes, documentation pages, device images, MACs, and parent-linked devices for restore, but redact stored alert-delivery secrets before download
Device health-check configuration, alert destinations, repeat-alert controls, and on-demand monitor runs
Multiple monitor targets per device so servers, firewalls, and multi-NIC systems can track separate management, service, storage, or VIP endpoints
Bulk ICMP, TCP, HTTP, and HTTPS monitor creation from selected devices
Device service inventory for DHCP, DNS, VPN, NTP, SNMP, Syslog, HTTP/S, databases, apps, and custom services
SMTP/email alert delivery beside Discord and Telegram, plus recent alert activity in the admin area
Reports workspace with printable/PDF-friendly inventory summaries plus Excel-compatible and CSV exports
Visualizer workspace for grouped rack layout, pyramid view, and React Flow diagram mapping, with Health mode, Trace mode, multi-select filters, loose-device layout toggles, room-only rack-zone toggles, and saved diagram positions
Rack shelves with proportional child-device footprints for multi-device and multi-U shelf documentation
Markdown Documentation workspace for runbooks and notes, including inline image insertion
Device image attachments with labels and notes on device detail pages
Hyper-V import wizard for staging hosts, VMs, power state, guest OS, virtual switches, virtual NICs, VLANs, IPs, CPU, memory, and disk data from a local PowerShell export, with editable host mapping before import
Proxmox import wizard for staging nodes, Linux bridges, QEMU VMs, LXC containers, MACs, VLAN tags/trunks, guest IPs, CPU, RAM, disks, boot flags, and Proxmox metadata from a local node export
Expanded demo data with multiple labs, MAC addresses, discovery states, custom templates/device types, multi-target monitors, room tech, documentation pages, device image examples, compute, and WiFi examples
Production build of the frontend and backend
Docker packaging for the frontend + API together

Feature guides

Use these when you want the workflow steps rather than just the overview:

Hyper-V import: download the collector, collect inventory on a Hyper-V host, map or create the host record, review VMs, and import selected categories.
Proxmox import: download the collector, collect inventory on a Proxmox node, map or create the node record, review QEMU VMs and LXC containers, and import selected categories.
Reports: generate a clean inventory report, print/save to PDF, and export CSV or Excel-compatible files.
Networks/IPAM: create tagged or untagged networks, document DHCP scopes, zones, reservations, and VLAN planning ranges.
Discovery: run manual or scheduled scans, keep results review-first, and understand Docker/LXC visibility limits.
Visualizer: inspect rack, loose-room, port, and cable relationships from existing Rackpad data.
OIDC login: configure Authentik or another IdP, map roles, and debug issuer/discovery URL problems.
Documentation and images: create Markdown runbooks, insert pictures, attach device reference images, and include them in backups.

Versioning

Rackpad uses semantic versioning and Git tags in the form vX.Y.Z.

The app version lives in package.json.
Release notes live in CHANGELOG.md.
The v1.0 rollout checklist lives in V1_CHECKLIST.md.
Install and deploy examples should pin a version instead of assuming main.

Every shipped change should update the version and add a matching changelog entry describing what changed.

Release channels

Rackpad now uses two long-lived Git branches:

main: stable release branch intended for production and tagged releases
beta: pre-release testing branch for changes that should be validated before they land on main

Recommended workflow:

test new work from beta
merge validated fixes and features into main
create version tags like v1.6.7 from main

If you want the newest testing build instead of the latest stable tag:

git checkout beta
git pull origin beta

Legal and support files

The repository now also includes:

the project LICENSE
copyright and project notices in NOTICE.md
a basic disclosure policy in SECURITY.md
maintainer/support expectations in SUPPORT.md

Requirements

Docker Engine with the Compose plugin for normal installs
Node 22 LTS and npm for development or native installs

The repo includes .nvmrc, so if you use nvm:

nvm use

Development

Install dependencies:

npm install

Run the full dev stack:

npm run dev:all

This starts:

frontend on http://localhost:5173
API on http://localhost:3000

The Vite dev server proxies /api to the Fastify backend.

Production build

Build both the frontend and backend:

npm run build

Start the compiled app:

npm start

Default environment variables:

HOST=0.0.0.0
PORT=3000
DATABASE_PATH=./rackpad.db
RACKPAD_SECRET_KEY=
SNMP_TRAP_ENABLED=1
SNMP_TRAP_PORT=1162
SNMP_TRAP_BIND=0.0.0.0
SNMP_INVENTORY_SYNC=1
MONITOR_INTERVAL_MS=300000
DISCOVERY_SCAN_MAX_ACTIVE=2
DISCOVERY_SCAN_MAX_ACTIVE_PER_LAB=1
DISCOVERY_SCAN_MAX_QUEUED=32
NODE_ENV=production
TRUST_PROXY=0
TRUSTED_HOSTS=
TRUSTED_ORIGINS=
APP_URL=
OIDC_ENABLED=0
OIDC_ISSUER_URL=
OIDC_CLIENT_ID=
OIDC_CLIENT_SECRET=
OIDC_REDIRECT_URI=
OIDC_LABEL=OIDC
OIDC_DEFAULT_ROLE=viewer
OIDC_DEBUG=0
OIDC_ADMIN_USERS=
OIDC_EDITOR_USERS=
OIDC_VIEWER_USERS=
OIDC_ADMIN_GROUPS=
OIDC_EDITOR_GROUPS=
OIDC_VIEWER_GROUPS=
OUI_AUTO_UPDATE=1
DISCOVERY_MAC_SCAN_MODE=auto

OIDC uses the authorization-code flow with PKCE. Configure the provider redirect URI as APP_URL/api/auth/oidc/callback, or set OIDC_REDIRECT_URI explicitly when Rackpad is behind a proxy with a non-standard public URL. OIDC_ISSUER_URL must be the provider issuer, not the authorize URL or client settings page. Rackpad fetches OIDC_ISSUER_URL/.well-known/openid-configuration; if login returns a 502 with HTTP 404, test that exact discovery URL in a browser or with curl. For providers with per-application issuers, such as authentik, this usually means using the application/provider issuer path rather than the IdP root domain. Set OIDC_DEBUG=1 temporarily to log the discovery URL, redirect URI, token endpoint status, and JWKS URL used during sign-in.

Example Authentik configuration:

OIDC_ENABLED=1
OIDC_ISSUER_URL=https://authentik.example.com/application/o/rackpad
OIDC_CLIENT_ID=<client-id>
OIDC_CLIENT_SECRET=<client-secret>
OIDC_REDIRECT_URI=https://rackpad.example.com/api/auth/oidc/callback
OIDC_LABEL=Authentik
OIDC_DEFAULT_ROLE=viewer
OIDC_ADMIN_GROUPS=admin

In Authentik, set the redirect URI to https://rackpad.example.com/api/auth/oidc/callback and assign a signing key to the provider/application. For a single-admin private deployment you can set OIDC_DEFAULT_ROLE=admin; for shared installs, keep the default role at viewer and map admin/editor groups explicitly.

Discovery MAC/vendor enrichment needs layer-2 visibility from the Rackpad runtime. DISCOVERY_MAC_SCAN_MODE=auto tries arp-scan and nmap when the runtime can use them, then falls back to the OS neighbor/ARP cache. In Docker, MACs may remain unavailable on bridge networking, Docker Desktop, routed VLANs, VPNs, or containers without raw-socket capability; Rackpad will show scan diagnostics when that happens.

First run

On the first boot there are no users yet.

Open Rackpad in the browser.
Create the initial admin account.
Sign in.
Choose whether to start empty or preload the expanded demo environment.
Start documenting racks, devices, VLANs, and IPAM.

If a local admin password is lost in a Docker install, use the container CLI recovery command documented in INSTALL.md. OIDC users must reset passwords in the identity provider.

Install With Docker

Recommended no-clone install from the published GHCR image:

sudo apt-get update
sudo apt-get install -y curl ca-certificates
curl -fsSL https://raw.githubusercontent.com/Kobii-git/Rackpad/main/scripts/install-docker.sh | bash

Use RACKPAD_TAG=latest if you want the newest stable GHCR image, RACKPAD_TAG=1.6.7 if you want a specific release, or RACKPAD_TAG=beta if you want the newest testing image:

curl -fsSL https://raw.githubusercontent.com/Kobii-git/Rackpad/main/scripts/install-docker.sh -o /tmp/install-rackpad.sh
RACKPAD_TAG=1.6.7 bash /tmp/install-rackpad.sh

Open:

http://SERVER_IP:3000

Manual no-clone compose install:

sudo mkdir -p /opt/rackpad
cd /opt/rackpad
sudo curl -fsSLo compose.yml https://raw.githubusercontent.com/Kobii-git/Rackpad/main/docker-compose.release.yml
sudo tee .env >/dev/null <<'EOF'
RACKPAD_IMAGE=ghcr.io/kobii-git/rackpad
RACKPAD_TAG=latest
RACKPAD_PORT=3000
MONITOR_INTERVAL_MS=300000
TRUST_PROXY=0
TRUSTED_HOSTS=
TRUSTED_ORIGINS=
EOF
sudo docker compose pull
sudo docker compose up -d

If Rackpad runs in Docker on Linux or inside a Proxmox LXC and Discovery cannot see the local subnet, use the host-network discovery compose variant:

sudo curl -fsSLo compose.host-discovery.yml https://raw.githubusercontent.com/Kobii-git/Rackpad/main/docker-compose.host-discovery.yml
sudo docker compose -f compose.host-discovery.yml pull
sudo docker compose -f compose.host-discovery.yml up -d

That variant runs with host networking plus the raw-network capabilities needed by ICMP/ARP-style scans. See Docker network discovery for the security trade-offs and manual compose snippet.

Build locally from a cloned repo only if you want to build from source:

docker compose up --build -d

The compose stack:

exposes Rackpad on ${RACKPAD_PORT:-3000}
stores SQLite data in the named volume rackpad_data
serves the compiled frontend and API from the same container
runs with a read-only root filesystem except for /data and /tmp
uses /api/health for the container health check

To stop it:

docker compose down

To stop it and remove the database volume:

docker compose down -v

Full Linux, Proxmox, and Windows install details, plus update steps, backups, git-clone/source-build options, and reverse-proxy settings live in INSTALL.md.

Linux test deploy

For a simple non-Docker Linux test deploy:

npm install
npm run build
PORT=3000 HOST=0.0.0.0 DATABASE_PATH=./rackpad.db npm start

If better-sqlite3 needs to compile during npm install, install build tools first:

sudo apt-get update
sudo apt-get install -y python3 make g++

Reverse proxy / TLS

For any public-facing or VPN-exposed deployment, put Rackpad behind a TLS reverse proxy and set the trusted proxy/origin environment values.

Recommended environment shape:

TRUST_PROXY=1
TRUSTED_HOSTS=rackpad.example.com
TRUSTED_ORIGINS=https://rackpad.example.com

Example proxy files are included in:

The app already sets:

Content-Security-Policy
Strict-Transport-Security when the request arrives over HTTPS
X-Frame-Options
X-Content-Type-Options
Referrer-Policy

So the main deployment job is to terminate TLS, forward the correct X-Forwarded-* headers, and keep Rackpad reachable only through the hostname you trust.

Windows note

On this Windows machine, the app builds and lints cleanly, but the local runtime is still blocked under Node 24 because better-sqlite3 does not have a matching native binding installed.

The intended local fix is:

switch to Node 22
rerun npm install

Linux and Docker remain the preferred validation paths.

Quality checks

These are wired into the repo now:

npm run build
npm run lint
npm run test:server

npm run test:server is expected to work on Linux/Node 22 or any environment where better-sqlite3 can load successfully.

Project layout

rackpad/
|- docs/screenshots/       GitHub-friendly app screenshots
|- server/                 Fastify API, SQLite schema, seed data, routes, tests
|- src/
|  |- components/          UI and feature components
|  |- lib/                 typed API client, store, types, helpers
|  |- pages/               route-level screens
|- dist/                   built frontend
|- dist-server/            built backend
|- Dockerfile              production container build
|- docker-compose.yml      local container orchestration

Full step-by-step setup instructions are in INSTALL.md. Version-by-version release notes are in CHANGELOG.md.

Special thanks

A special thank you to @M4v3r1cK87 and @dhop90.

Rackpad has benefited hugely from their time, testing, feedback, screenshots, bug reports, and ideas. Their involvement has helped shape the project in a very real way, and I am genuinely grateful for the care they have put into helping improve it.

Thank you both for being such an important part of Rackpad's journey.

Support the project

Rackpad is free to use. If it helps you and you want to support the work, there is an optional Ko-fi link here on GitHub: ko-fi.com/k0bii. PayPal.me is also available here: paypal.me/St3wi.

rackpad
