My Home Assistant Config

I do my best to keep Home Assistant on the latest release. I'm heavily utilizing AppDaemon and NodeRed for advanced/templated automations. See Appdaemon config and my NodeRed screenshots below for details. Most of my setup runs as Docker containers (see docker-compose for container list).

My Home Assistant installation runs on a Gen7 i5 NUC with Centos 7:

Lots of Docker containers, some described below. See Docker Compose
Frigate for security camera recording and object detection
Home Assistant Companion for iOS and Android device tracking
A plethora of D1 Mini and S2 Mini, and ESP32 sensors via ESPHome. See /extras/esphome for configs

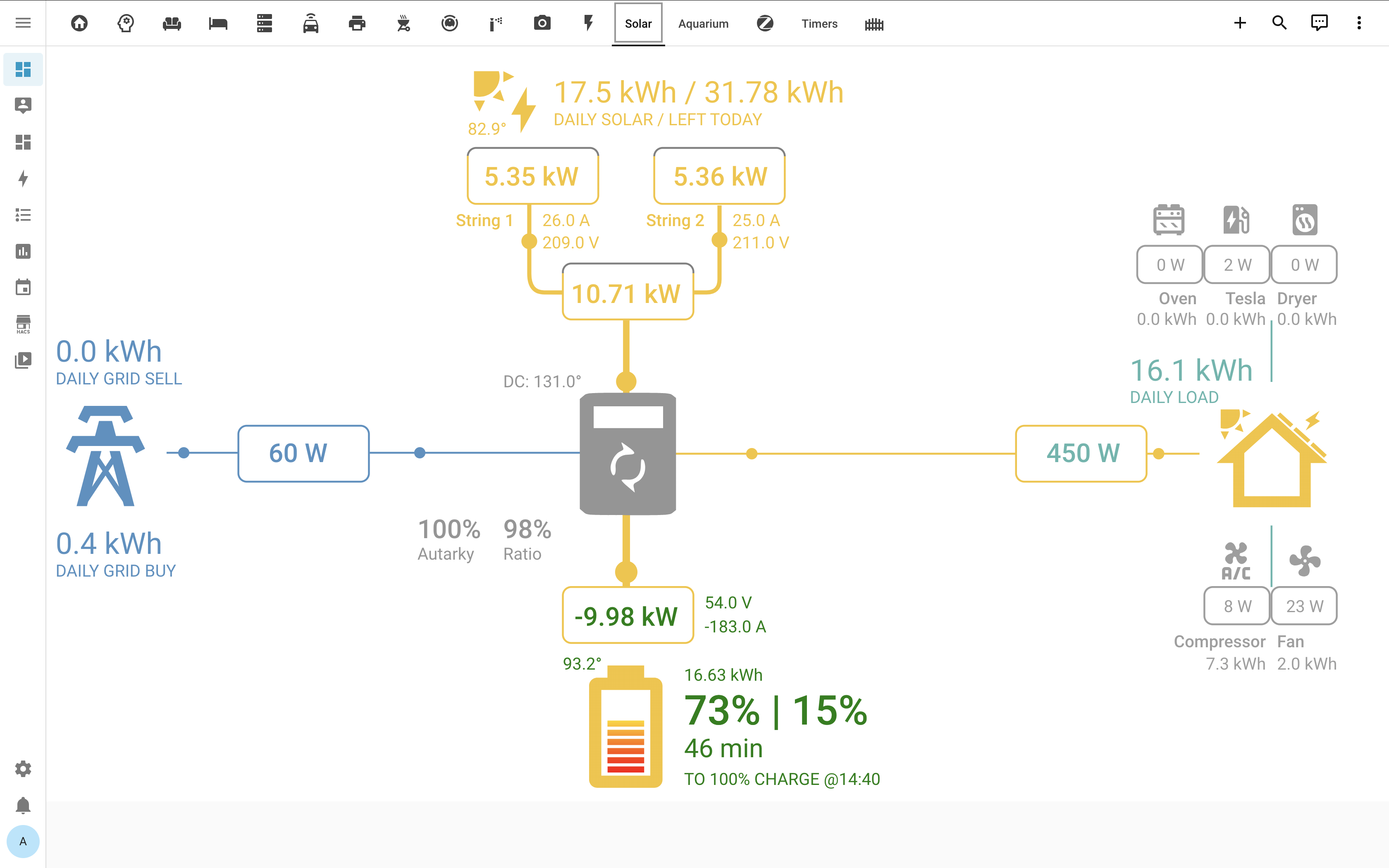

- Solar inverter monitoring and control via Modbus

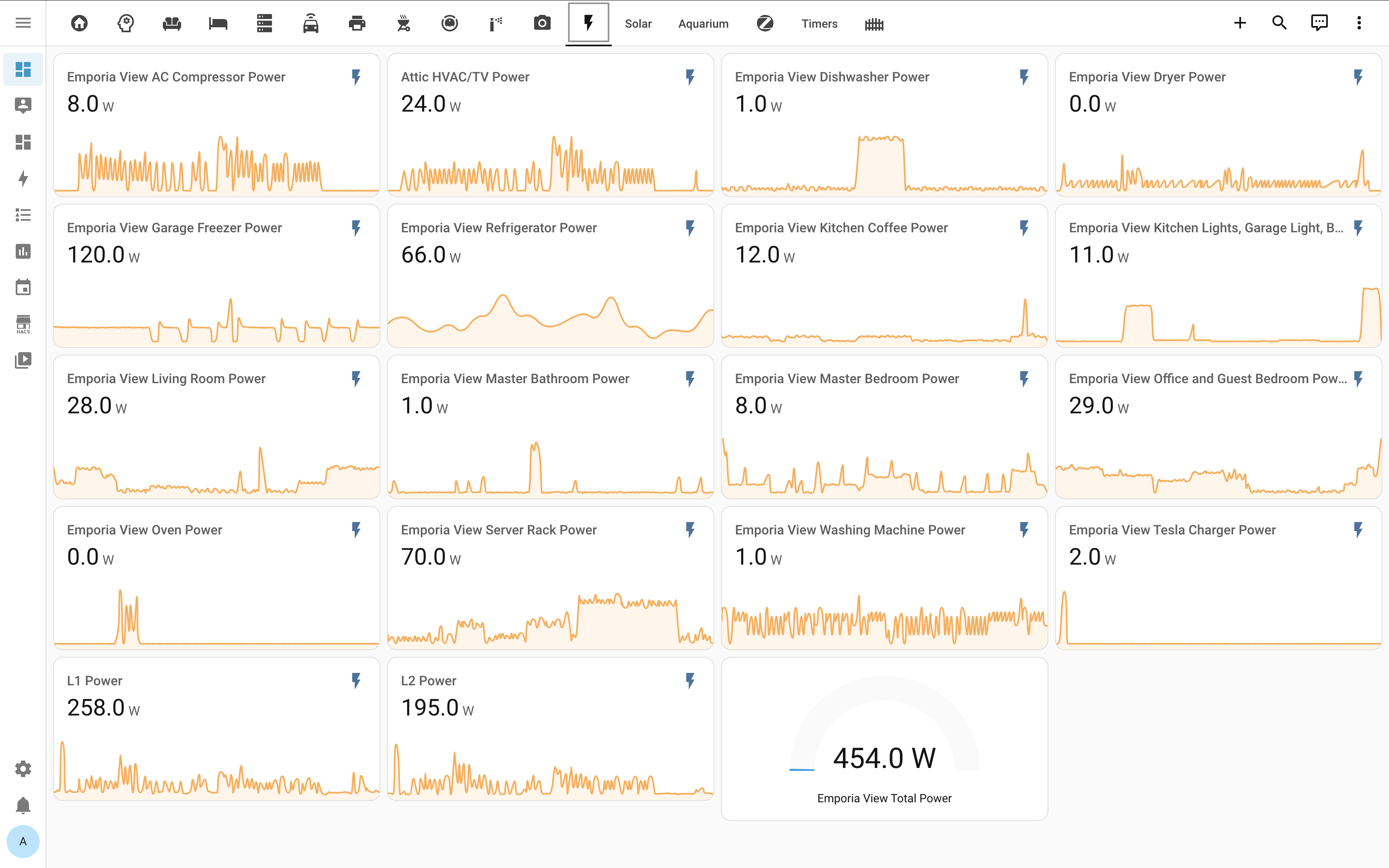

- Whole home and circuit-level power monitoring with ESPHome-flashed Emporia View
Tesla charging/vehicle commands via BLE
Zwave, Zigbee, and Wifi (ESPHome) smart plugs
ZHA using CC2531 running zigbee2mqtt firmware
Z-Wave JS using Aeon Labs USB stick with:
- 1 AEON Labs DSA03XXX-ZW
- 1 AEON Labs ZW090
- 2 First Alert (BRK Brands Inc) ZCOMBO
- 1 GE 12719 / ZW4101
- 2 GE 12720 / ZW4201
- 2 GE 12730 / ZW4002
- 1 Kwikset 910
- 1 Leviton DZPA1
- 1 Nortek Security + Control LLC WADWAZ-1
- 1 Nortek Security + Control LLC WAPIRZ-1
- 1 Zooz ZAC36
- 5 Zooz ZEN21
- 6 Zooz ZEN27
- 6 Zooz ZEN30
- 3 Zooz ZEN37 800LR
- 2 Zooz ZEN55 LR
- 5 Zooz ZEN71
- 1 Zooz ZEN77
- 5 Zooz ZSE42
- 1 Zooz ZSE50
MQTT remote and local server (via Docker)
Various MQTT Sensors (some in extras/scripts)
RTL_433 to capture data from various off-the-shelf sensors
AppDaemon controlling a large number of automations and intelligent AC control. See /extras/appdaemon for configs.

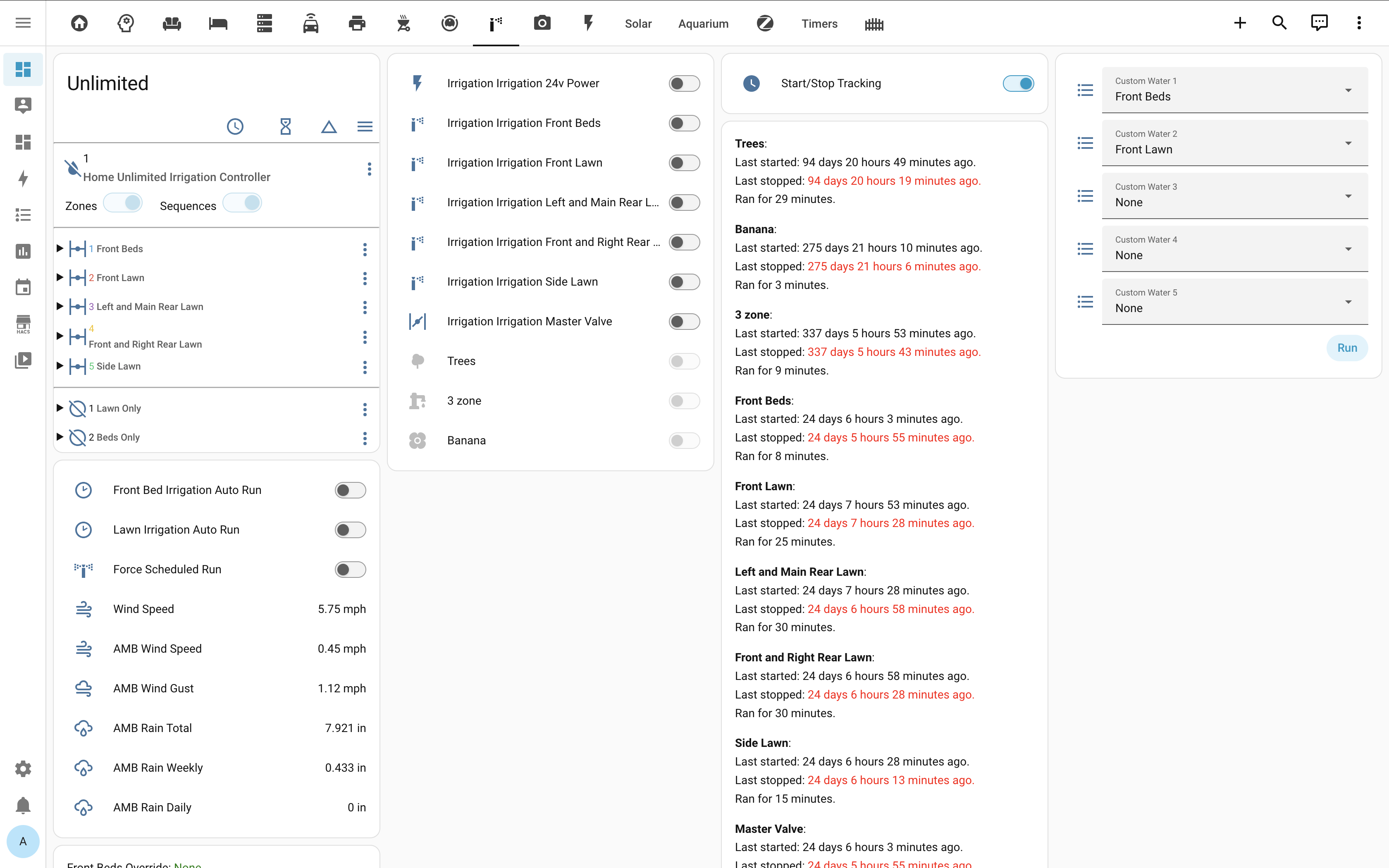

NodeRed for irrigation and other automations (see screenshot below)
Amazon Echos
- Amazon Alexa Smart Home API using AWS Lambda
- Custom routines configured in the Alexa App
- Alexa Media Player Custom Component
UPS monitoring using apcupsd
Github action to automatically test beta and stable builds against config

Home Assistant and other containers have ingress handled by Traefik and are accessible locally or fronted and secured by Cloudflare Access.

Some statistics about my installation:

Description	value
Lines of ESPHome YAML	6650
Lines of Home Assistant YAML	13459
Integrations in use	82
Zigbee devices in `zha`
Z-Wave devices in `zwave_js`	37

Description	value
Entities in the `ai_task` domain	1
Entities in the `assist_satellite` domain	1
Entities in the `automation` domain	146
Entities in the `binary_sensor` domain	204
Entities in the `button` domain	104
Entities in the `calendar` domain	1
Entities in the `camera` domain	14
Entities in the `climate` domain	1
Entities in the `conversation` domain	2
Entities in the `counter` domain	1
Entities in the `cover` domain	19
Entities in the `datetime` domain	6
Entities in the `device_tracker` domain	9
Entities in the `event` domain	17
Entities in the `fan` domain	4
Entities in the `group` domain	21
Entities in the `humidifier` domain	1
Entities in the `image` domain	8
Entities in the `input_boolean` domain	37
Entities in the `input_datetime` domain	27
Entities in the `input_number` domain	10
Entities in the `input_select` domain	20
Entities in the `input_text` domain	17
Entities in the `irrigation_unlimited` domain	1
Entities in the `light` domain	40
Entities in the `lock` domain	5
Entities in the `media_player` domain	26
Entities in the `notify` domain	7
Entities in the `number` domain	32
Entities in the `person` domain	2
Entities in the `plant` domain	1
Entities in the `remote` domain	5
Entities in the `script` domain	59
Entities in the `select` domain	23
Entities in the `sensor` domain	879
Entities in the `setter` domain	1
Entities in the `siren` domain	2
Entities in the `stt` domain	1
Entities in the `sun` domain	1
Entities in the `switch` domain	223
Entities in the `text` domain	2
Entities in the `timer` domain	6
Entities in the `tts` domain	2
Entities in the `update` domain	93
Entities in the `vacuum` domain	1
Entities in the `valve` domain	3
Entities in the `weather` domain	1
Entities in the `zone` domain	8
Total state objects	2095
