Air Draw

This example is sped up just to show functionality, real-time examples shown below:

Demo of Functionality

Setup

NOTE This setup is just for what I use (Ubuntu 20.04). While I am willing to bet this will work for windows and unix, just be safe!

Virtual environment

python3 -m venv venv

Install Dependencies

source ./venv/bin/activate

pip3 install -r requirements.txt

Run program

python3 airdraw.py

Available Gestures

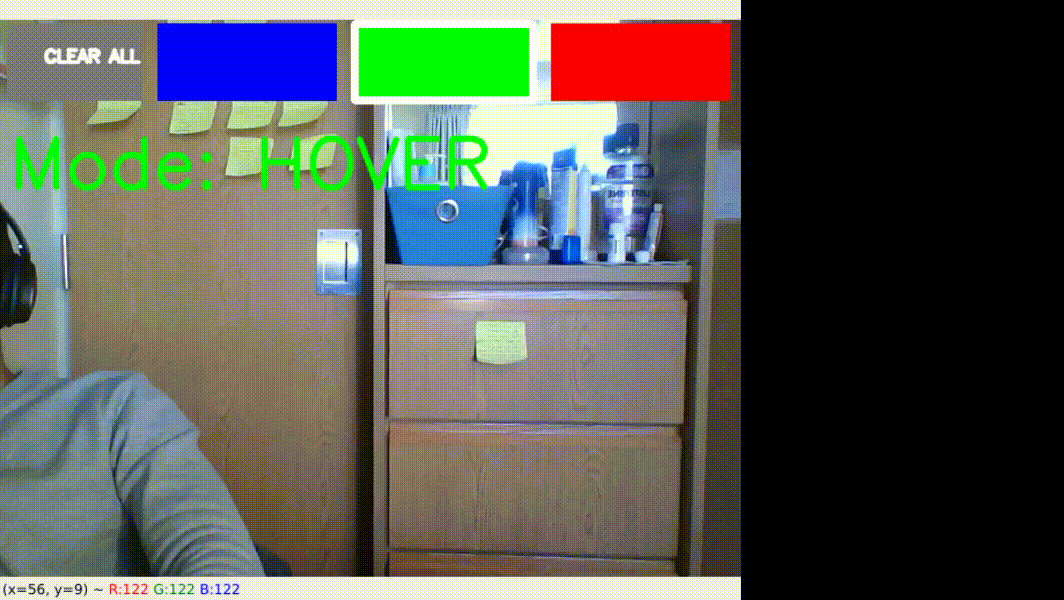

Drawing

Hovering

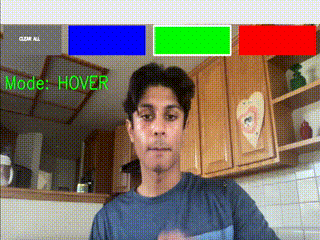

Erasing

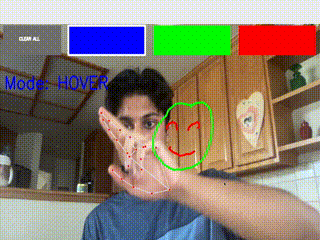

Translation

Why?

I've seen tons of attempts of this sort of thing with HSV masks and dying your fingers a certain color, and while it's more true to image processing that openCV caters for, I was sort of against letting our own styluses go to waste. Once I found out about mediapipe, I decided I would give this thing a shot! What you see is my attempt at materializing the idea, there is a more detailed writeup on my blog.

How?

Like I mentioned before, the ML workhorse here is definitely mediapipe. They've got awesome ML solutions so we can quickly gather data on the hand and use what we gather rather quickly. Other than that I pretty reliantly used OpenCV for image manipulation and NumPy for some basic dot products and because OpenCV uses numpy to represent images.

The conversion from hand data to lines / functionality is primarily done with some Python, basic linear algebra, and OpenCV. I'll leave the rest in the blog post.

What's next?

Definitely want to make this more available to everyone, so an upcoming goal will be to write this as a webapp, hopefully within the next month or so, I'll keep everyone posted :).

Thanks for reading :)
