AndrOBD

AndrOBD allows your Android device to connect to your car's on-board diagnostics system via any ELM327 compatible OBD adapter, display various information & perform operations. It is open source and completely free. The application also has a built in Demo mode that simulates live data, so you don't require an adapter to test it.

Documentation

• FAQ - Frequently asked questions

• Wiki - AndrOBD knowledge database

Install

Features

Connection types

• Bluetooth
• USB
• Wi-Fi

Functionality

• Read fault codes
• Clear fault codes
• Read/record live data
• Read freeze frame data
• Read vehicle info data

Expand features list

Additional features

• Day/Night view
• Data charts
• Dashboard
• Head up display
• Save recorded data
• Load recorded data (for analysis)
• CSV export

Customisation of PID data

• PID data items
• Data conversions

Plugin extension support

• Development: AndrOBD-Plugin repository
• Available Plugins:
  • MQTT publisher - Publish OBD data to MQTT broker
  • GpsProvider - Provide GPS data to AndrOBD
  • SensorProvider - Provide Accelerometer data to AndrOBD

Native language support

• translatable via weblate.org
  • Program dialogs
  • OBD data descriptions
  • Fault code descriptions

Screenshots

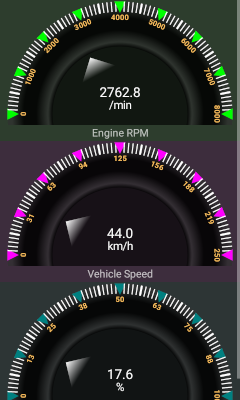

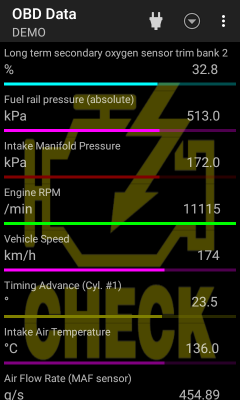

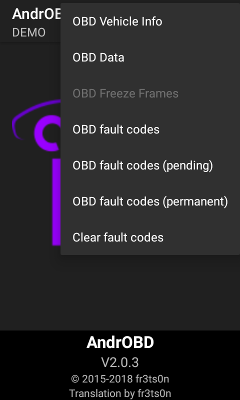

Functions	OBD data	Dashboard

More screenshots available on the Website or in the Screenshots folder

Contribute

• Report issues in the issue tracker
• Create a Pull Request
• Test the app with different devices, alpha & beta releases are posted in the Telegram AndrOBD release channel
• Contribute to development of plugin extensions: AndrOBD-Plugin repository
• Discuss the project in the Telegram or Matrix chat rooms
• Translate this app into more languages on Weblate, or have a look at Language translation section in the Wiki for more info.

Expand translation status

App dialogs:

OBD data descriptions:

Fault codes:

Plugin framework:

⚠️ Design request ⚠️

• AndrOBD is looking for help with designing and implementing of a new modern GUI (#104, #126), Java & Kotlin can be used. Contributers will be credited/linked in the Readme.
