AlumNet

AI-Powered School History Exhibition & Alumni Management System

AI 智能校史展示系统 — 校友星图

The first open-source AI-powered alumni exhibition system designed for school history museums.

Quick Start · Screenshots · Features · Architecture · Deployment · Issues · Discussions · Contributing

🌟 Highlight: AlumNet combines an immersive Three.js-powered exhibition kiosk with AI-driven natural language search (RAG), creating a museum-grade interactive experience that any school can deploy in 30 minutes with Docker.

💡 What is AlumNet?

AlumNet is a full-stack open-source system purpose-built for school history museums and alumni associations. It provides:

🖥️ A touch-screen kiosk with sci-fi visual effects — alumni galaxies, time corridors, vintage museums
🤖 AI-powered natural language search — ask "哪些校友在医疗领域工作？" and get intelligent answers via RAG
⚙️ A complete admin dashboard — manage alumni data, photos, messages, donations, and more
🐳 One-command Docker deployment — production-ready out of the box

Built for schools, museums, and education developers. Deploy it for your alma mater today.

📸 Screenshots

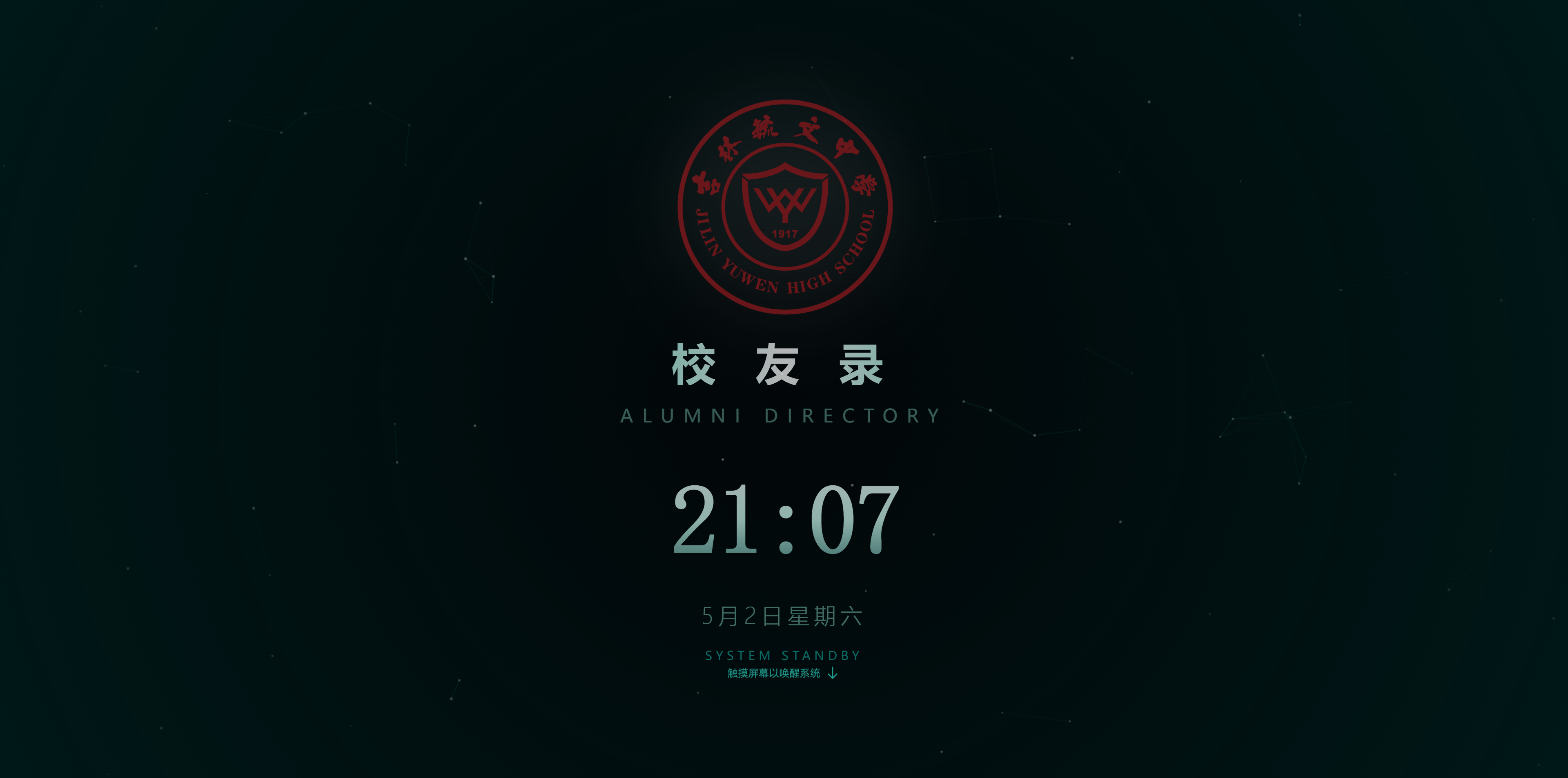

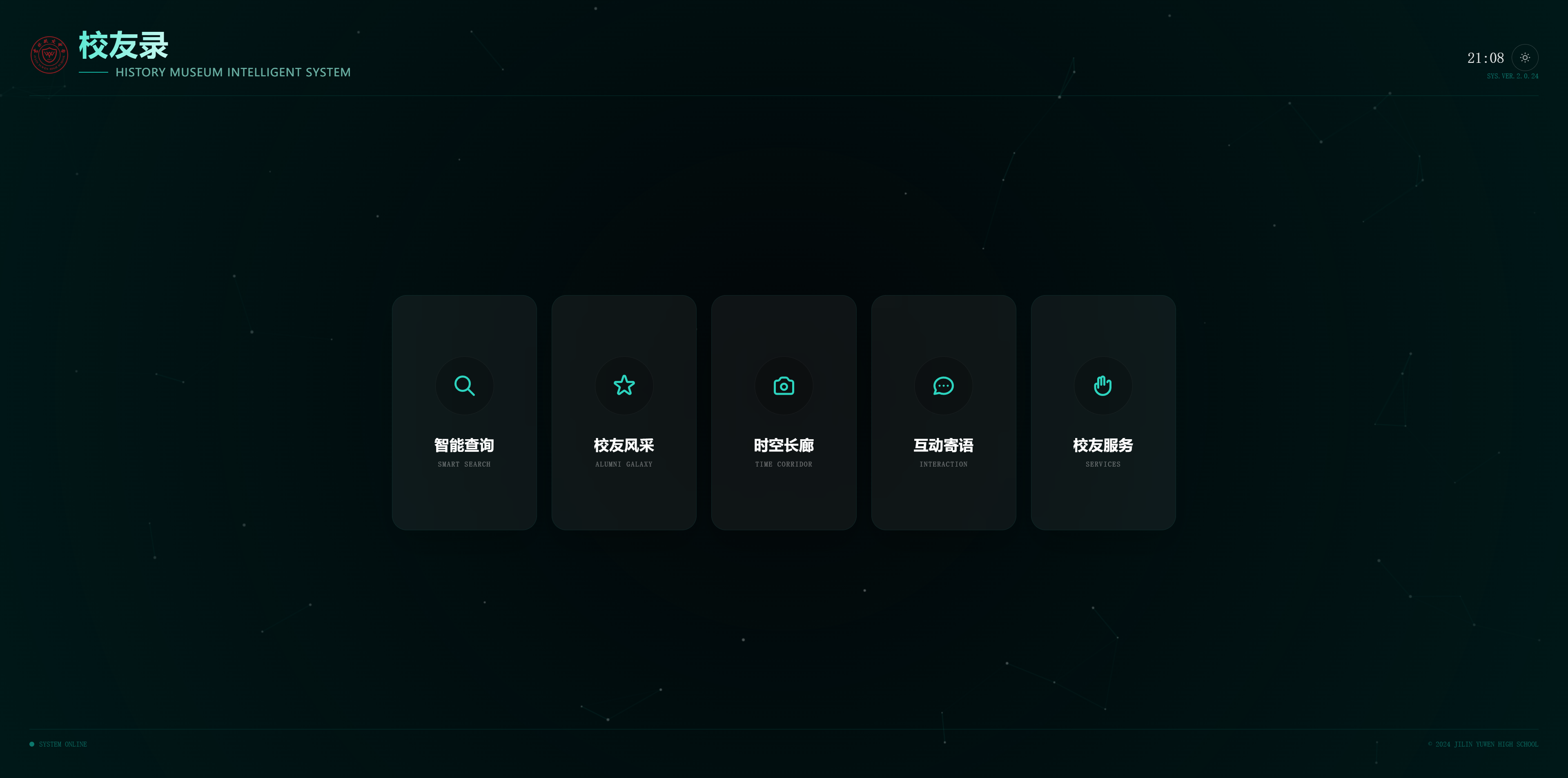

✨ Standby Screen _{Sci-fi style kiosk standby with real-time clock}	🧭 Main Navigation _{Five core modules with dark futuristic UI}

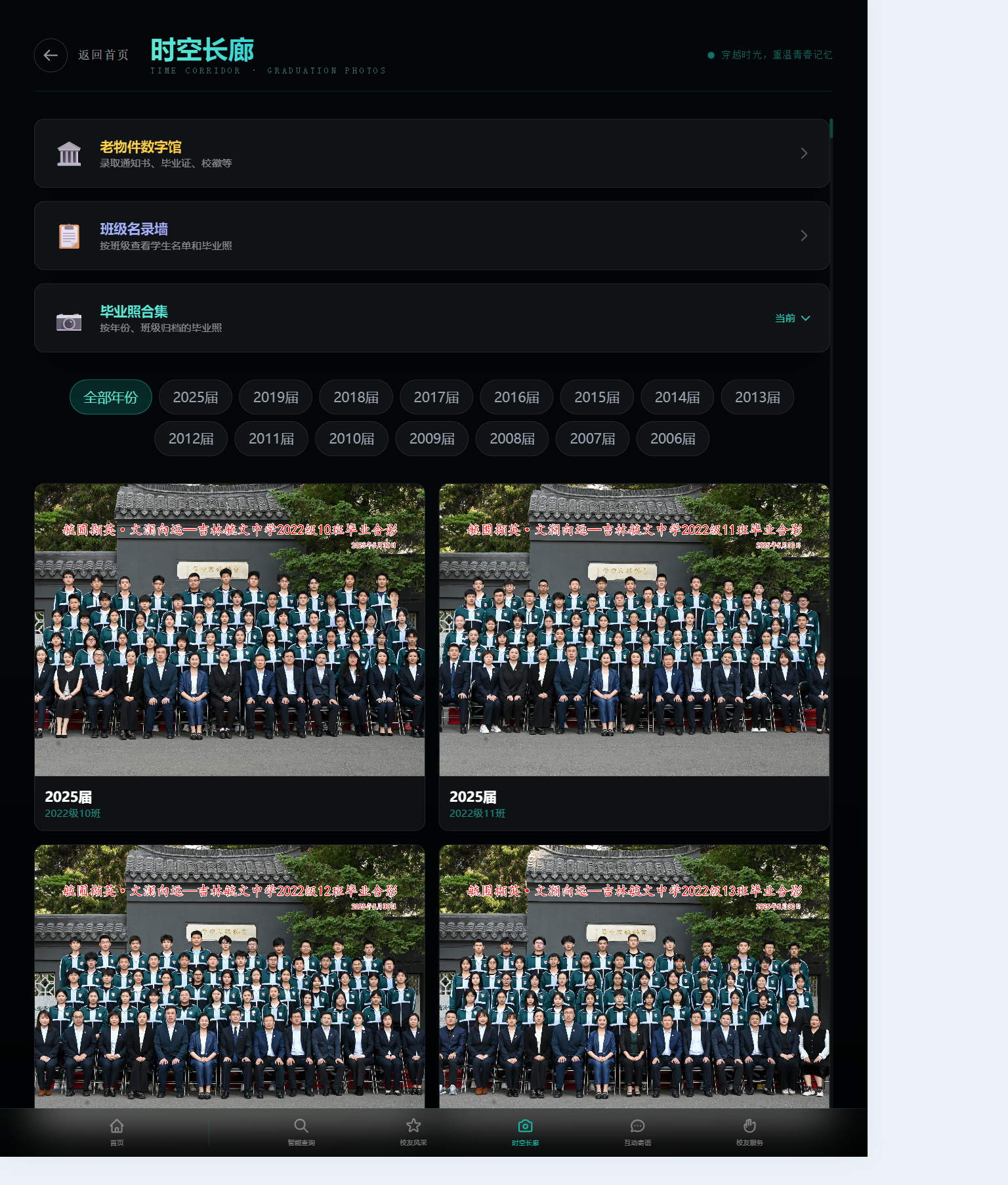

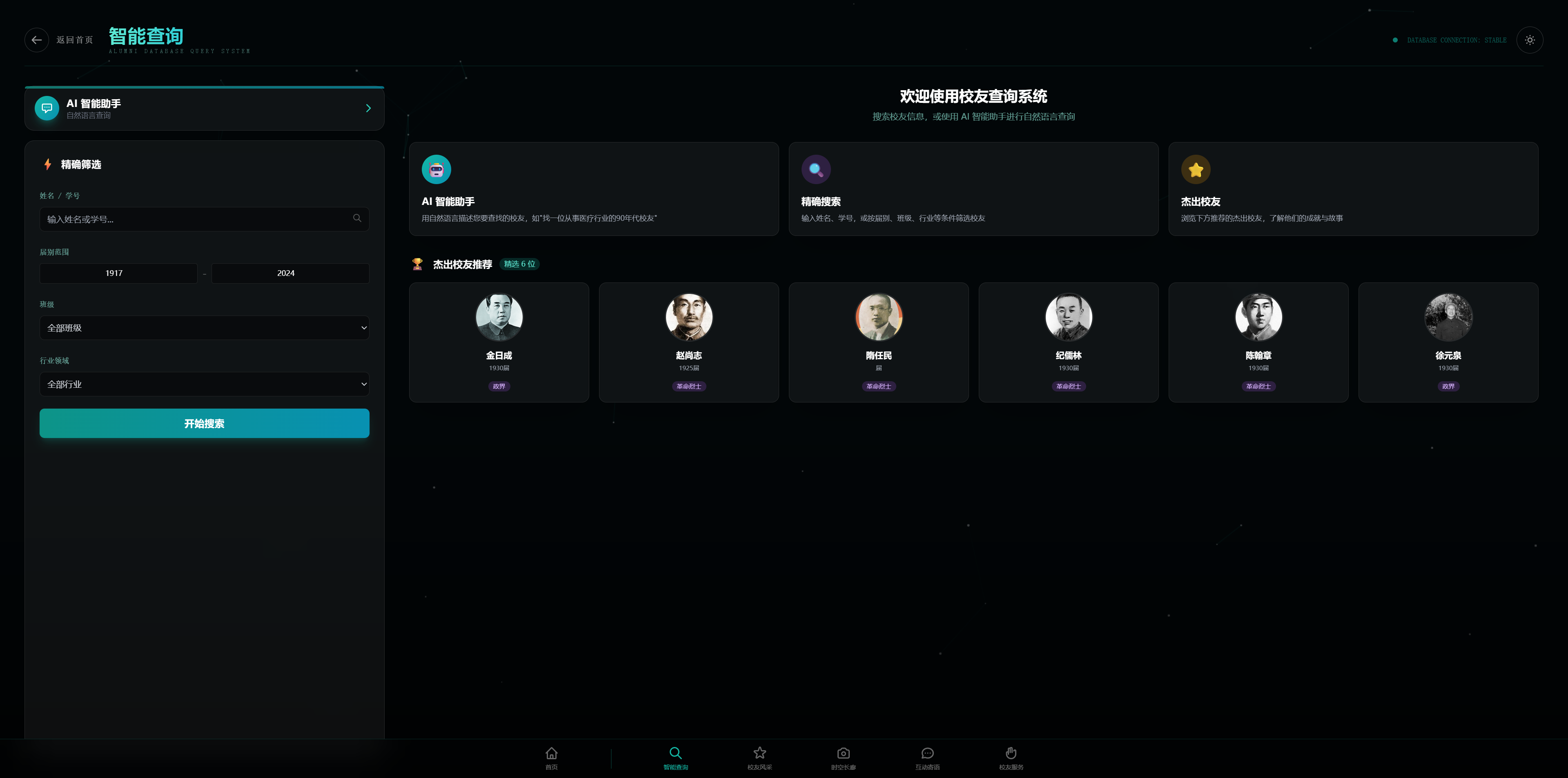

🤖 AI Smart Search _{Natural language query powered by RAG}	⏳ Time Corridor _{Chronological photo gallery by graduation year}

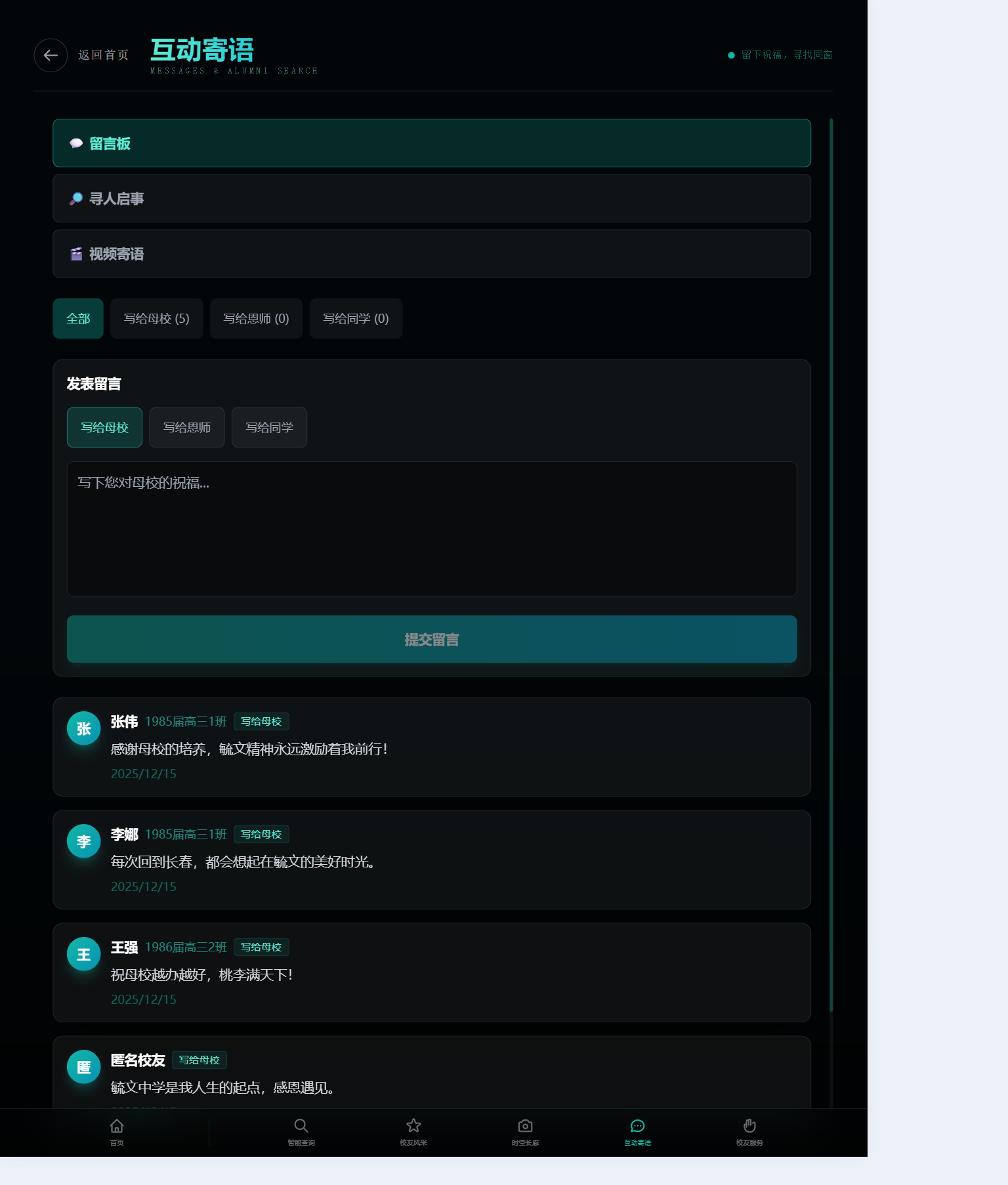

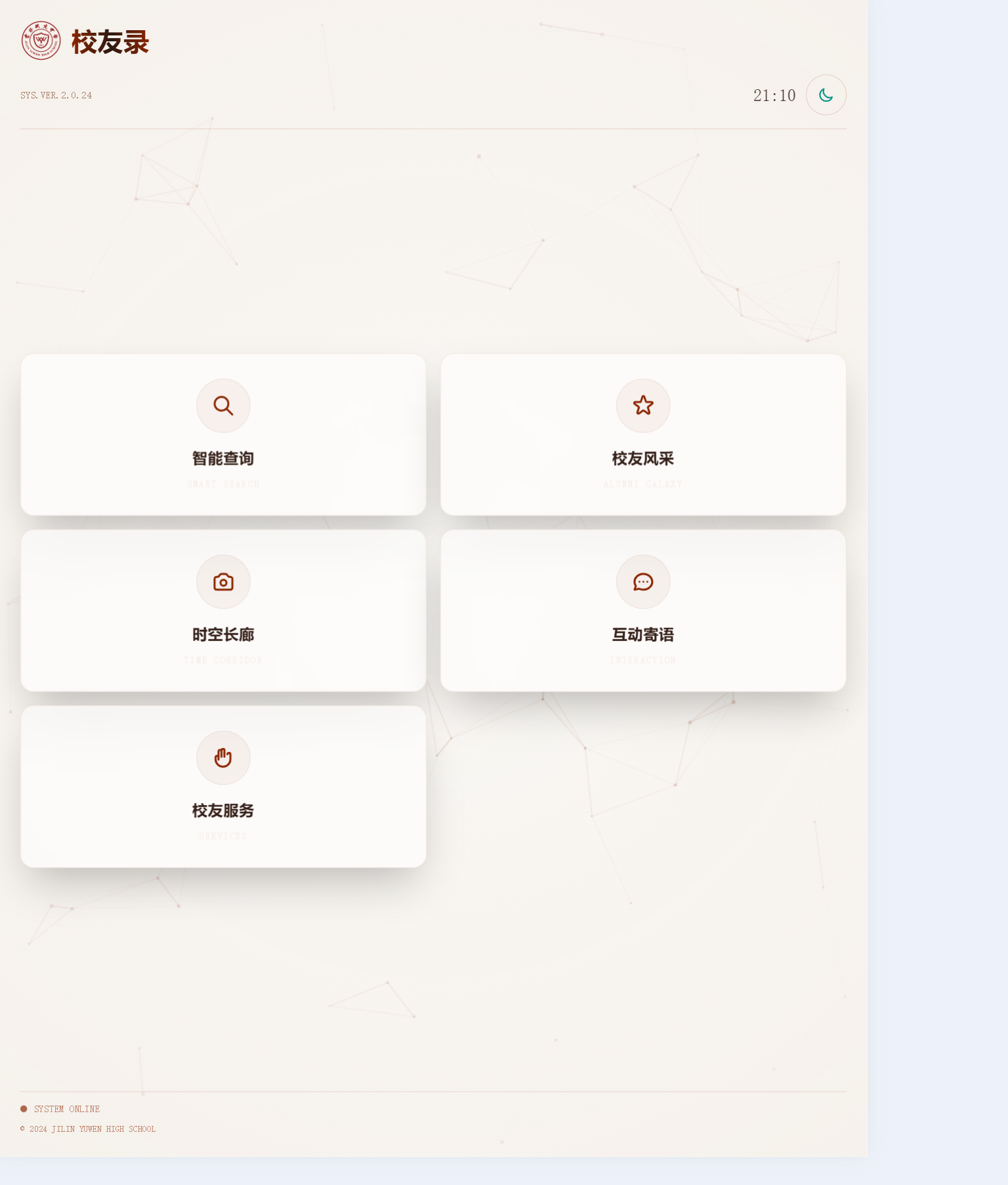

💬 Interactive Message Board _{Alumni greetings and memories wall}	🌗 Light Theme _{Switchable dark/light themes for different venues}

✨ Features

🖥️ Touch-screen Exhibition Kiosk

Immersive frontend built with Vue 3 + Three.js

Alumni Galaxy — 3D interactive star map of alumni
Time Corridor — Chronological photo gallery
Vintage Museum — Digital archive of historical items
Top Scholars — Honor wall for outstanding alumni
Standby screen with real-time clock & wake-on-touch

🤖 AI-Powered Smart Search

Natural language query powered by RAG architecture

Ask questions like "Who graduated in 1990 and works in tech?"
Context-aware answers with referenced alumni profiles
Multi-provider support: GLM-4, DeepSeek, or any OpenAI-compatible API
Powered by Qdrant vector database + pgvector embeddings

⚙️ Admin Dashboard

Complete management backend with Element Plus

Alumni CRUD, batch import/export (Excel supported)
Graduation photo management with face tagging
Content moderation for messages & comments
System dashboard with usage analytics
One-click database backup & restore

🏗️ Production-Ready Infrastructure

Enterprise-grade deployment out of the box

Docker Compose — One command to production
PM2 — Process management with auto-restart
Nginx — Reverse proxy with SPA routing
PostgreSQL — Reliable data storage with pgvector
Configurable school name, logo, and branding

🏛️ Architecture

┌─────────────────────────────────────────────────────────────┐
│                        Nginx (Reverse Proxy)                 │
├──────────────┬──────────────┬───────────────────────────────┤
│              │              │                               │
│  ┌─────────┐ │ ┌──────────┐ │  ┌──────────────────────────┐ │
│  │  Client  │ │ │  Admin   │ │  │       Server (API)       │ │
│  │ (Kiosk)  │ │ │ (Manage) │ │  │      Express + TS       │ │
│  │          │ │ │          │ │  │                          │ │
│  │ Vue 3    │ │ │ Vue 3    │ │  │  ┌──────┐  ┌─────────┐ │ │
│  │ Three.js │ │ │ Element  │ │  │  │ Auth │  │   RAG   │ │ │
│  │ Tailwind │ │ │ Plus     │ │  │  └──────┘  └─────────┘ │ │
│  └─────────┘ │ └──────────┘ │  │  ┌──────┐  ┌─────────┐ │ │
│              │              │ │  │ Alumni│  │ Backup  │ │ │
│  Port 5173   │  Port 5174   │ │  └──────┘  └─────────┘ │ │
│              │              │ │             │  │         │ │
└──────────────┴──────────────┘ │  ┌──────┐  ┌─────────┐ │ │
                                │  │  PG  │  │ Qdrant  │ │ │
                                │  └──────┘  └─────────┘ │ │
                                └──────────────────────────┘ │
                                             Port 3000       │
                                             ────────────────┘

🛠️ Tech Stack

Layer	Technology	Purpose
Kiosk Frontend	Vue 3 · TypeScript · Three.js · Tailwind CSS	Touch-screen exhibition with 3D visual effects
Admin Dashboard	Vue 3 · TypeScript · Element Plus · XLSX	Alumni data management & system administration
Backend API	Node.js · Express · TypeScript	RESTful API with JWT authentication
Database	PostgreSQL · pgvector	Relational data + vector embeddings
Vector Search	Qdrant	High-performance similarity search for RAG
AI Engine	GLM-4 · DeepSeek API	LLM-powered natural language Q&A
Deployment	Docker · PM2 · Nginx	Production-grade containerized deployment

🚀 Quick Start

Prerequisites

Requirement	Version	Required?
Node.js	≥ 18	✅ Yes
pnpm	≥ 8	✅ Yes
PostgreSQL	≥ 14	✅ Yes (with pgvector recommended)
Qdrant	latest	⭕ Optional (for AI search)
AI API Key	—	⭕ Optional (GLM-4 or DeepSeek)

Installation

# 1️⃣ Clone the repository
git clone https://github.com/jungang/alumnet.git
cd alumnet

# 2️⃣ Install dependencies
pnpm install

# 3️⃣ Configure environment
cp server/.env.example server/.env
# Edit server/.env with your settings

# 4️⃣ Initialize database
# Execute server/src/db/init.sql in PostgreSQL
# (Optional) Execute server/src/db/seed.sql for sample data

# 5️⃣ Start development servers
pnpm dev:server    # Backend API → http://localhost:3000
pnpm dev:client    # Kiosk frontend → http://localhost:5173
pnpm dev:admin     # Admin dashboard → http://localhost:5174

Key Configuration

Variable	Description	Default
`SCHOOL_NAME`	School name displayed in UI	`示例中学`
`SCHOOL_LOGO_URL`	Path to school logo	`/logo.png`
`SCHOOL_SINCE`	School founding year	`1917`
`DB_*`	PostgreSQL connection	—
`AI_PROVIDER`	AI provider (`glm` or `deepseek`)	`glm`
`SCREEN_RESOLUTION`	Target kiosk resolution	`1920x1080`

🐳 Deployment

Docker (Recommended for Production)

# Configure environment
cp server/.env.example server/.env
# Edit .env with production values...

# Launch all services
docker compose up -d

PM2 (Bare Metal)

pnpm build:server && pnpm build:client && pnpm build:admin
pnpm pm2:start    # Start all services via PM2
pnpm pm2:status   # Check status
pnpm pm2:logs     # View logs

📖 See DEPLOYMENT.md for detailed deployment guide.

📁 Project Structure

alumnet/
├── client/                  # 🖥️ Touch-screen exhibition kiosk
│   └── src/
│       ├── views/           # Galaxy · TimeCorridor · Search · Messages
│       ├── components/      # AIChatDialog · FaceTagOverlay · ThemeToggle
│       └── composables/     # useAutoRefresh · useIdleDetection
├── admin/                   # ⚙️ Management dashboard
│   └── src/
│       ├── views/           # 19 views: Alumni · Photos · Backup · Dashboard...
│       └── api/             # Typed API client
├── server/                  # 🔌 Backend API service
│   └── src/
│       ├── routes/          # REST API endpoints
│       ├── services/        # Business logic (RAG · Auth · Backup)
│       ├── repositories/    # Data access layer
│       └── db/              # Migrations · Seeds · Import scripts
├── .github/                 # 🤖 CI/CD · Issue templates · PR templates
├── docker-compose.yml       # 🐳 Production Docker config
├── deploy.sh                # 📦 Automated deployment script
└── ecosystem.config.js      # ⚡ PM2 process manager

🗺️ Roadmap

i18n — Multi-language UI support
WeChat Integration — Login via WeChat mini-program
Photo AI — Auto face recognition for graduation photos
Data Visualization — Interactive alumni statistics dashboard
Mobile App — Responsive design for mobile browsers
Plugin System — Extensible module architecture

Good First Issues

New to the project? Check out these beginner-friendly issues:

Issue	Description	Skills Needed
`good first issue`	Browse all →	Any
i18n setup	Add vue-i18n and extract hardcoded strings	Vue 3, TypeScript
Unit tests	Add test coverage for services/repositories	Vitest, TypeScript
Mobile responsive	Improve touch-screen layouts for tablets	CSS, Vue 3
Accessibility	Add ARIA labels and keyboard navigation	HTML, Vue 3

🤝 Contributing

We welcome contributions from the community! Whether it's a bug fix, new feature, or documentation improvement.

# Quick contribution workflow
git checkout -b feature/your-feature
git commit -m "feat: add your feature"
git push origin feature/your-feature
# Then open a Pull Request 🎉

📖 See CONTRIBUTING.md for detailed guidelines.

Commit Convention: We follow Conventional Commits — feat:, fix:, docs:, refactor:, etc.

📊 Project Stats

📄 License

This project is licensed under the MIT License — see LICENSE for details.

Free for personal, educational, and commercial use. Attribution appreciated but not required.

⚠️ Disclaimer

All alumni data included in this project is fictional and for demonstration purposes only. Do not use the sample data in production environments.

Made with ❤️ for school history museums everywhere
