LitClock

A clock that tells the time with literature: 4,800+ curated book passages, one for every minute of the day, on a paper-like e-ink display — with the date and weather.

LitClock is built for people who want a literary clock on their shelf and never want to think about it again: setup is a two-minute, phone-only affair, and after that the clock configures, updates, and heals itself. The defaults are the product.

Build one · Living with it · Give one away · Under the hood · Credits

One-minute tour

Build one

Four steps, roughly an afternoon (most of it waiting for the 3D printer).

1. Get the parts

Full details in Hardware Assembly.

2. Flash the SD card

1. Download the latest .img.xz from Releases
2. Flash it to the microSD card with Raspberry Pi Imager or balenaEtcher

That's it — no config files to edit, no SSH to set up. Everything else happens from your phone after power-on.

curl -sSL https://raw.githubusercontent.com/kapoorankush/litclock/master/scripts/install.sh | bash

3. Print and assemble the case

Print-ready STLs are in 3d-models/ — three PLA parts, lightly modified from Arthur Gassner's Time Teller case design (CC BY). Then:

1. Connect the e-Paper HAT to the Pi's 40-pin header, and the display to the HAT via the ribbon cable
2. Insert the flashed SD card into the Pi — do this before closing the case
3. Assemble the case — threaded inserts, the USB-C adapter on the back, screws

Arthur's guide covers the case assembly beautifully, and our Hardware Assembly page has the LitClock-specific details (ribbon-cable orientation, e-ink handling notes). No case? The bare HAT sandwich works fine on a shelf while you decide.

4. Power on — two-minute setup

1. Power on. Within a minute the display shows a "LitClock-Setup" hotspot with its password and a QR code.
2. Join the hotspot from your phone — the setup page opens automatically (or browse to the address shown on the display).

   iPhone note: current iOS (26.x) often doesn't open the sign-in page on its own — a known iOS change affecting local setup hotspots like this one, not something the clock can fix. If nothing pops up within a minute, just open Safari: the setup page appears immediately. Android opens it automatically.

3. Pick your home WiFi and enter its password. That's the whole form — location, timezone, and temperature units auto-detect once the clock is online.
4. The display shows "Ready to read." with a QR code to the clock's control app. Scan it, tap "Done — Start the Clock" (or just wait — it starts on its own), and add the app to your home screen.

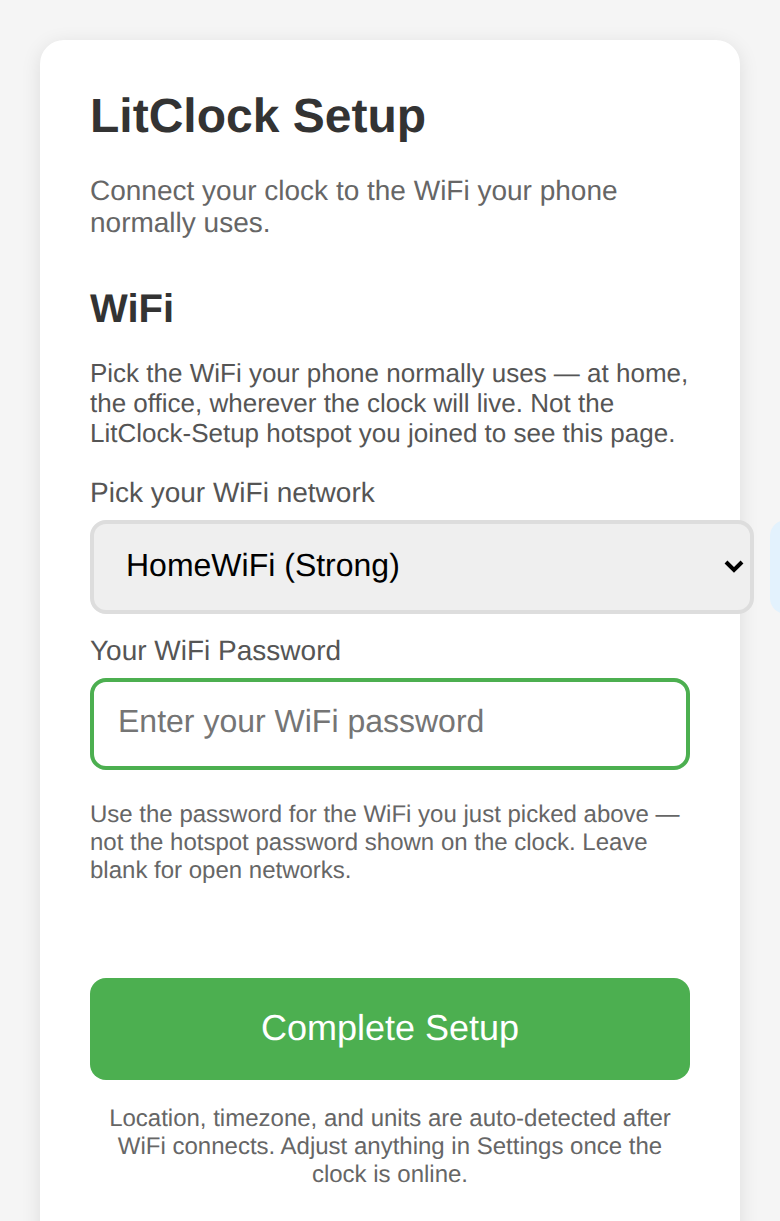

1. The clock shows its setup hotspot + QR	2. Your phone joins; the portal opens — pick your WiFi
3. The clock joins your WiFi and auto-detects your location	4. "Ready to read." — scan the QR for the control app

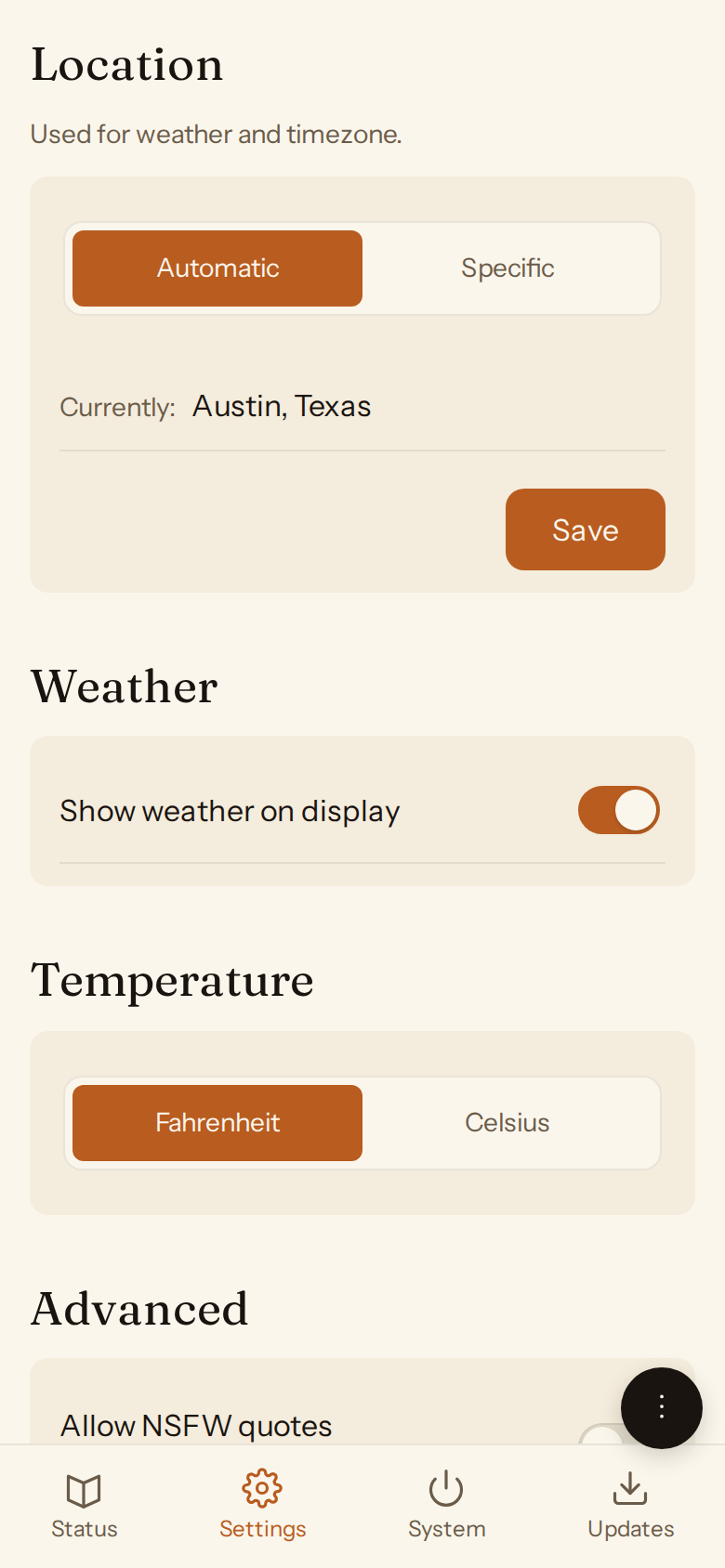

Anything the auto-detection got wrong — city, units, mature-content filter — takes a few taps to fix in the app's Settings tab. Prefer paper instructions? Print the quick-start booklet (A4 / US Letter) — a one-sheet, fold-in-half guide written for non-technical users.

Living with it

The Control App

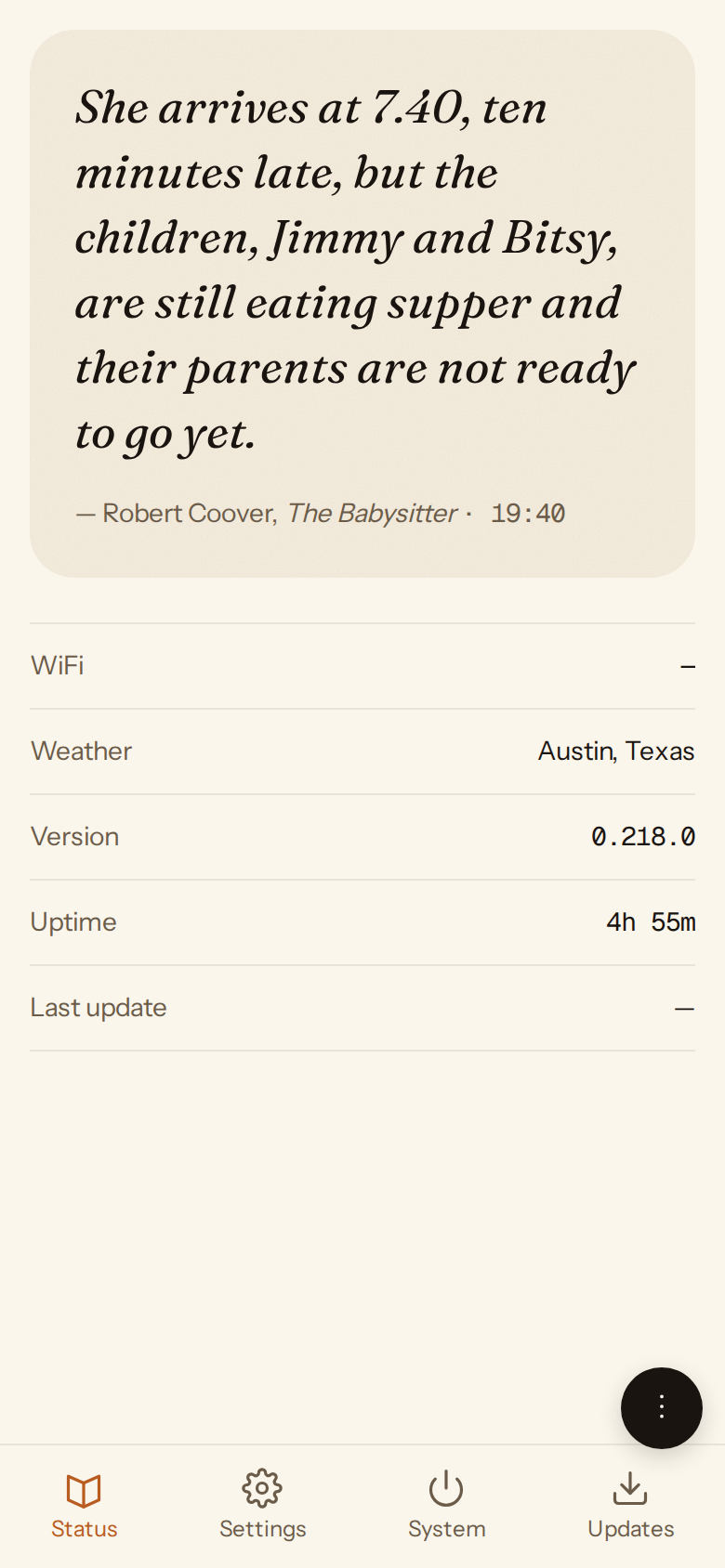

Every LitClock serves a small web app on your home network at http://litclock.local (or the clock's IP — the QR in the corner of every quote points there). Open it in any browser, or add it to your phone's home screen. No account, no cloud — the app is served by the clock itself and works only on your LAN.

Configuration

Weather works out of the box — no signup, no API key. The clock uses Open-Meteo as its default forecast provider, and location, timezone, and units are auto-detected during setup. Day-to-day changes are made in the control app's Settings tab. That's the whole configuration.

Under the hood, settings live in /home/pi/litclock/env.sh. You only need to touch this file on a DIY install or for the advanced options below:

# Weather location (written by setup / the control app; override here if you want)
export WEATHER_LATITUDE=30.27
export WEATHER_LONGITUDE=-97.74
export WEATHER_UNITS=imperial

# Quote content
export ALLOW_NSFW_QUOTES=false

# Weather cache duration in seconds (default: 3600)
export WEATHER_TTL=3600

# Optional: use OpenWeatherMap instead of the default Open-Meteo (leave blank for Open-Meteo)
# export OPENWEATHERMAP_APIKEY=

Updating

Short version: you don't need to do anything. The clock updates itself.

LitClock pulls the latest blessed release once a week, Sunday 03:00 local time, with up to 7 days of randomization so the fleet doesn't all update at the same moment. You can also apply an update immediately from the control app's Updates tab, or from a shell: /home/pi/litclock/scripts/update.sh.

What updates automatically:

• LitClock code (clock logic, control app, setup server, shell scripts)
• Python packages in the venv
• systemd units (new timers/services are auto-enabled)
• env.sh — new variables from env.sh.sample are merged in; your existing values are preserved
• Quote images, pinned by .images-version

What does NOT update automatically — by design:

• OS packages (apt upgrade) and Raspberry Pi firmware. On the flashed image, OS auto-updates are explicitly disabled: a surprise apt upgrade could break the display stack with nobody at the keyboard. OS-level updates happen when you flash a newer image (or run them yourself over SSH).

Two safety nets protect every update:

• A pre-wiring smoke test: after rebuilding the venv, the updater renders an in-memory quote image. If the render fails, the update reverts to the previous SHA before touching the running clock. If that happens, a subtle "!" glyph appears in the top-left corner of the clock face until the next successful update.
• A boot check with automatic rollback: if the clock ever boots and can't paint a quote, it retries, and after repeated failures automatically reinstalls the last release that is known to have painted. A bad update can't brick a clock that has no keyboard and no SSH.

systemctl status litclock-update.timer

journalctl -u litclock-update.service --since "1 week ago"

sudo systemctl disable --now litclock-update.timer

Resetting

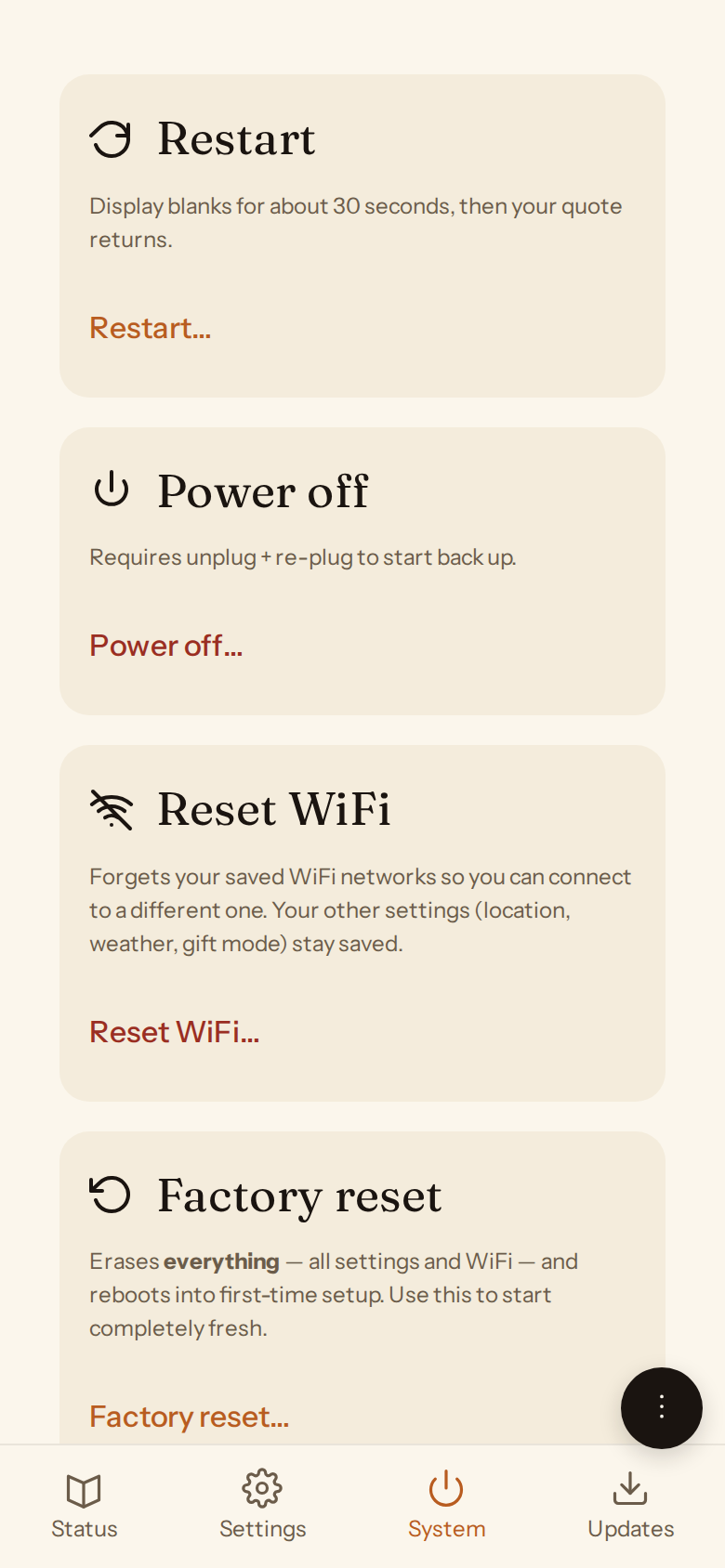

Most resets don't need a shell — use the control app's System tab:

• Reset WiFi — forget saved networks and return to the setup hotspot (your settings — location, weather, gift mode — are kept)
• Factory reset — wipe all settings and start over from the first-boot experience
• Prepare for Gifting — wipe WiFi, write a welcome message for the recipient, and power off ready to box up

From a shell, the equivalent is:

sudo ./scripts/reset-setup.sh
sudo reboot

Flags:

• --yes — skip the confirmation prompt
• --reboot — reboot automatically after reset
• --wipe-wifi — also delete saved WiFi networks (full fresh-flash simulation)
• --gift-mode — prepare for shipping: wipes WiFi, paints a welcome splash on the e-ink, and powers off. Implies --wipe-wifi --yes.

Troubleshooting

Start here (no shell needed): open http://litclock.local/diagnostics (or tap "Open full diagnostics" in the control app). It shows version, last render time, WiFi + weather status, error flags, and recent logs. Screenshot it, or use "Download full logs" to export a redacted support bundle safe to attach to an issue.

• Wrong city, units, or timezone: fix it in the app → Settings. If setup couldn't detect your location at all (some networks block IP geolocation), the app offers a one-tap "use my browser's timezone" fallback so the clock runs correctly with weather off.
• Display not updating: Check SPI is enabled with ls /dev/spi*
• Check service status: systemctl status litclock.timer
• View service logs: journalctl -u litclock.service --since today
• Force weather update: rm /run/litclock/weather-cache-*.json (the cache lives in tmpfs and rebuilds on the next minute tick)
• WiFi disconnects (Pi Zero): see WiFi stability, or check dmesg | grep brcmfmac for errors
• Setup page doesn't open on iPhone: a known iOS 26 behavior with offline setup hotspots (not fixable clock-side). Open Safari while joined to LitClock-Setup — the page loads right away, or go to the address shown on the display.
• WiFi fails during setup: The setup page shows an error banner and lets you fix the password and resubmit. If it keeps failing, restart the Pi closer to your router.
• Start setup over: app → System → Factory reset, or sudo ./scripts/reset-setup.sh && sudo reboot from a shell
• Clock stuck, or you need a shell: SSH ships off. See Recovering a LitClock for getting a shell via the console, enabling SSH from the SD card, resetting to first-boot, and the read-only Diagnostics tab.

For hardware issues, refer to the Waveshare wiki and demo repository.

Give one away

LitClock is designed to be gifted to someone who will never open a terminal:

1. In the control app: System → Prepare for Gifting — wipes your WiFi, writes an optional welcome message, and powers the clock down ready to box up
2. Print the quick-start booklet and enclose it — one folded sheet covers everything the recipient needs
3. The recipient plugs it in and gets the same two-minute setup you did, on their own WiFi

To produce several clocks, see SD Card Cloning for duplicating pre-configured cards. (If you received a pre-configured card: just insert it and power on — setup starts at the hotspot step.)

Under the hood

Philosophy

LitClock is an appliance, not an SSH-first developer tool. If you are a non-technical user, you should never need to do anything after first boot: everything configures itself, updates itself, and recovers itself. If you are a technically comfortable user, you can enable SSH (it ships off — see Recovering a LitClock) and disable or customize any of this. That's why updates are silent and automatic, why the failure story is automatic rollback rather than error messages, and why day-to-day control happens from a phone rather than a terminal.

How it works

On boot, the clock goes through this sequence:

1. Splash screen — "LitClock / Starting..." shown on the e-ink display
2. First-boot setup (first time only) — the Pi creates the "LitClock-Setup" hotspot and shows joining instructions on the e-ink. After you submit your WiFi, it connects, auto-detects location/timezone/units by IP geolocation, and shows the "Ready to read." handoff screen with a QR code to the control app.
3. Clock timer — updates the display at the top of every minute with a new literary quote
4. Control app — served continuously on your LAN at http://litclock.local

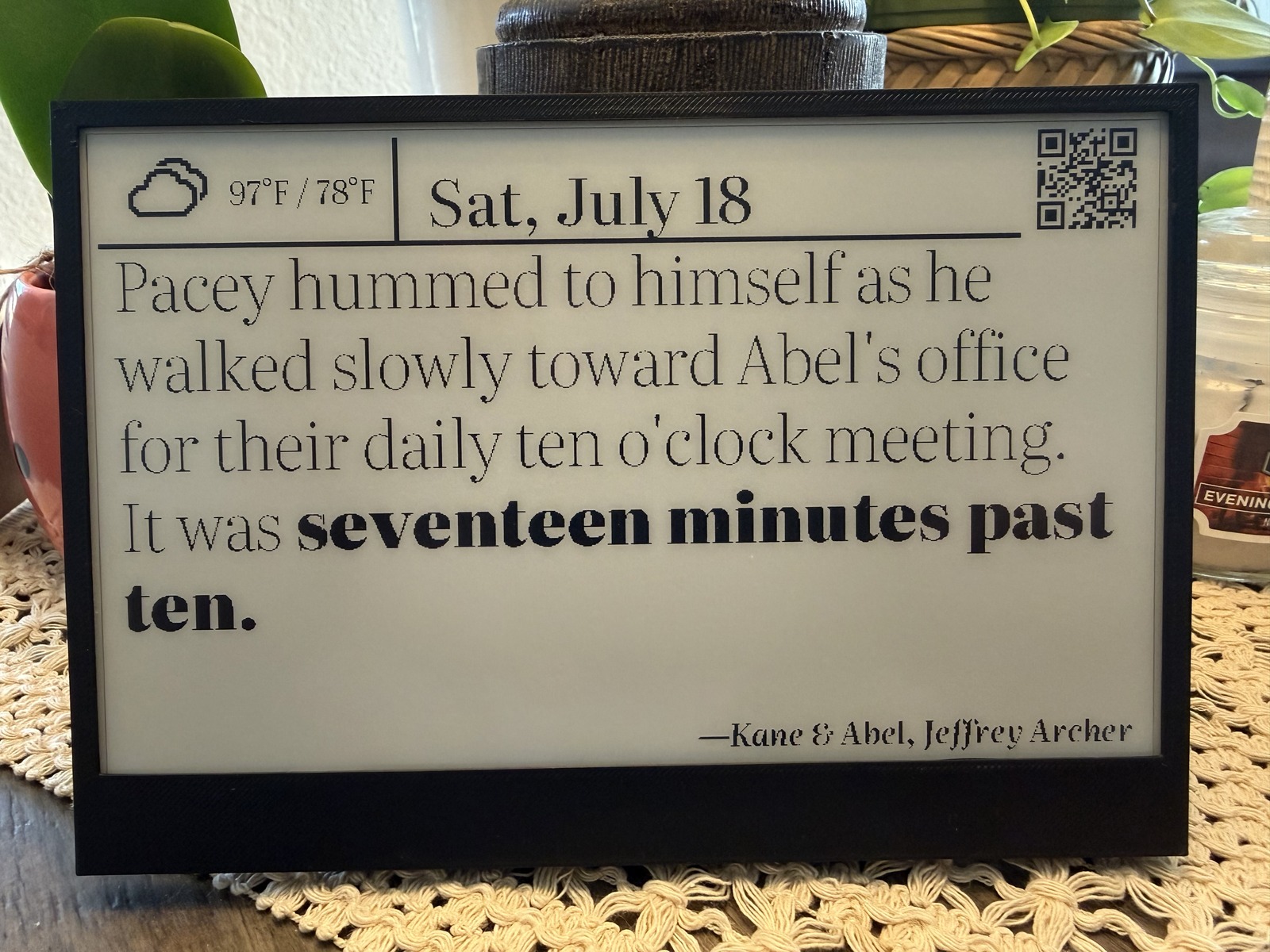

Each frame is composed like this — quote with the time reference bolded, date, weather, and the control-app QR:

The Pi has no hardware clock, so NTP time sync is enabled automatically during installation and first boot to ensure accurate time after every power cycle.

This is managed by systemd services — the important ones:

Useful commands:

# Check timer status and next trigger
systemctl status litclock.timer

# View clock update logs
journalctl -u litclock.service -f

# Manually trigger a display update
sudo systemctl start litclock.service

# Run the clock by hand
cd /home/pi/litclock && ./scripts/runtheclock.sh

WiFi Stability (Pi Zero W / Zero 2 W)

The Raspberry Pi Zero W and Zero 2 W have a known WiFi stability issue with the BCM43430 chip that can cause the system to hang and become unreachable. The flashed image applies mitigations out of the box, and the DIY installer detects the hardware and offers them:

• Driver parameters: Disables roaming and problematic power features
• Power management: Disables WiFi power saving
• Watchdog: Automatically reboots if WiFi becomes unreachable

If you experience WiFi disconnections or system hangs, re-run the installer to re-apply the fixes.

Going deeper

• Script Reference — every script and its usage
• Building the Image — build your own .img.xz from source
• SD Card Cloning — duplicating configured cards
• Recovering a LitClock — console access, enabling SSH, reset paths

Credits

This project was originally forked from jadonn/literary-clock and has since been extensively rewritten. The literary clock concept originates from Jaap Meijers's Instructables project (2018).

Quote database sources:

• JohannesNE/literature-clock (CC BY-NC-SA 2.5)
• cdmoro/literature-clock (MIT)
• The Guardian "Books blog" reader thread — community-sourced time-referential quotes from the 2011–2018 reader comments

Case design:

• Arthur Gassner's Time Teller (CC BY) — the 3D-printed case; lightly modified STLs ship in 3d-models/

Code & display inspiration:

• Jake Krajewski's Raspberry Pi + e-Paper Tutorial
• Mendhak's Waveshare e-Paper Display (MIT)

Assets:

• Dhole's Monochrome Weather Icons (CC BY-SA 4.0)
• Google Fonts — Literata (OFL 1.1)

See NOTICE.md for full license details on third-party components.
