SPR: Secure Programmable Router

Overview

Create an adaptive, micro-segmented network for managing WiFi devices, remote VPN access, and wired systems.

• One Password Per WiFi Device
• Policy Based / Zero Trust Network Access
• Per-Device DNS Rules & Ad Block Lists

Features

Security Multi-PSK including with WPA3, a SPR first Secure Router Chaining Almost no unmanaged code, minimized attack surfaces	Firewall Policy based routing Isolation by default Bidirectional groups and unidirectional service rules Secure container networking	WiFi WPA3/2 WPA1 backwards compatibility WiFi 6, 7 Support including MLO and 320mhz channels on supported hardware
Advanced Networking Wireguard™ VPN Multi WAN with Load Balancing Wireless Uplink Multicast Traffic Support Mesh with Wired Backhaul * Policy Based Site Forwarding *	Advanced DNS Capabilities Remote DNS Queries with DNS over HTTPs DNS Ad Block lists Per-Device DNS Rules and Overrides DNS Rebinding Protection	User Friendly React UX iOS App Available
Observability Traffic Insights by Country & ASN Internet & Uplink Health Monitoring Alerts DNS Logs Event System & DB	Interoperability Runs on a wide variety of Linux systems with Docker API Plugin System	Parental Controls Family DNS Rules Device Time Limits

* Some features are part of SPR PLUS, a paid subscription to support the project

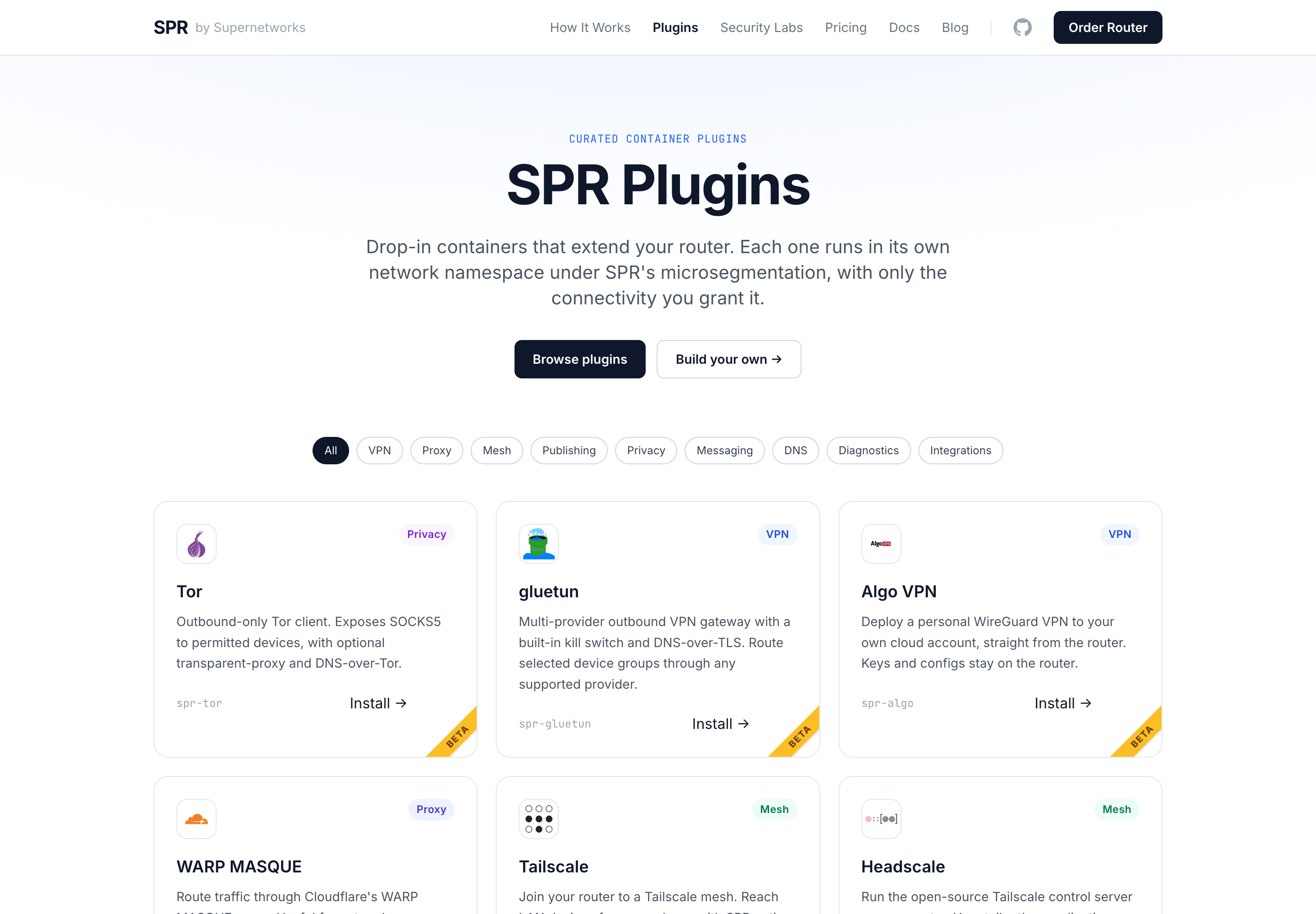

Plugins

Extend SPR with Docker based plugins. Use community supported plugins or write your own. Browse the catalog at https://www.supernetworks.org/plugins.html

How it Works

An unspoofable device identity is established with a MAC address and Per-Device Passphrase for WiFi (or a VPN Public Key for Remote Devices). From there, each device gets its own /30 subnet to exist on. Hardening and strict firewall rules block network spoofing and impersonation, and routing rules redefine connectivity between devices and to the internet.

Our Goals

1. Be the best Security & Privacy choice
2. Programmable with an API
3. Easy to use

Frequently Asked Questions

Check out our FAQ on our website

UI Demo Page

https://demo.supernetworks.org/

SPR Bus Events

https://github.com/spr-networks/sprbus-json

Updating

Building from scratch

./build_docker_compose.sh --load
docker-compose up -d

For performance and to minimize wear on SD cards, the build uses a memory-backed filesystem. On memory-limited devices, this can cause build failures if memory is exhausted. In this case, you can provide the build argument --set "*.args.USE_TMPFS=false".

Using prebuilt containers

docker-compose pull
./setup.sh # (optional)
docker-compose up -d
