RFSoC QPSK Transceiver

This repository has been tested with PYNQ image v3.1.1 (Vivado 2024.1) for the following RFSoC development boards. Newer PYNQ versions may require different Vivado versions; please verify compatibility against the PYNQ release notes:

• ZCU208,
• ZCU111,
• RFSoC4x2,
• RFSoC2x2,

The following boards are limited to PYNQ version 2.7 and Vivado 2020.2 since this board is not officially supported by PYNQ and no official SD card image exists:

• ZCU216.

The SD card image for this board has been made available from the following repository: sarafs1926/ZCU216-PYNQ.

Introduction

This repo contains all the files needed to build and run the RFSoC QPSK demonstrator that was published in IEEE Access and was presented at both FPL and XDF conferences in 2018. The design is a full QPSK transceiver, which transmits and receives randomly-generated pulse-shaped symbols with full carrier and timing synchronisation. PYNQ is used to visualise the data at both the DAC and ADC side of the RFSoC data converters, as well as visualising various DSP stages throughout the transmit and receive signal path.

Quick Start

Follow the instructions below to install the QPSK demonstrator on your development board. You will need to give your board access to the internet.

• Power on your RFSoC development board with an SD Card containing a fresh PYNQ v2.7 image or greater.
• Navigate to Jupyter Labs by opening a browser (preferably Chrome) and connecting to http://<board_ip_address>:9090/lab.

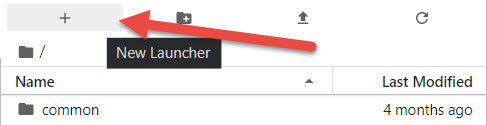

• We need to open a terminal in Jupyter Lab. Firstly, open a launcher window as shown in the figure below:

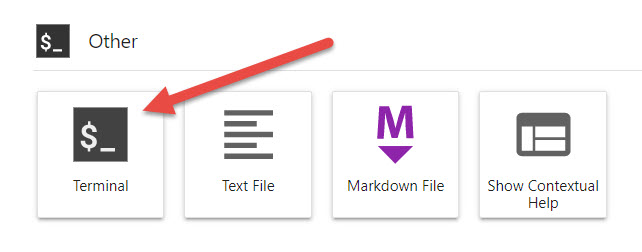

• Now open a terminal in Jupyter as illustrated below:

• Now simply install the QPSK demonstrator through PIP by executing the following command in the terminal:

pip3 install https://github.com/strath-sdr/rfsoc_qpsk/releases/download/v1.5.0/rfsoc_qpsk.tar.gz
python -m rfsoc_qpsk install

Once installation has complete, you will find the QPSK demonstrator notebooks located in the jupyter home workspace in the rfsoc_qpsk folder.

This repository uses Voila to create simple web applications using Jupyter notebooks. Your RFSoC development board should already be preinstalled with a version of Voila and no further setup is required.

Using the Project Files

The following software is required to use the project files in this repository.

• Vivado Design Suite 2024.1
• System Generator for DSP (MATLAB R2020a with Vivado Design Suite 2020.2)

System Generator

The Tx and Rx IPs are in separate directories in rfsoc_qpsk/boards/ip/sysgen/ that can be opened using the appropriate System Generator dialogue. Due to the large amount of decimation and interpolation in both IPs, simulating the output can take an extraordinarily long time. A less extreme multirate system would simulate much faster!

Vivado

This project can be built with Vivado from the command line. Open Vivado 2024.1 and execute the following into the tcl console:

cd /<repository-location>/boards/<board-name>/rfsoc_qpsk/

Now that we have moved into the correct directory, make the Vivado project by running the make commands below sequentially.

make block_design
make bitstream

Alternatively, you can run the entire project build by executing the following into the tcl console:

make all

License

BSD 3-Clause
