BroadlinkManager

BroadlinkManager is a FastAPI powered web application that makes it easy to manage Broadlink IR/RF devices on your local network. It features a modern React UI with dark and light mode support, a full REST API, and runs as a single Docker container.

Features

• Device Discovery — automatically scan your network for Broadlink devices; save and reload device lists
• IR Code Learning & Sending — put any supported device into IR learning mode and capture codes; send saved codes with one click
• RF Code Learning & Sending — guided 3-step RF sweep (hold → press → save) with real-time status polling
• Saved Codes Library — store, search, filter (IR/RF), edit, delete, and export your code collection as CSV
• RF Code Generator — generate random 433 MHz or 315 MHz RF codes (regular and long-repeat variants)
• Livolo Code Generator — generate RF codes for Livolo smart switches by remote ID and button type
• Energenie Code Generator — generate codes for Energenie Type-D 433 MHz RF sockets
• Change Repeats — modify the repeat count of any existing Base64-encoded IR or RF code
• Hex ↔ Base64 Converter — live bidirectional conversion between hex and Base64 code formats
• Dark / Light Mode — toggle between dark and light themes; preference is persisted across sessions
• Mobile Friendly — responsive layout with collapsible sidebar navigation
• REST API + Swagger UI — full OpenAPI documentation at /docs
• Prometheus Metrics — built-in metrics endpoint at /metrics

Installation

Docker Compose (recommended)

services:
  broadlinkmanager:
    image: techblog/broadlinkmanager
    container_name: broadlinkmanager
    network_mode: host
    restart: unless-stopped
    volumes:
      - ./data:/app/data

Why network_mode: host? Broadlink device discovery uses UDP broadcast packets on the local network. Host networking allows the container to send and receive those broadcasts. Without it, auto-discovery will not find any devices.

Once the container is running, open your browser at:

http://<docker-host-ip>:7020

Environment Variables

Variable	Default	Description
DISCOVERY_IP_LIST	(auto-detected)	Comma-separated list of local IP addresses to use for device discovery. Useful when the container has multiple network interfaces. Example: 192.168.1.10,192.168.2.10
DB_PATH	/app/data/codes.db	Path to the SQLite database file for saved codes

CLI Flags

You can pass arguments directly to the container to override discovery behaviour:

Flag	Default	Description
--ip <IP>	(auto)	Specify a local interface IP for discovery (repeatable)
--dst-ip <IP>	255.255.255.255	Broadcast destination IP for discovery
--timeout <s>	5	Discovery timeout in seconds

Example:

command: ["python", "broadlinkmanager.py", "--ip", "192.168.1.50"]

Screenshots

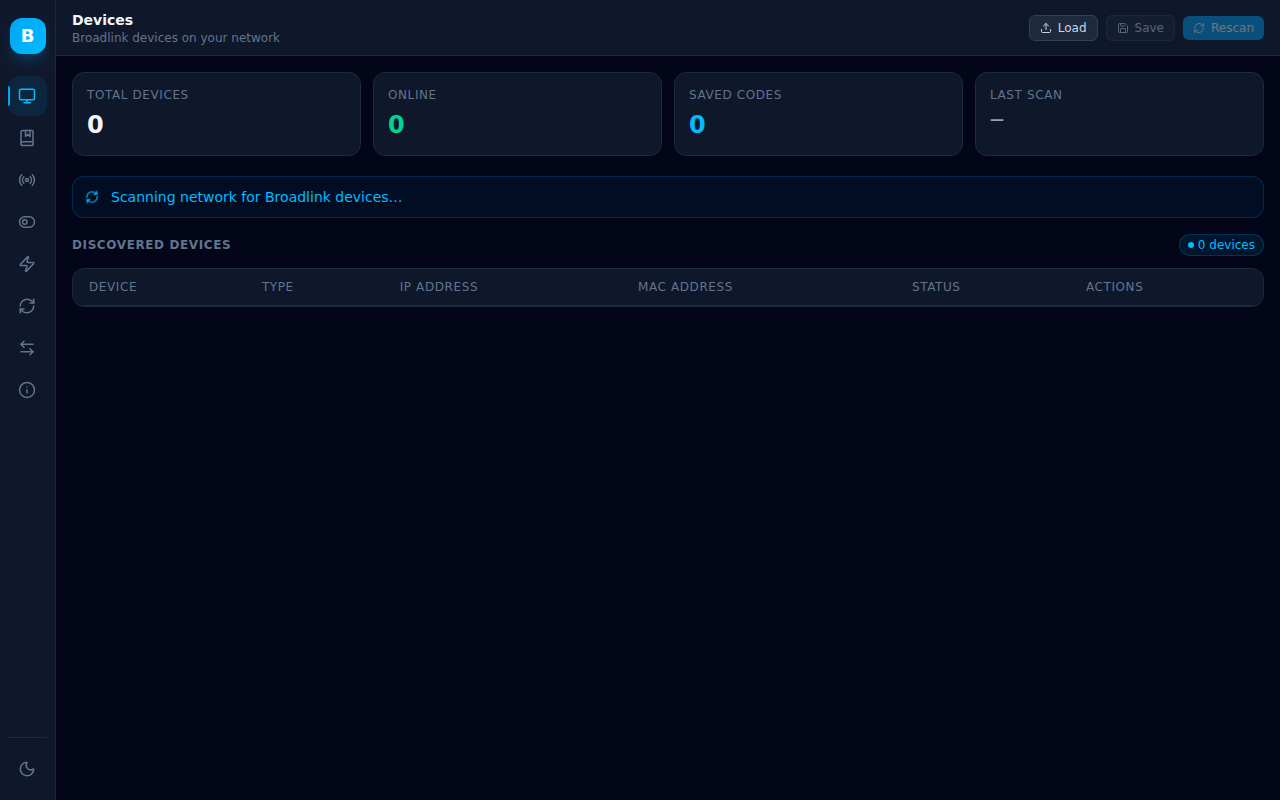

Devices — Dark Mode

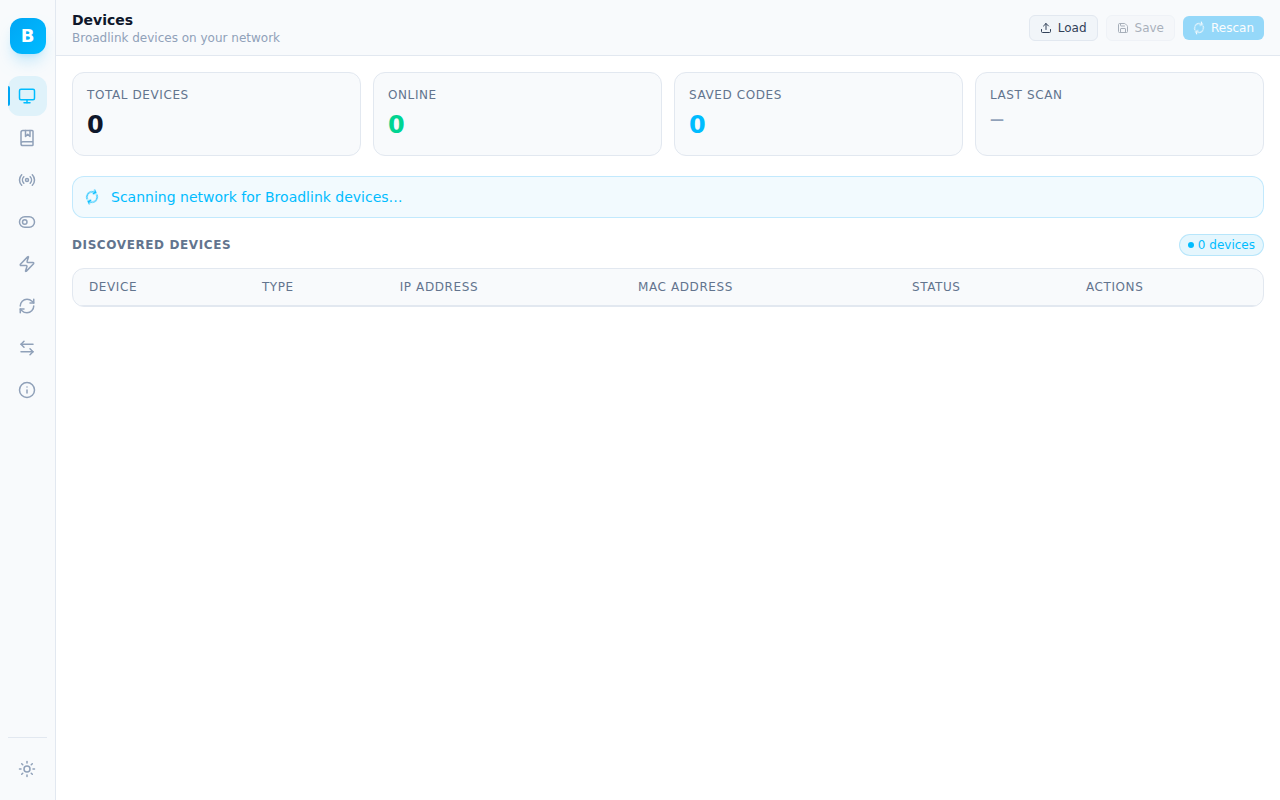

Devices — Light Mode

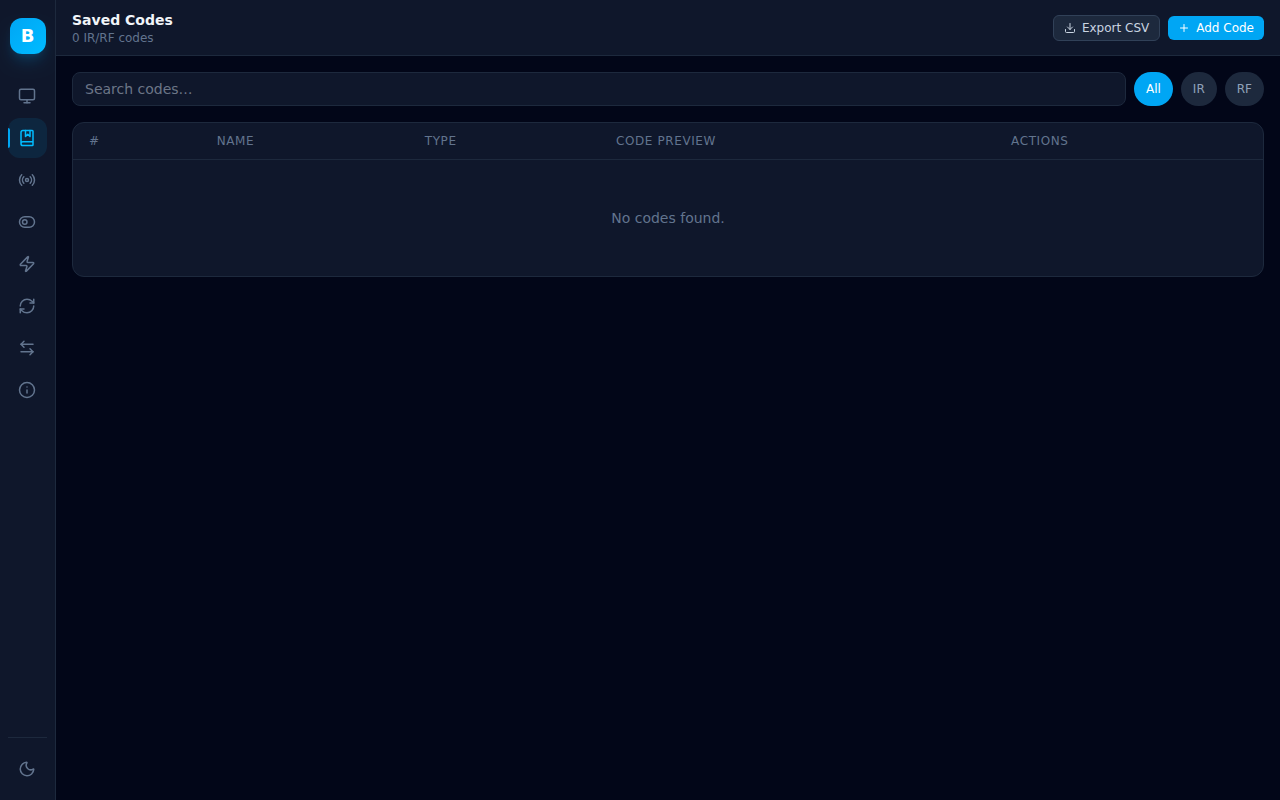

Saved Codes

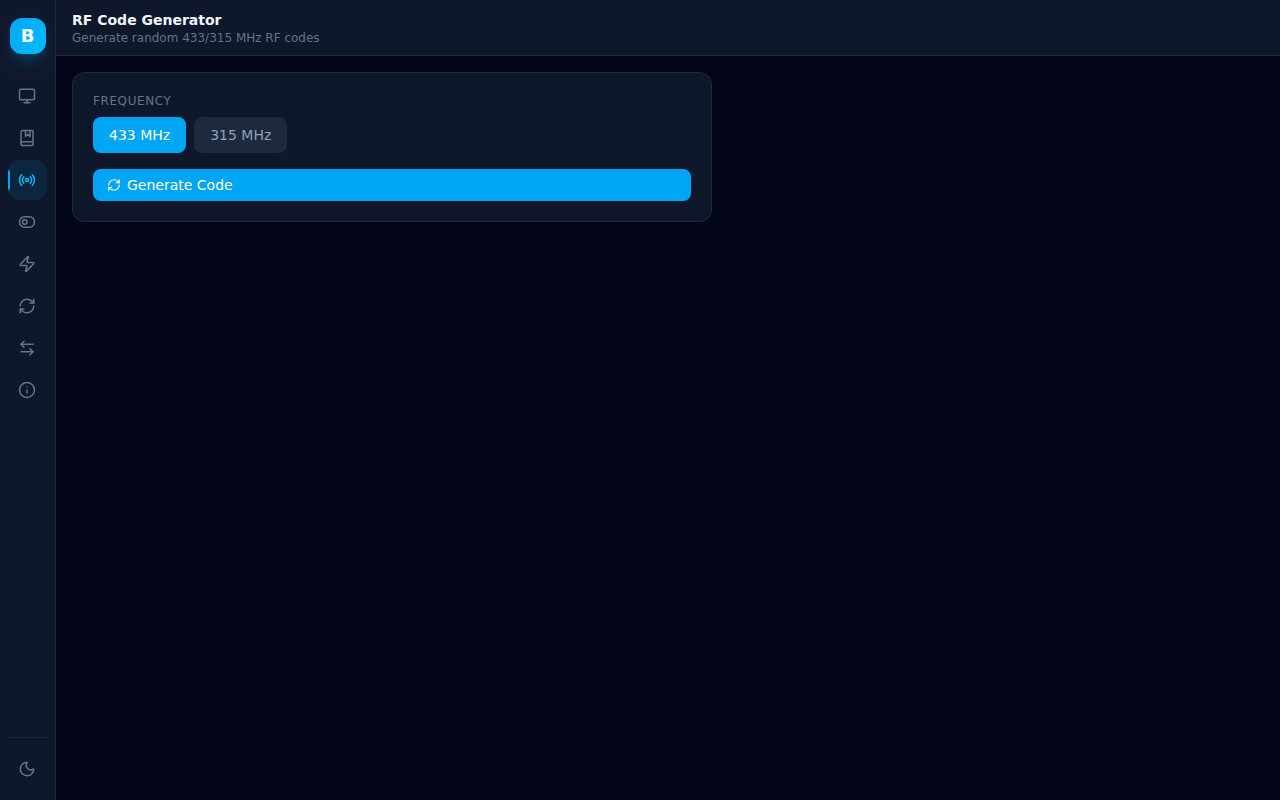

RF Code Generator

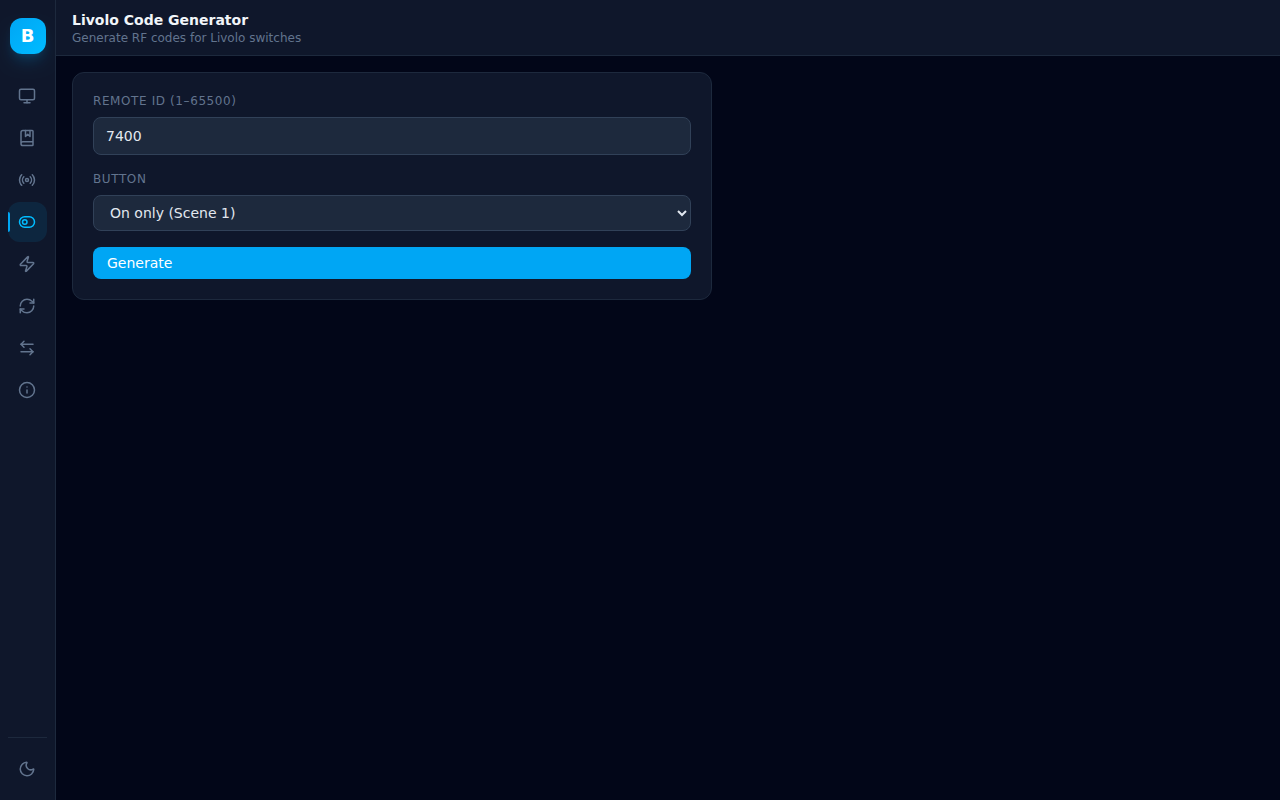

Livolo Code Generator

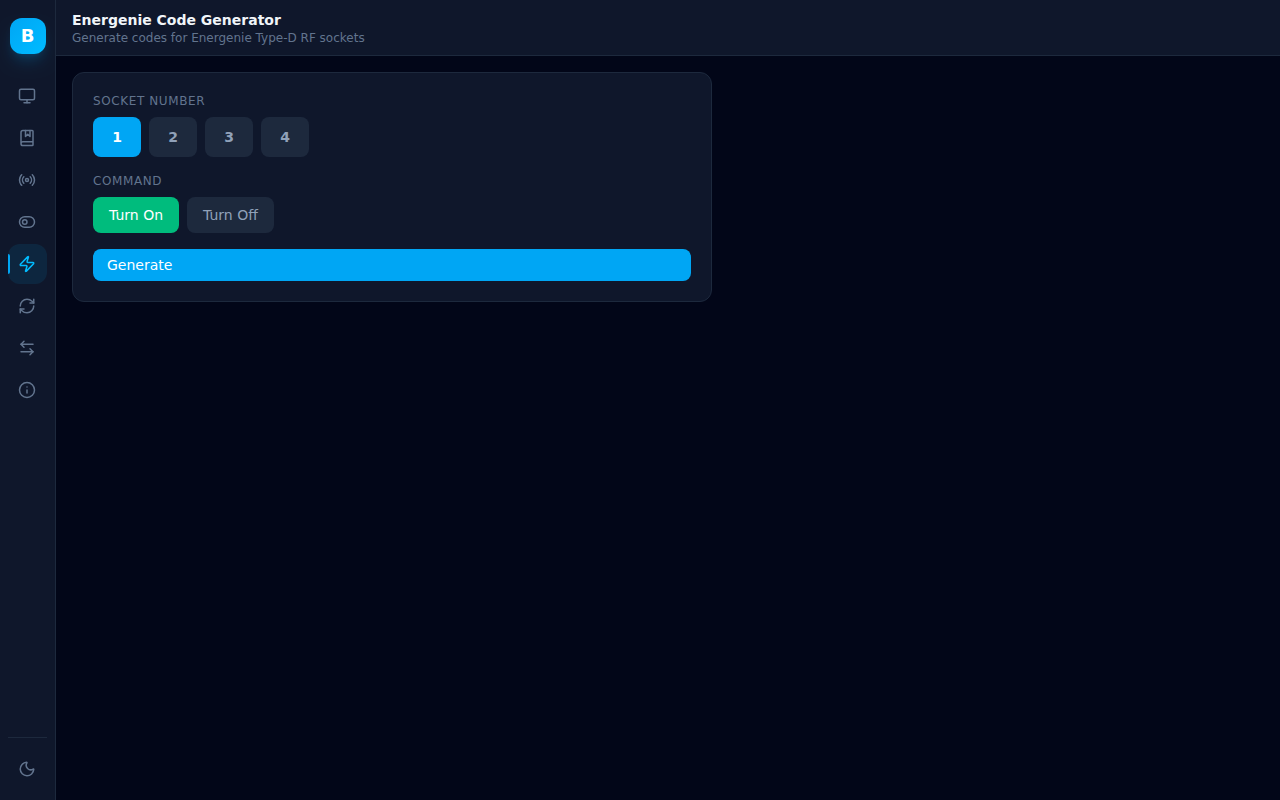

Energenie Code Generator

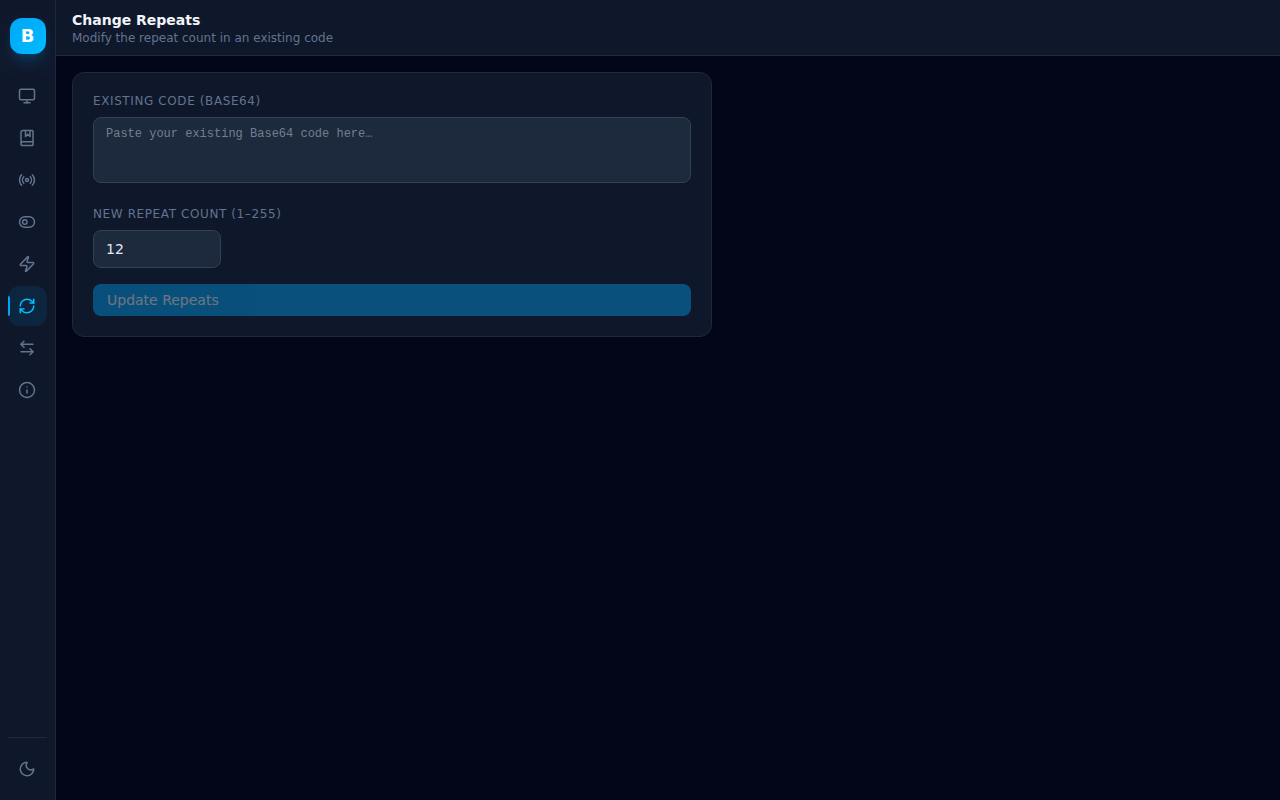

Change Repeats

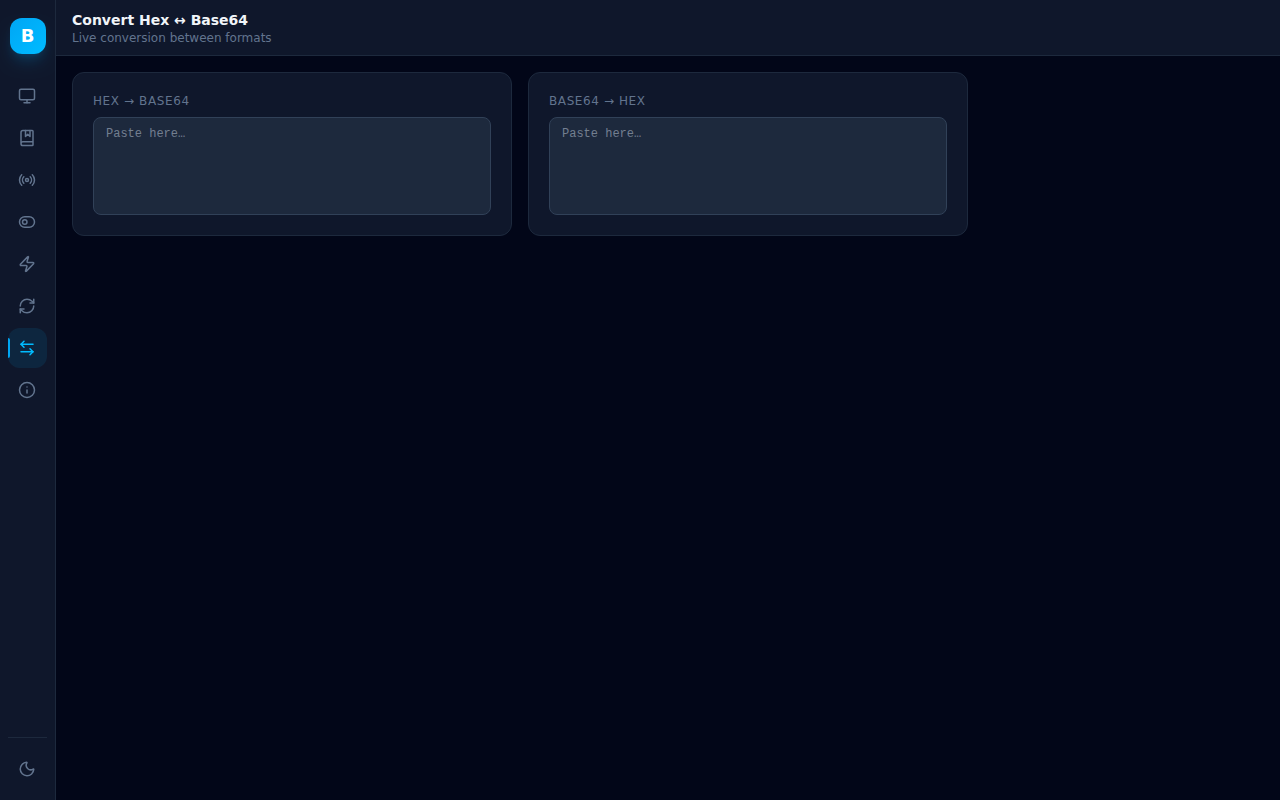

Hex ↔ Base64 Converter

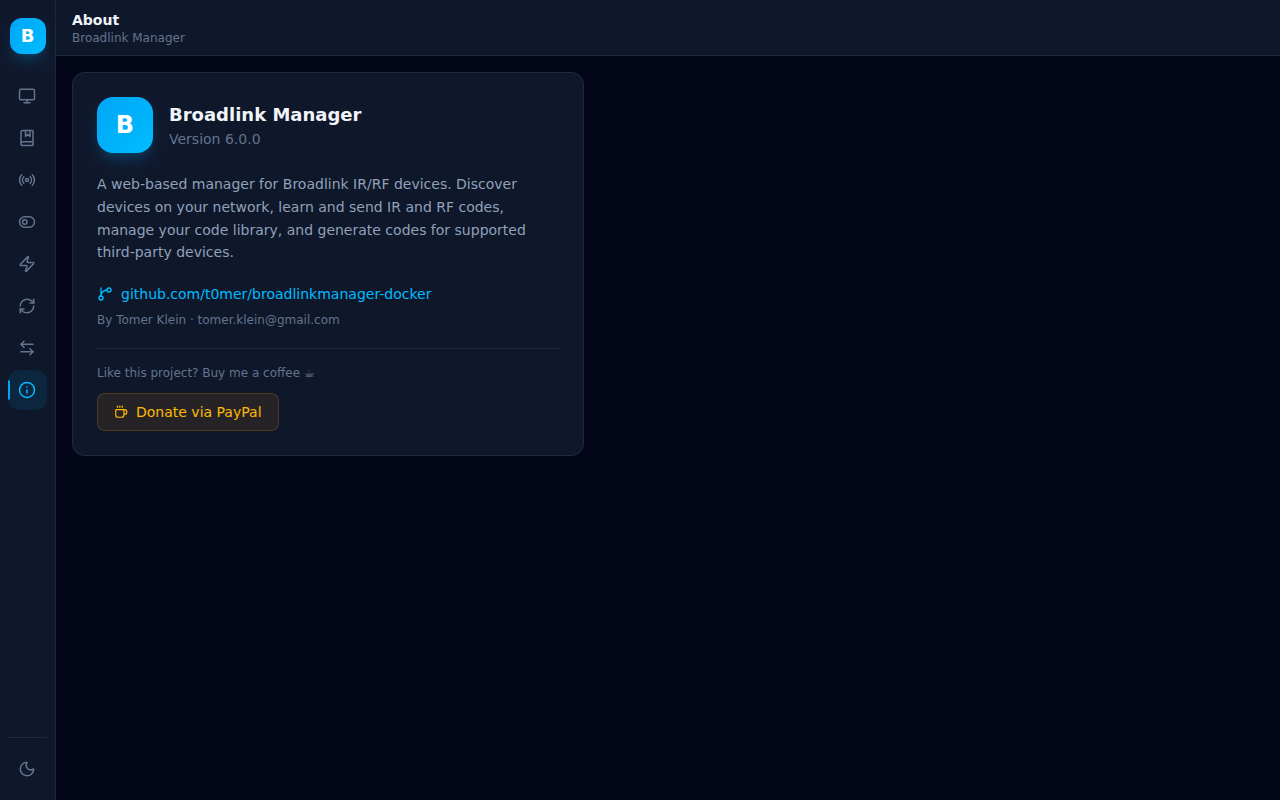

About

Supported Devices

Family	Models
SP1	SP1
SP2	SP2, SP mini, SP2-compatible (Honeywell, URANT), NEO (Ankuoo), SP mini 3, MP2, SP2-CL, SC1
SP2S	SP2, NEO PRO (Ankuoo), Ego (Efergy), SP mini+
SP3	SP3, SP3-EU
SP3S	SP3S-US, SP3S-EU
SP4	SP4L-CN/EU/AU/UK/US, SP4M, MCB1, SCB1E, SCB2, SP mini 3
RM mini	RM mini, RM mini 3 (all variants)
RM pro	RM pro/pro+, RM home, RM plus
RM mini B	RM mini 3 (0x5F36, 0x6507, 0x6508)
RM4 mini	RM4 mini, RM4C mini, RM4S, RM4 TV mate, RM4C mate
RM4 pro	RM4 pro, RM4C pro
Sensors	e-Sensor (A1)
Lights	LB1, LB26 R1, LB27 R1, SB500TD, SB800TD
Alarm	S2KIT, S3
Climate	HY02/HY03 (Hysen)
Cover	DT360E-45/20 (Dooya)
BG Electrical	BG800/BG900, AHC/U-01

REST API

Interactive API documentation is available at http://<host>:7020/docs (Swagger UI).

Key endpoints:

Method	Path	Description
GET	/autodiscover	Scan network for Broadlink devices
GET	/device/ping?host=<ip>	Check if a device is online
POST	/devices/save	Save discovered device list to file
GET	/devices/load	Load device list from file
GET	/ir/learn	Start IR learning on a device
GET	/rf/learn	Start RF sweep on a device
GET	/rf/status	Poll RF learning status
GET	/rf/continue	Continue RF sweep after frequency lock
GET	/command/send	Send IR/RF code to a device
GET	/temperature	Read temperature from a sensor device
GET	/api/codes	List all saved codes
POST	/api/code	Save a new code
PUT	/api/code/{id}	Update a saved code
DELETE	/api/code/{id}	Delete a saved code
GET	/api/version	Get application version
GET	/metrics	Prometheus metrics

Credits

• Matthew Garrett — python-broadlink
• Dima Goltsman — Random-Broadlink-RM-Code-Generator
