SnakeOil XY

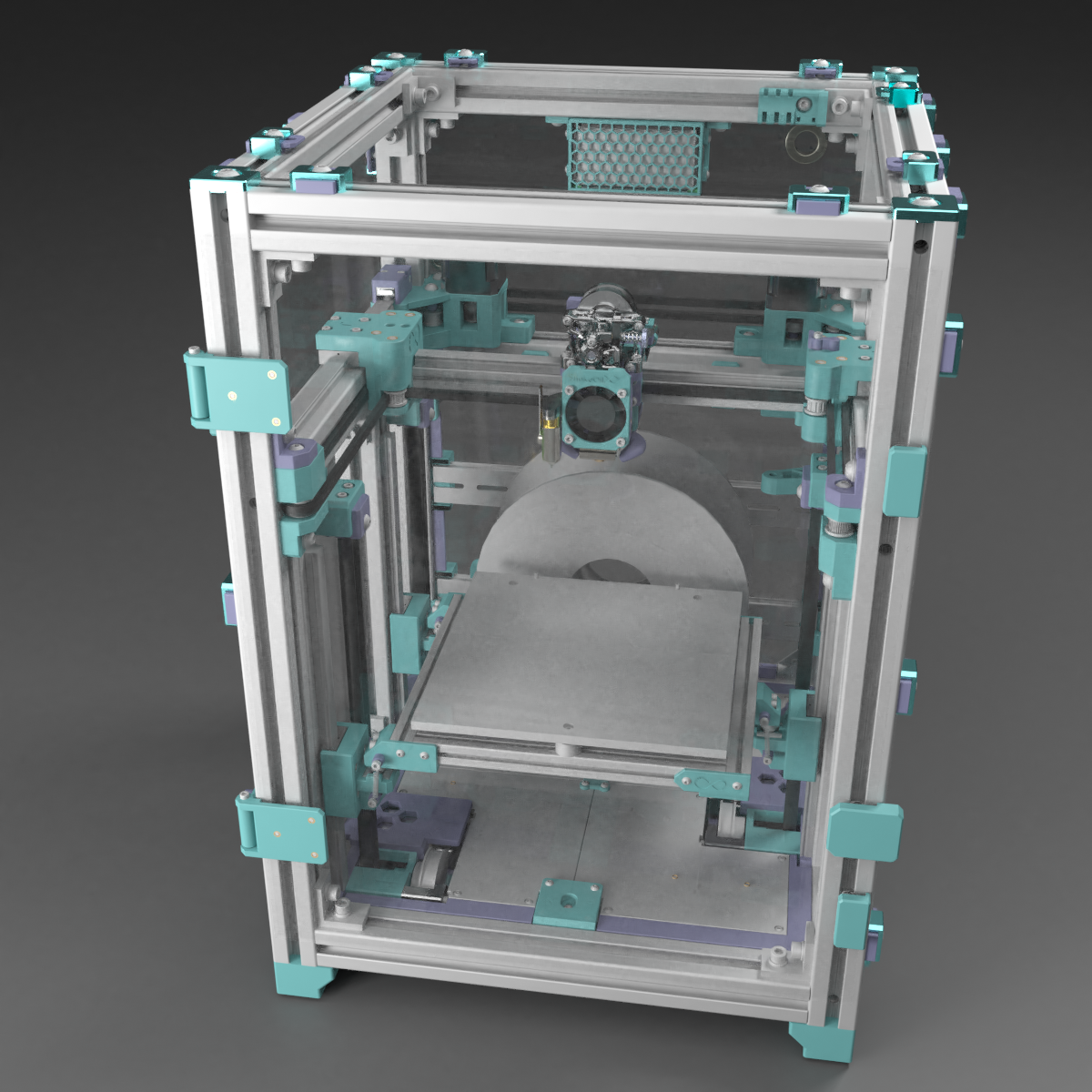

Fully open source configurable high speed CoreXY 3D printer. Inspired by HevORT, Voron, Annex Engineering and EVA2 design.

• Does not require any custom-machined parts or custom-cut panels.
• Can be selected one of the follwing kinematics.
  • Standard : Traditional corexy kinematic.
  • 4PR : High-performance machine with automatic squaring gantry capacity. This configuration uses custom Extended CoreXY kinematic (Mixed cartesian and corexy).
  • IDEX : Hybrid corexy IDEX.
• CoreXY, IDEX, and Extended-CoreXY kinematics.
• Designed to last, parts under stress are embedded with long bolts to handle the load.
• And our industry-leading SnakeOil technology :3

Beta 3 release (2023-01-28)

• Add IDEX variant(by Charles)
• Add 4PR variant with new Extended CoreXY kinematic
• Add klicky probe support(by Charles)
• New bed coupling kinematic using silicon spacers
• Add side-blower aux fan module
• Add EBB can toolhead board support
• Remove outdated components
• Merge toolhead design(1515 and 2020 gantry now use the same toolhead front/back/bottom design) and some small improvements on geometry

Features

Feature	Credit/Inspiration by/Description
Selectable kinematic : CoreXY, Hibryd-CoreXY	Added on beta3 release
Selectable single or dual toolhead	Added on beta3 release
3 Point auto bed tramming	HevORT, Wobble ring
Belted Z	Lulz bot, Voron
Din mounter	Voron
Cross belt corexy belt path	HevORT
Eva compatible toolhead	EVA
Filament spoll in side chamber	-
Quick release panels	Added on beta2 release
Built-in chamber air filter	Added on beta1 release
Auto build sheet detect and profile loader	Work in progress
AIO filament runout + jam detector + width sensor	Work in progress
Modular sensor add-on system	Work in progress
Probe(bed mesh) on print area only	Added on beta2 using klipper macro
Screwless belt mounter	VzBot
Bed fan	Qholia

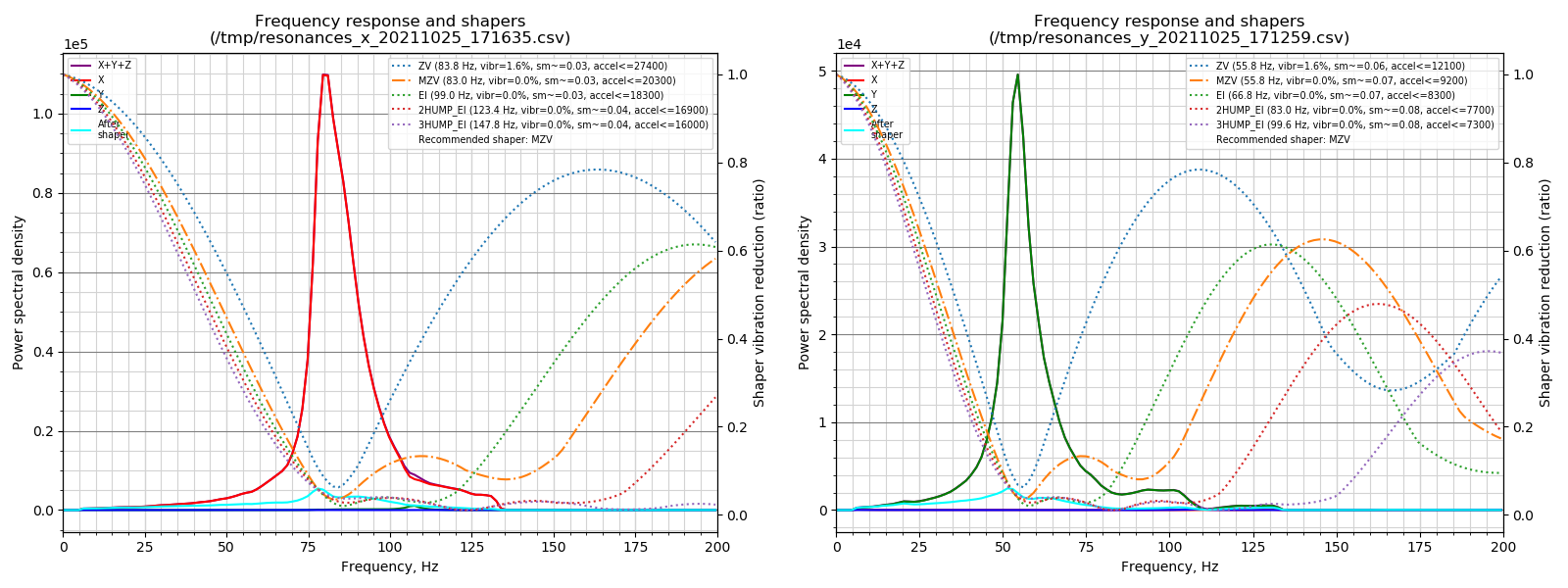

Input shaper test result (beta2 1515 gantry with Sherpa mini extruder)

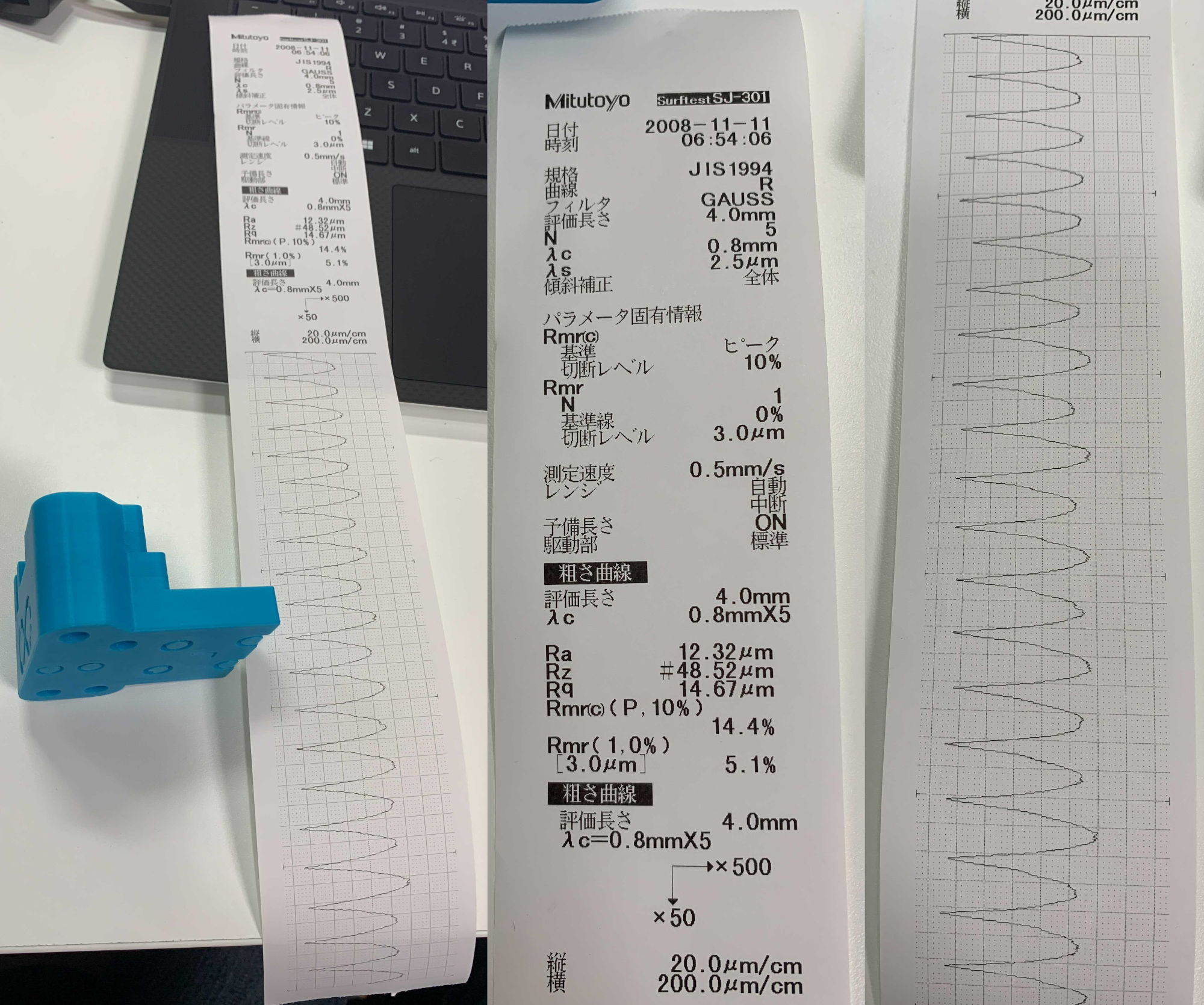

Layer pitch measure (beta2 1515 gantry with Sherpa mini extruder)

• Measure result provided by 株式会社グーテンベルク
• PLA, 0.4mm nozzle, sliced with Cura 4.12.1 using "CoreXY FAST" profile.

Demo videos

	Bed coupling	SpeedBoatRace	Slow benchy
Video
Hardware version	beta1	beta2	beta2

BOM

SnakeOil-XY currently has 2 versions

Both machines are practicaly identical, only difference is the build volume.

180x180x180mm build volume (Standard)

• 180³mm BOM

250x240x230mm build volume (Large)

• 250³mm BOM

Manual

>>> Click here <<<

Firmware

>>> Click here <<<

Copyright Notice

• Sherpa mini extruder is an original work of Annex Engineering, modified parts using their source code/design files are re-released under ANNEX Engineering License.
• EVA2 is an original work of EVA-3D, modified parts using their source code/design files are re-released under GNU General Public License v3.0
• This printer design(SnakeOil XY), it's document and software are released under GNU General Public License v3.0
