Shelly Gen4 — Matter over Thread

⚠️ Disclaimer. Installing this firmware voids your Shelly warranty, and Shelly cannot provide technical support for a device running third-party code. It removes the factory keys that enable Shelly Cloud and official OTA updates. Treat flashing as one-way unless you keep the full-chip backup you make before flashing. Incorrect flashing can brick your device, so always back up your original firmware before proceeding if reversibility is important to you. You assume all responsibility for any damage, data loss, or device failure. This project is not affiliated with Shelly, Allterco Robotics, CSA, or Espressif Systems. See Warranty, Factory Keys, and Reversibility.

The first third-party open source Matter over Thread firmware for Shelly Gen4 devices. It works natively with Apple Home, Google Home, Alexa, and Home Assistant. No Shelly app, no cloud, no WiFi. The Gen4 line's ESP-Shelly-C68F (ESP32-C6) has an 802.15.4 radio that stock firmware uses for Zigbee. Stock firmware also supports Matter over WiFi. This firmware reconfigures the 802.15.4 radio to run Thread, which unlocks Matter over Thread.

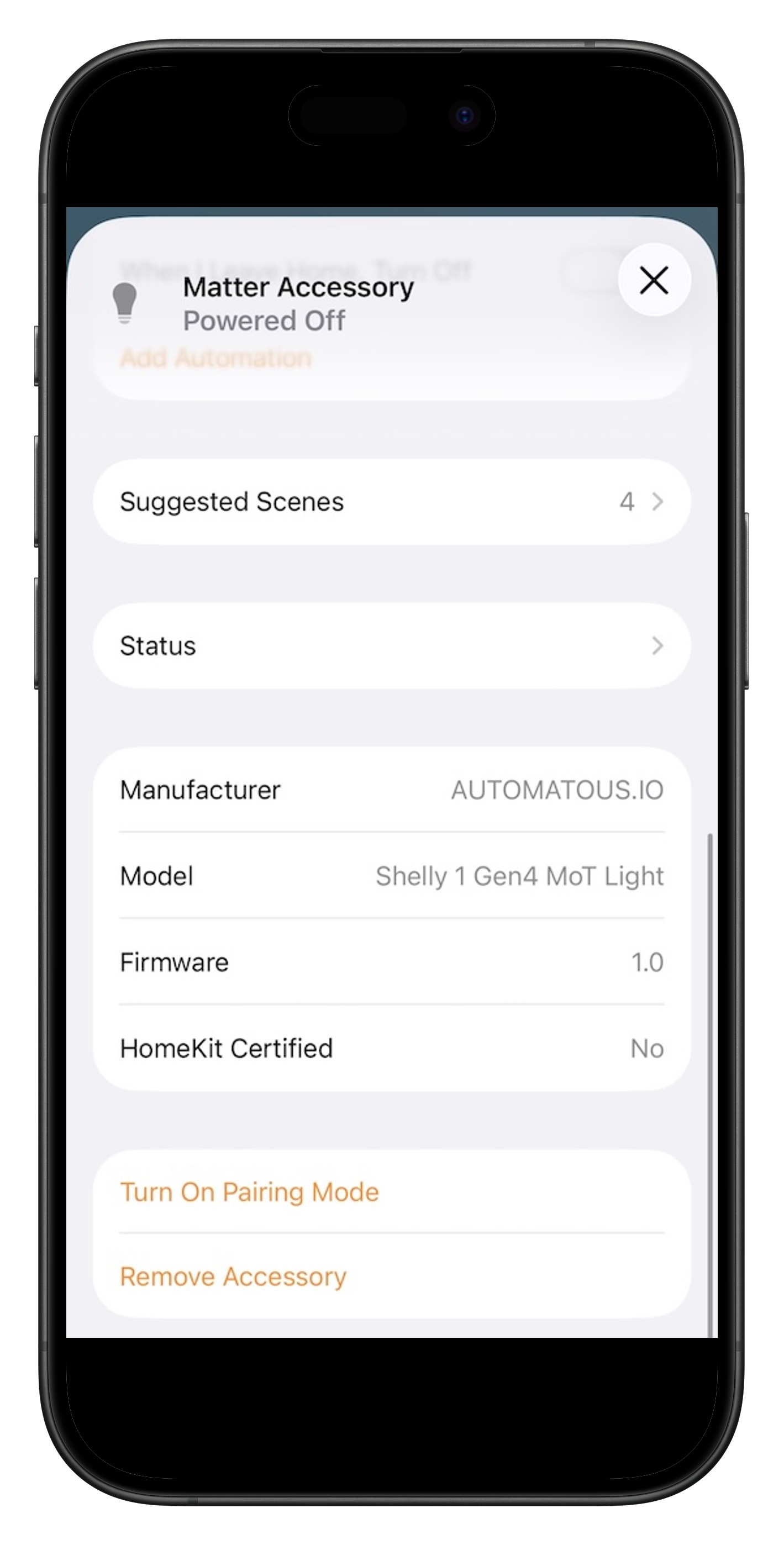

Shelly 1 Gen4 running the light variant firmware, commissioned to Apple Home. Manufacturer: AUTOMATOUS.IO, Model: Shelly 1 Gen4 MoT Light.

Supported devices
Variants
Quick start
Features
Compatibility
Documentation
Repository layout
Why?
Waiting for official Shelly support
About
In the wild
Other projects from Automatous
License

Supported devices

Each supported device has its own firmware builds under source/.

Device	Variants	Status
Shelly 1 Gen4	Light, Outlet, Opener, Light Switch	Released
Shelly 1 Mini Gen4	Outlet	Released

More Gen4 devices are planned. See the Roadmap.

Variants

Matter device types are declared by the firmware at flash time and cannot be changed in the smart home app after commissioning, so each behavior is a separate firmware build.

Variant	Matter device type	Relay behavior	Good for
Light	On/Off Light (shown as only a light)	Latching. Holds on or off until changed.	Lights and lighting circuits.
Outlet	On/Off Plug-in Unit (shown as an outlet, switch, fan, light)	Latching. Holds on or off until changed.	Outlets, plug-in appliances, fans, heaters, pumps, lights, and other set-and-hold loads.
Opener	On/Off Plug-in Unit + Contact Sensor	Momentary pulse, roughly 500ms.	Garage door openers, gates, doorbells, and other pulse-activated devices.
Light Switch	On/Off Light + On/Off Light Switch	Latching, but the SW terminal is detached from the relay.	Repurposing the wall switch to control other Matter devices through a binding, while the local relay runs independently.

All four variants are available for the Shelly 1 Gen4. The Shelly 1 Mini Gen4 ships the Outlet variant. Every variant on both devices includes a temperature sensor endpoint.

Light and Outlet are electrically identical. Both latch and hold state, and both keep the SW terminal as a physical wall toggle. They differ only in the Matter device type they report, which sets how your smart home app names, displays, and voice-controls the device, as a light or as an outlet. Some apps let you recategorize after pairing. Others fix the icon, label, and automations to the reported type, which cannot change after commissioning. Pick the variant that matches the load you wired, so the controls read the way you expect.

The Light variant is the flagship release and the one pictured above. Power-on behavior on the latching variants (Light and Outlet) defaults to off and is configurable through the Matter StartUpOnOff attribute (off, on, toggle, or restore last state). Home Assistant users can write this attribute directly. Apple Home and Google Home have limited Matter attribute editing today, so the firmware default applies there until those apps improve.

The Light Switch variant, contributed by Tomas McGuinness, decouples the SW terminal from the local relay. Flipping the wall switch no longer toggles the wired load. Instead it sends a Matter Toggle command through a second On/Off Light Switch endpoint, which you bind to other Matter devices such as bulbs, groups, or scenes. The local relay stays on the On/Off Light endpoint and is controlled by your smart home app, by voice, and by the onboard button. Out of the box the wall switch does nothing until you configure a binding. To keep local control as well, bind the switch endpoint back to the device's own light endpoint. You can write the binding with chip-tool. Home Assistant users can use the Matter Binding Helper by Cedric Ziel, which makes it straightforward.

⚠️ This firmware uses ESP-Matter SDK test credentials and is not VID/PID certified. It is functional for personal use and not suitable for resale as a certified Matter product. See Certification.

Quick start

Flash via the Shelly web UI over your WiFi network, no UART adapter required. This is the fastest way to flash but it cannot create a backup of the stock firmware and should be considered one-way. See Reversibility.

Download the latest release and grab the web UI package for your device and preferred variant.
Install it through the Shelly web UI.
Commission with your smart home app.

Once it is up and running, updates are available through Home Assistant with Matter OTA.

Features

Shelly web UI install, with no UART adapter required (unless you want reversibility).
Updates through Home Assistant with Matter OTA.
Physical button toggle on the onboard relay button.
External wall switch input on the SW terminal.
Configurable power-on behavior through the Matter StartUpOnOff attribute.
Status LED indication for BLE advertising, Thread connecting, and Thread connected.
Identify support. Blink the LED on command from any Matter controller to locate the device.
Factory reset via long press of the onboard relay button.
Full Thread Device mode. Adds a Thread Router to your mesh for other devices.
Multi-fabric. Commission to multiple ecosystems at once, with state synced across all of them.
Temperature sensor endpoint reporting the device's internal temperature.

Compatibility

Matter over Thread devices need a path onto a Thread network to commission and reach the Shelly. That can be a Thread Border Router, a device with a built-in Thread radio such as an iPhone 15 Pro or newer, or both. The table below lists tested and supported options.

Device	Provides Thread	Tested
Apple HomePod mini	Yes	Yes
Apple HomePod (2nd gen)	Yes	Yes
Apple TV 4K (3rd gen)	Yes	Untested
iPhone 15 Pro and newer	Yes	Yes
Google Nest Hub (2nd gen)	Yes	Untested
Home Assistant (SkyConnect or Yellow)	Yes	Yes
Amazon Echo (4th gen)	Yes	Untested

Documentation

Most of it is in docs/, with build scripts/, the changelog, and the security policy at the repo root. A typical path is to read the Flashing Guide, and its safety warning, flash the firmware, then commission the device to your smart home.

Why Matter over Thread — the rationale for Matter over Thread
Flashing Guide — wiring, backing up stock firmware, and flashing
Reversibility — warranty, factory keys, and how reversible flashing is
Commissioning — pairing the device and reading the status LED
Updating — keeping a device current after flashing
Power Consumption — measured draw and the Thread Router design choice
Building from Source — compiling the firmware yourself
GPIO Map — ESP-Shelly-C68F pin assignments for Gen4 devices
Certification — uncertified status and test credentials
Roadmap — current known limitations and planned work
Contributing — reporting bugs and the firmware filename convention
Contributors — people who have helped move the project forward
Security policy — reporting a vulnerability and how issues are triaged
Changelog — release history by device and variant

Repository layout

shelly-1-gen4-matter-thread/
├── README.md          This file.
├── LICENSE            Apache 2.0.
├── docs/              Documentation and the images it references.
├── scripts/           Build scripts that package the release artifacts.
└── source/
    ├── shelly-1-gen4/
    │   ├── light/         Matter On/Off Light, latching relay. Released.
    │   ├── opener/        Matter On/Off Plug-in Unit + Contact Sensor, momentary pulse. Released.
    │   ├── outlet/        Matter On/Off Plug-in Unit, latching relay, SW kept as a wall toggle. Released.
    │   └── light-switch/  Matter On/Off Light Switch, detached relay with the SW input bound to other Matter devices. Released.
    └── shelly-1-mini-gen4/
        └── outlet/        Matter On/Off Plug-in Unit, latching relay. Released.

Each variant directory under source/ is a self-contained ESP-IDF project. See Building from Source for what each variant does and how to build it.

Why?

The Shelly Gen4 line's ESP-Shelly-C68F (ESP32-C6) can run Thread, but stock firmware never uses it that way. This firmware repurposes the radio for Thread so the device speaks Matter directly to your smart home, with no WiFi, no cloud, and no bridge or controller required in between. For the full rationale, the comparison to ESPHome and Tasmota, and why Thread over WiFi, see Why Matter over Thread.

Waiting for official Shelly support

If you would rather not flash third-party firmware or void your warranty, another option is to wait for official support and ask Shelly to add it. Shelly currently has no plans for Thread, but they track it as a feature request and have said that enough requests could move it onto their roadmap. You can submit a request through Shelly's feature proposal form: Request Thread support from Shelly.

About

This firmware was created from inside an old Dodge Sprinter T1N named Mabel, parked somewhere in the USA.

I put in many sleepless nights obsessing over Thread support, which kickstarted me into writing custom firmware and testing with ESP-IDF, ESP-Matter, and ESPHome examples. That meant figuring out Shelly's custom partition offsets, the GPIO quirks specific to this device, and getting Matter over Thread commissioning working on non-devkit hardware.

If it saved you the same headache, consider leaving a ⭐ on the repo. It helps the project show up in GitHub search and signals to other Shelly Gen4 owners that this firmware exists and works. If you would like to support the work directly, you can buy me a coffee.

In the wild

Press, blog posts, and mentions of the project.

Shelly relay switches finally run on Thread with open-source firmware — Matter Alpha, May 2026
Shelly Gen 4: Custom-Firmware bringt Unterstützung für Matter over Thread — Caschys Blog, May 2026 (German)
Community discussion on r/homeassistant — Reddit, May 2026
Jonathan Hui of the Thread Group / CSA highlights the project — LinkedIn, May 2026
Tomas McGuinness discusses Matter Bindings via the light-switch firmware — YouTube, July 2026
Community discussion on r/ShellyUSA, mod credits project with generating a dramatic increase of Thread interest and feature requests to Shelly — Reddit, July 2026

Other projects from Automatous

Other open source, local-first, Matter over Thread projects from Automatous.

Project	What it is
T1N Smart Lock	Open source Matter over Thread smart lock that integrates with the factory central locking on a 2005 Dodge Sprinter 2500 (T1N chassis). Observation based, OEM respectful.

License

Apache 2.0. See LICENSE and NOTICE.

Based on the ESP-Matter light example by Espressif Systems, licensed under Apache 2.0. The Opener and Outlet variants' Matter device composition was informed by the esp-matter on_off_plugin_unit example, and the Light Switch variant's by the esp-matter light_switch example.
