Centralize the configuration of your immutable NixOS machines

My personal homelab infrastructure, fully managed with NixOS and Clan. This repository contains all configurations for my servers, desktops, and network devices.

Home | Public Server | Grafana Dashboard | My bookmarks

---

What is this?

This is a complete NixOS homelab setup that manages:

• Servers: Public VPS (Hetzner, Infomaniak), physical servers, Raspberry Pi
• Desktops: Personal laptops and workstations

Everything is declarative, reproducible, and version-controlled whenever possible.

Why Clan?

I'm using Clan to simplify infrastructure management:

Backbone of independent infrastructure

Or as I like to say:

Kill the cloud, build your darkcloud ☁️

→ Learn more about Clan and why I use it

Key benefits

• Simple host management: Easy inventory system
• Automatic secrets: Built-in secret generation and management
• Backup made easy: Integrated backup solution
• Declarative: Everything in code, no manual steps

🛠️ Deployment Strategy

I follow a hybrid approach:

• NixOS services first: Most applications run as native NixOS services
• Podman when needed: Some apps use containers to:
  • Use plugins or features not well-supported in NixOS (e.g., DokuWiki)
  • Avoid service interruptions during system updates
  • Maintain stability during version upgrades

This gives me the best of both worlds: NixOS reproducibility with container flexibility.

📦 Services & Applications

All Available homelab features :

ACME	Authelia	authentik	Blocky	Caddy	DokuWiki
Gatus	GoAccess	Grafana	grist	Homepage	it-tools
Kanidm	Linkding	LLDAP	Miniflux	Nix homelab summary	Pawtunes
Proxmox VE	Radio	Sample Podman application	Shaarli	Step CA	Tailscale
Victoriametrics	Wastebin	ZITADEL

💻 Desktop Environment

My workstations run a customized NixOS setup with i3 window manager and various productivity tools.

Desktop Applications

Logo	Application	Description
	borgbackup	Deduplication backup tool
	Firefox	Web browser
	Gimp	Raster graphics editor
	i3	Tiling window manager
	Inkscape	Vector graphics editor
	LibreOffice	Office suite
	Meld	Visual diff tool
	Navi	Interactive cheatsheet tool
	Neovim	VIDE - My customized Neovim config

Floating TUI Panels

Quick access to system controls via i3 floating terminals:

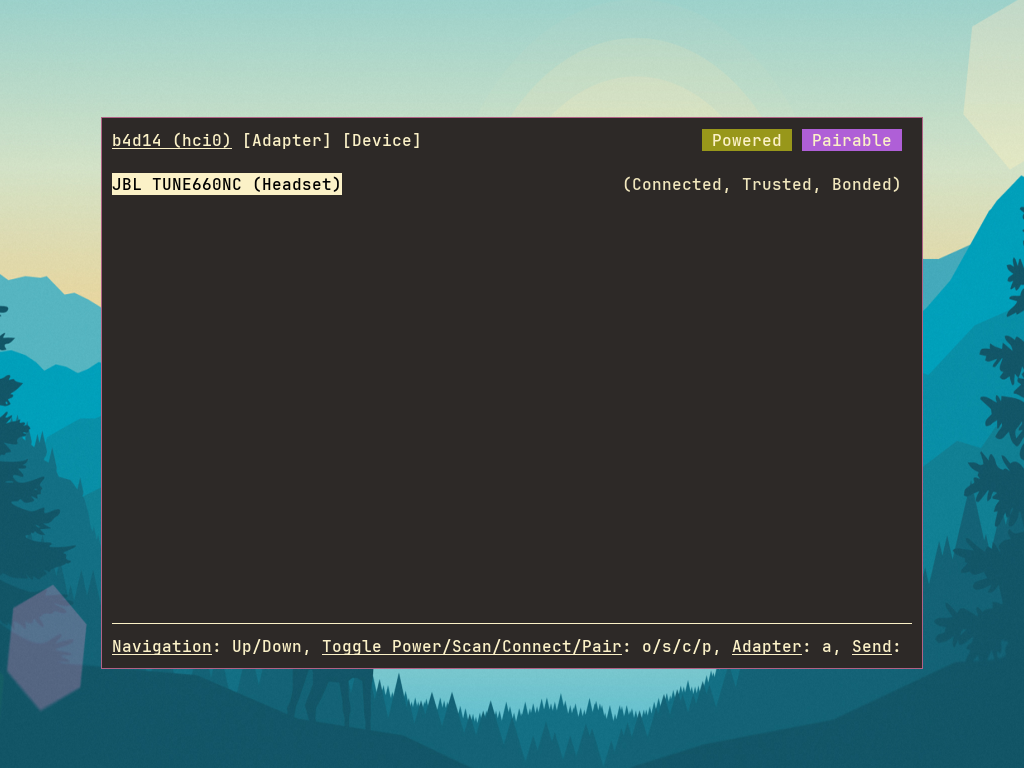

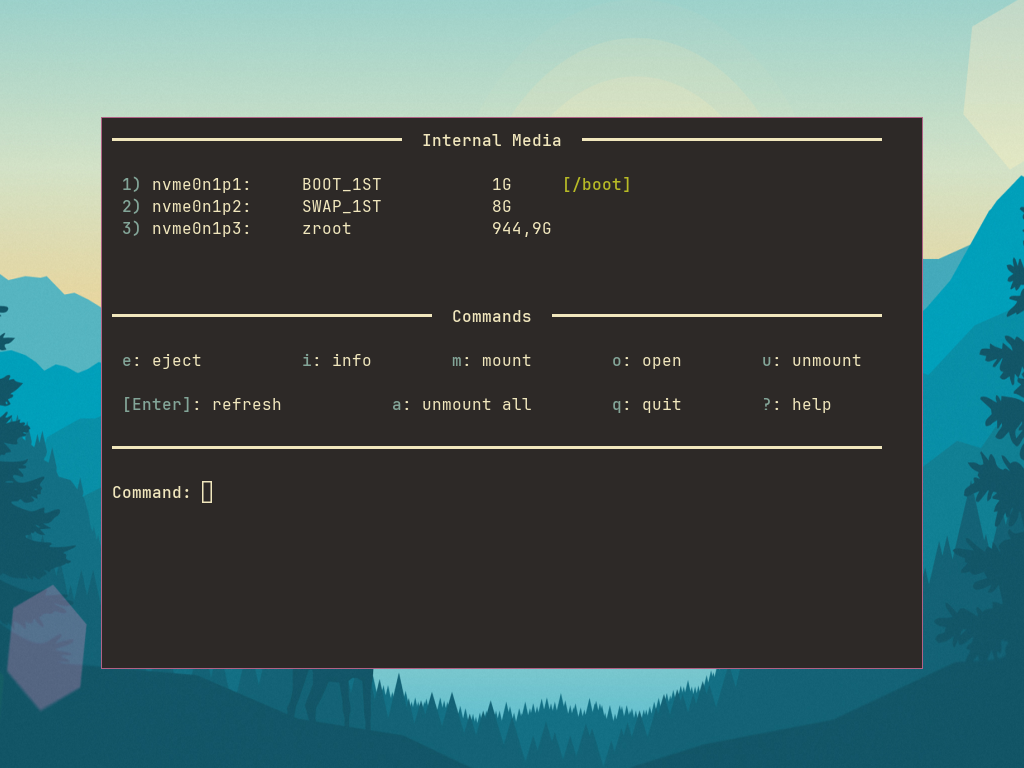

Bluetooth Manager	Disk Manager
bluetuith	bashmount

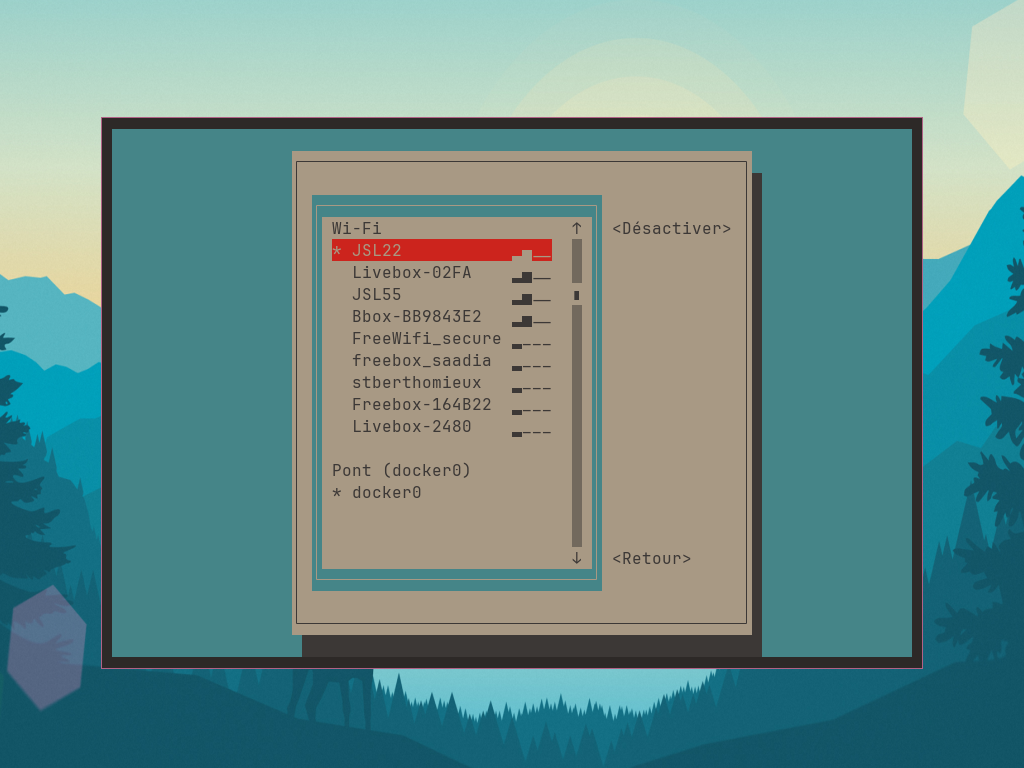

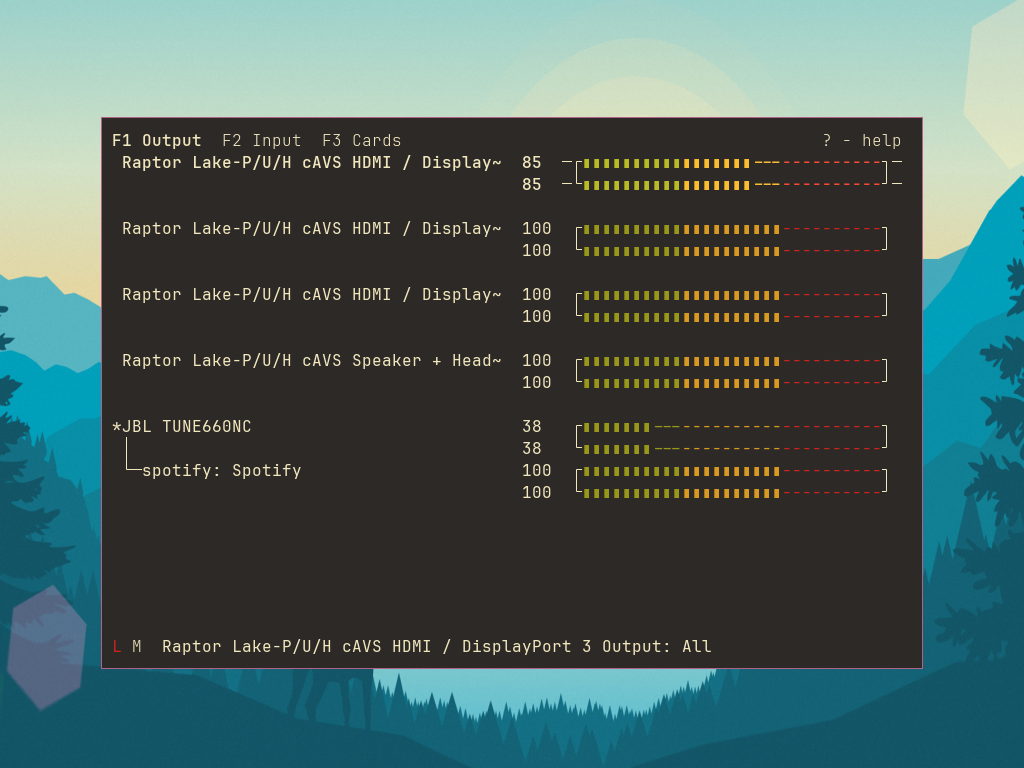

Audio Mixer	Network Manager
pulsemixer	nmtui

🌐 Infrastructure

🚀 Houston Server

My main public VPS running on Hetzner Cloud (CX32: 4 vCPU, 8GB RAM, 80GB SSD).

What it does:

• 🔐 Authentication Hub: Authelia + LLDAP for SSO across all services
• 📊 Full Observability Stack: Grafana, VictoriaMetrics, Telegraf, Vector
• 📱 Self-Hosted Apps: DokuWiki, Linkding, Miniflux, Shaarli, and more

→ See complete service list and details

💻 Gagarin Workstation

My main desktop workstation for daily development and productivity.

Setup:

• 🪟 i3 Tiling WM: Efficient workspace management with custom keybindings
• 🛠️ Full Dev Environment: VIDE (Neovim), VS Code, Git, Docker, and more
• 🎨 Creative Tools: GIMP, Inkscape, LibreOffice
• ⚙️ System Management: TUI panels for quick access to system controls

→ See complete configuration and tools

All Hosts

Complete list of hosts in the homelab (auto-generated with just doc-update):

Logo	Name	OS	Description
	box (192.168.0.1)	Sagem	SFR internet box
	router-living (192.168.254.254)	MikroTik	Livingroom mikrotik router
	router-ladbedroom (192.168.254.253)	MikroTik	Bedroom mikrotik router
	router-homeoffice (192.168.254.252)	MikroTik	Office mikrotik router
	sadhome (192.168.254.200)	NixOS	Stephanie's laptop
	rpi40 (192.168.254.101)	NixOS	The RPI 4 server
	bootstore (192.168.254.100)	NixOS	HP Microserver N40L server
	b4d14 (192.168.254.124)	NixOS	Dell XPS 9560 Latop
	badxps (192.168.254.114)	NixOS	Dell XPS 9570 Latop
	vm-test (127.0.0.1)	NixOS	qemu VM (SSH on port 2222)
	cab1e (84.234.31.97)	NixOS	Wireguard VPN anonymizer server
	houston (91.99.130.127)	NixOS	Main public server
	gagarin (192.168.254.147)	NixOS	My main desktop workstation

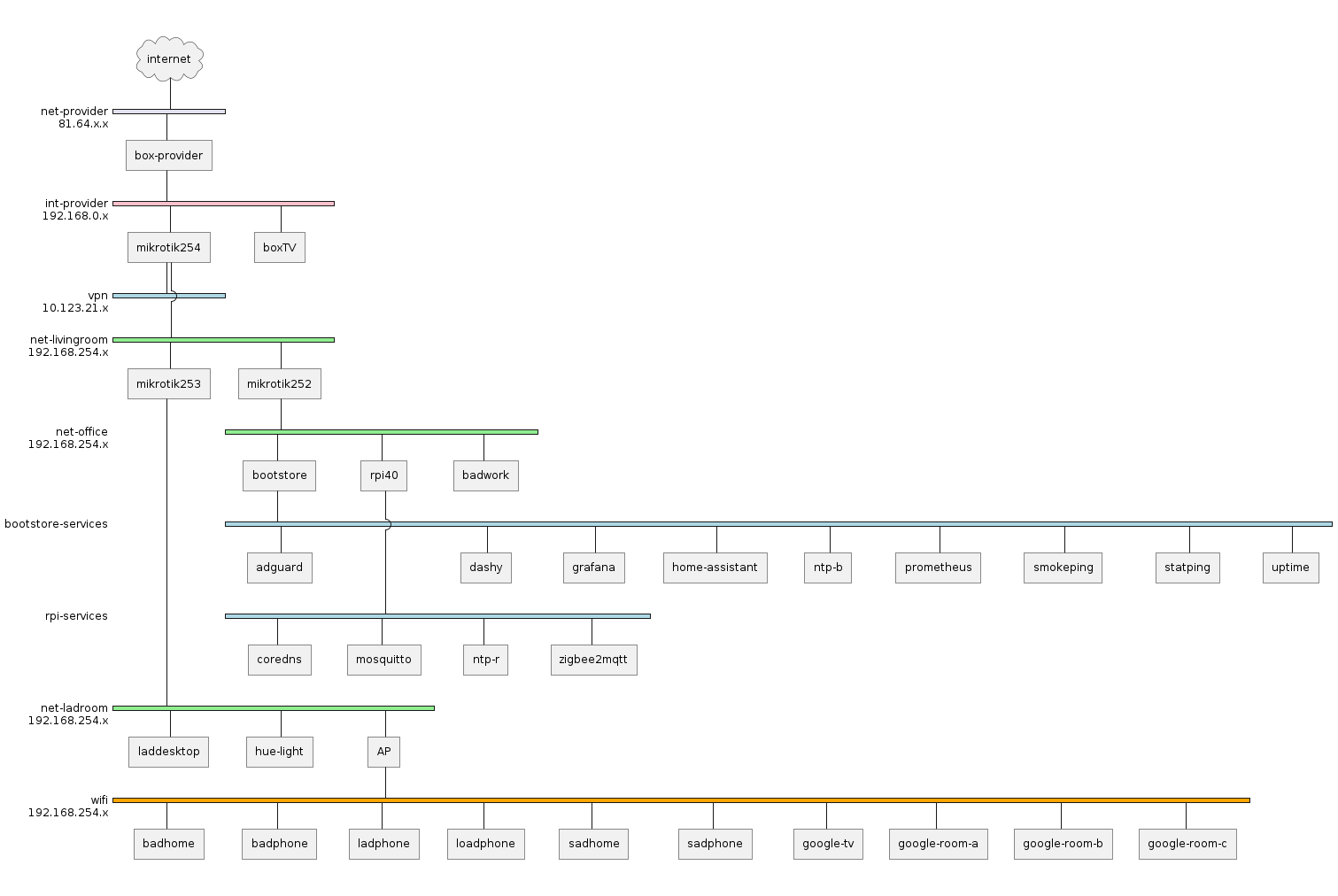

Network Topology

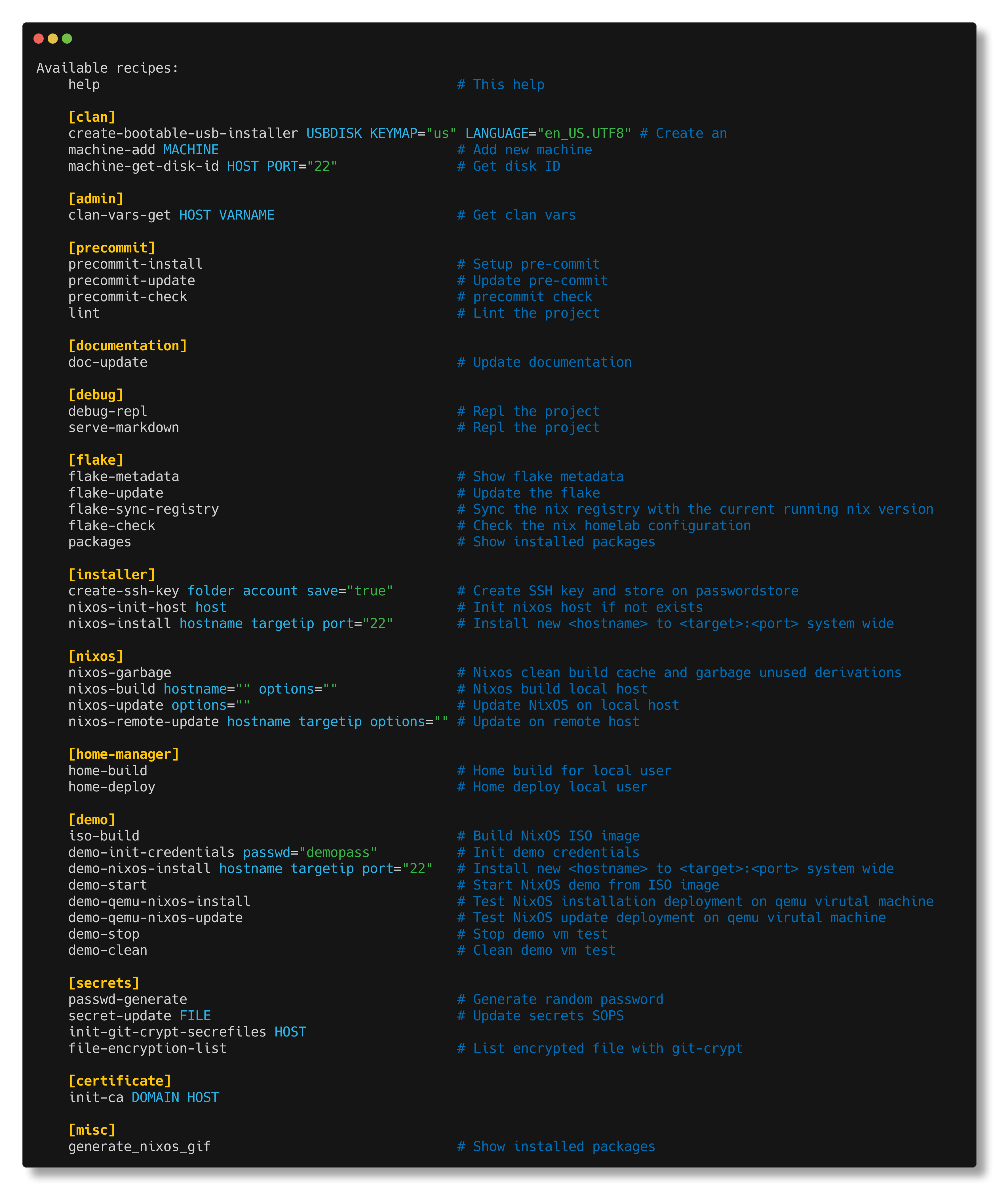

Common Commands

❤️ Thanks

A big thank to the contributors of OpenSource projects in particular :

• clan project Simplest way to re-enter independent computing with our framework
• doctor-cluster-config from German TUM School of Computation
• Mic92 and for his some nix contributions
• Misterio77 and for his some nix contributions
• longerHV nix configuration file
• wikipedia for logos inventories
