Forager

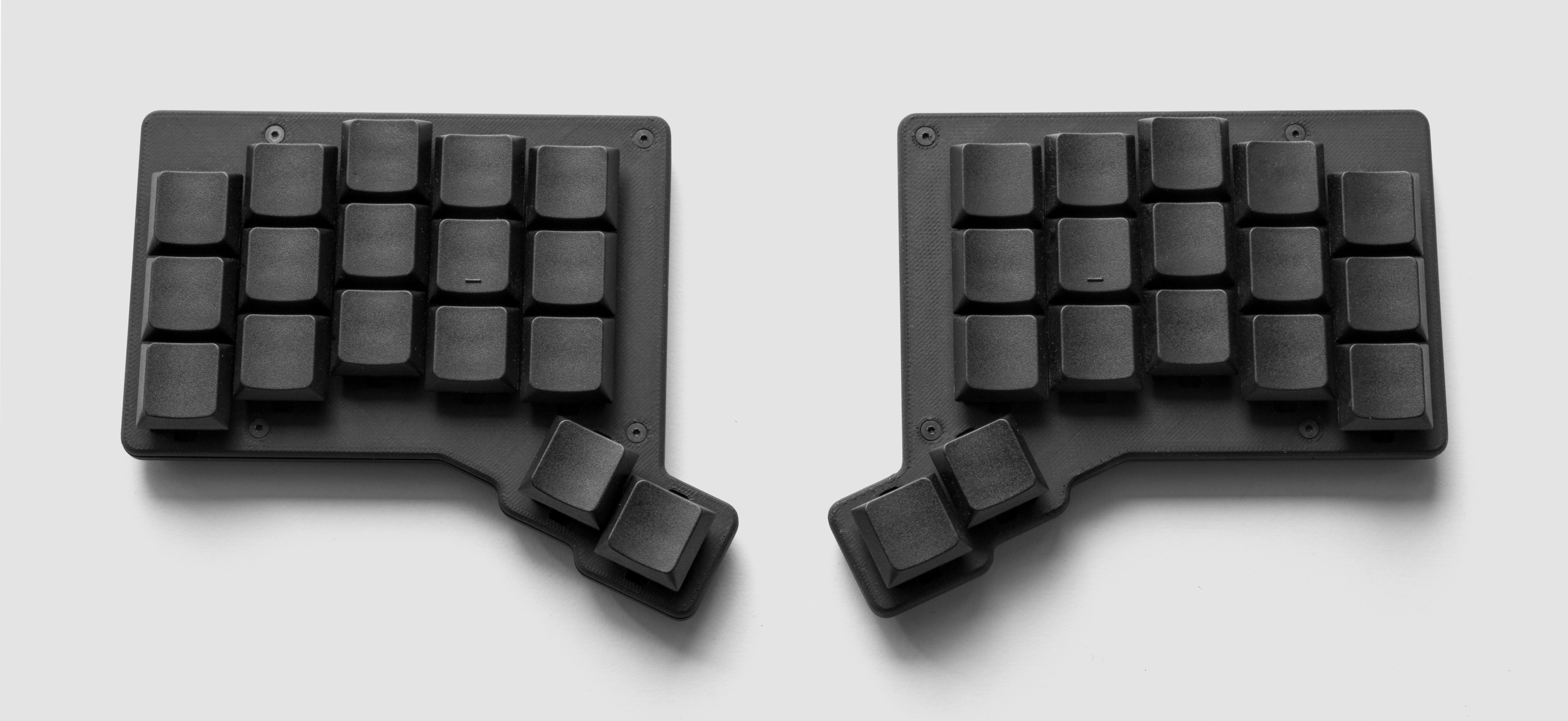

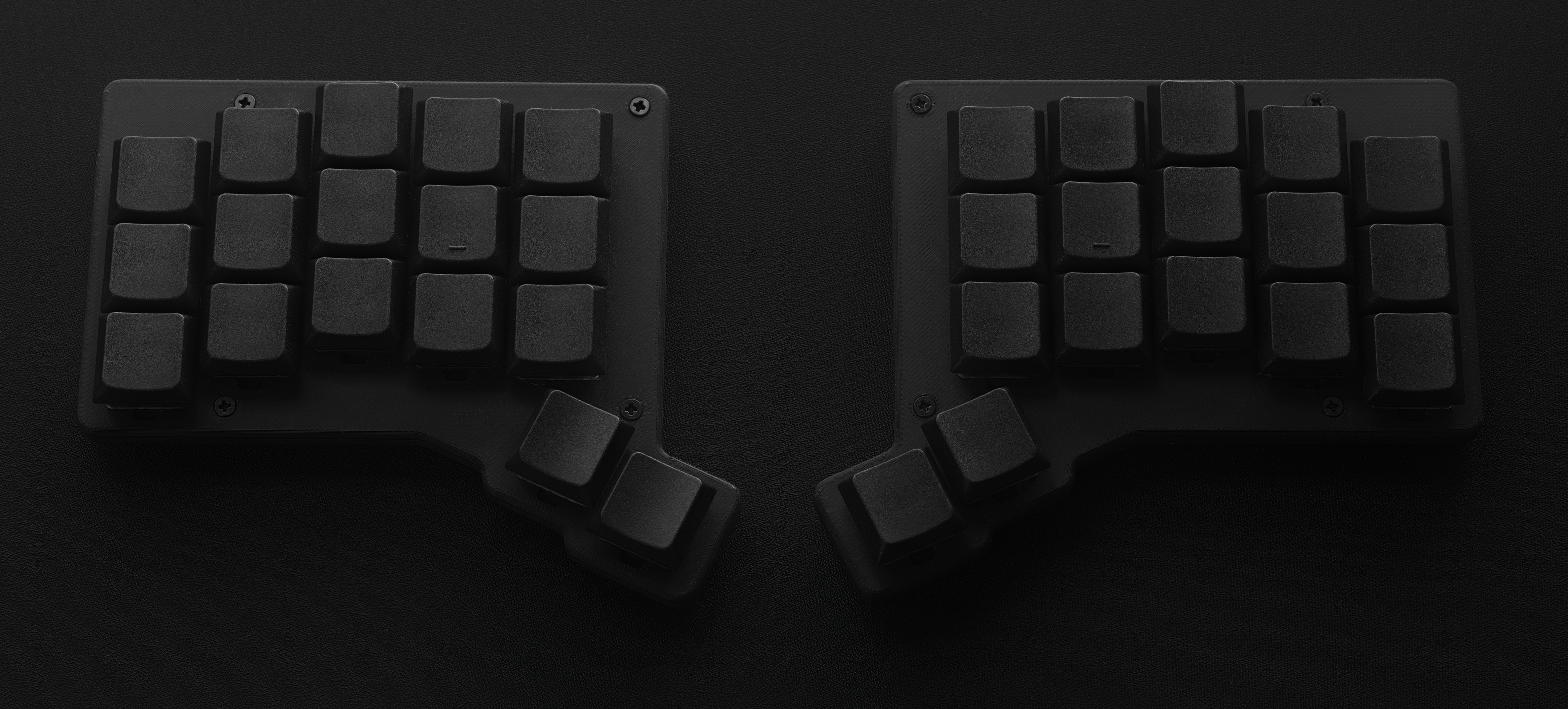

Forager is a Voyager-inspired 34-key low-profile wireless split keyboard powered by ZMK.
why does the large Voyager not simply eat the small Forager?
Design
- Condensed ZSA Voyager layout without outer pinkie column and number row

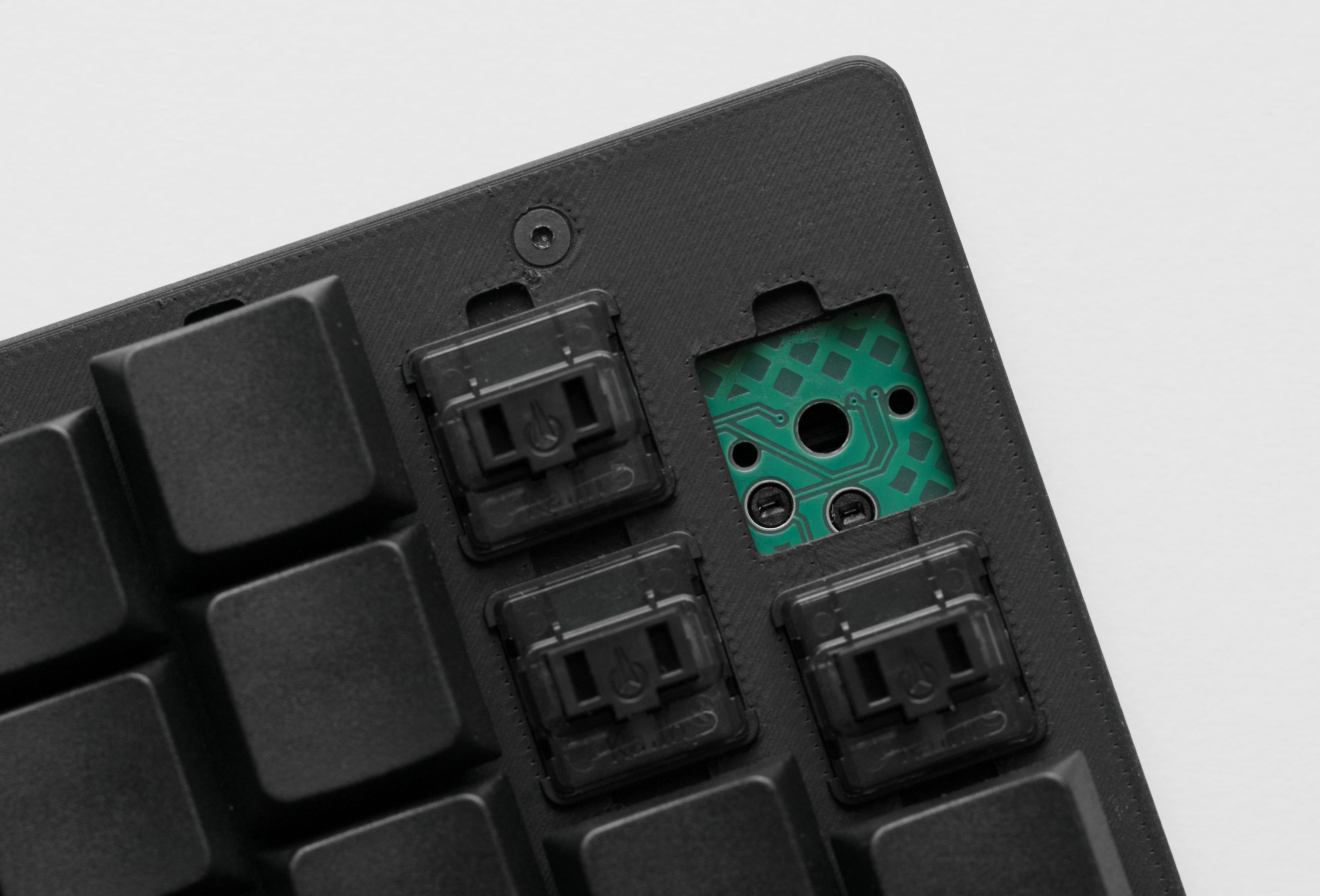

- Hot-swap Kailh Choc V1 switches in Choc (18x17mm) spacing with Voyager-esque switch puller grooves
- Wireless only with Seeed XIAO nRF52840 running ZMK firmware

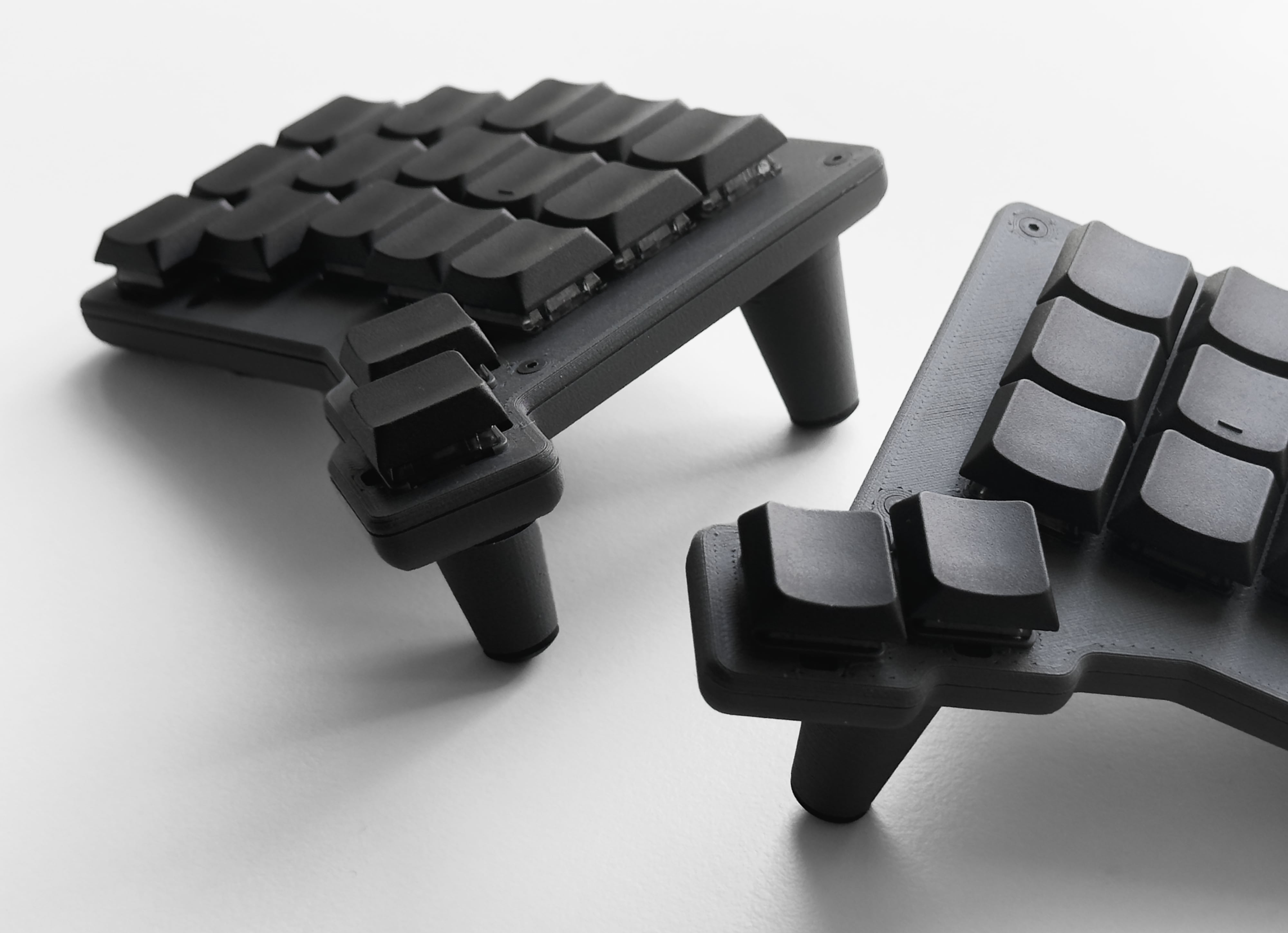

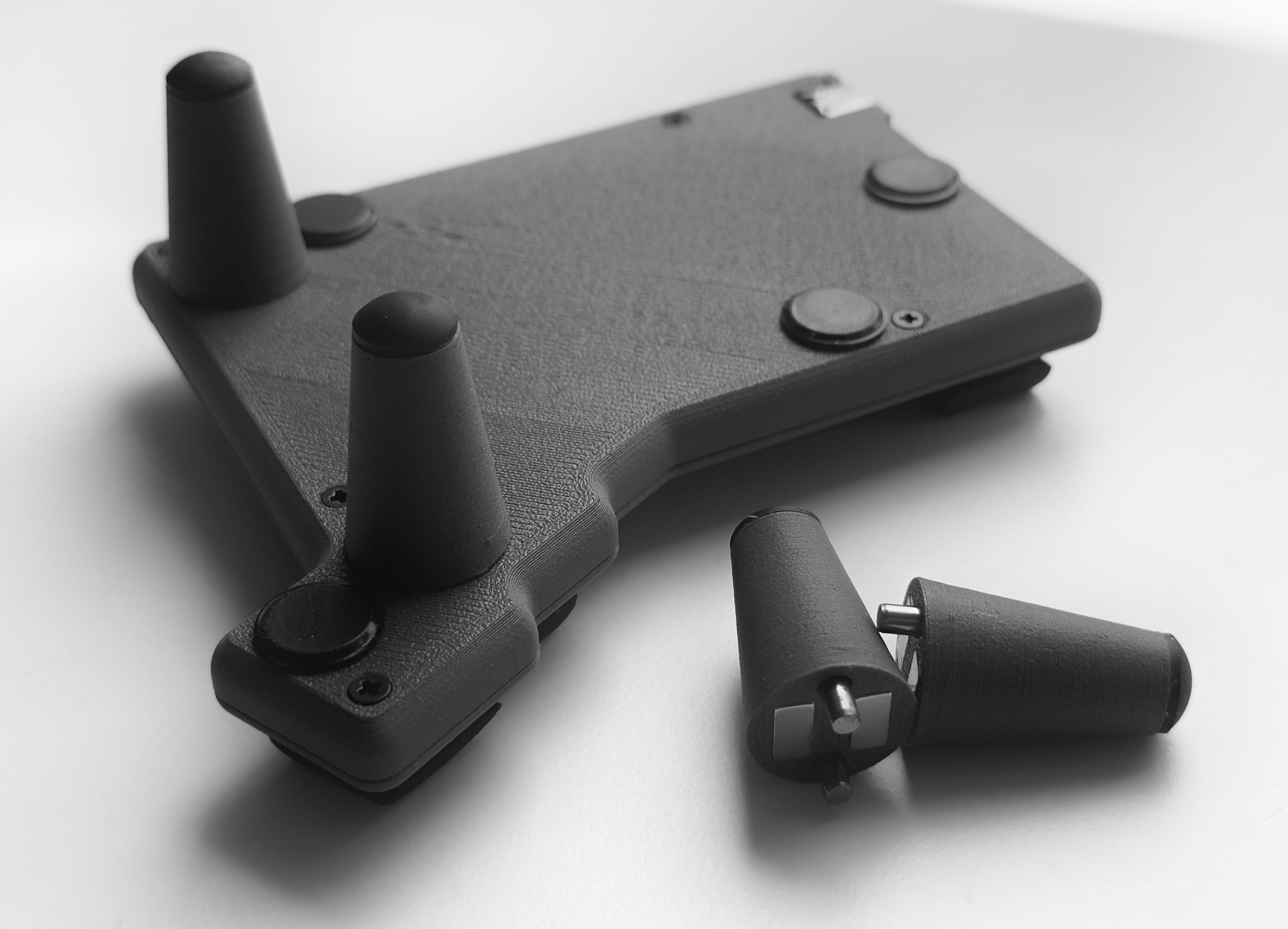

- Magnetic tenting legs inspired by Voyager and Unicorne
- Compact silhouette without the usual blank space occupied by controller
- Fully enclosed with 3D-printed two-piece case

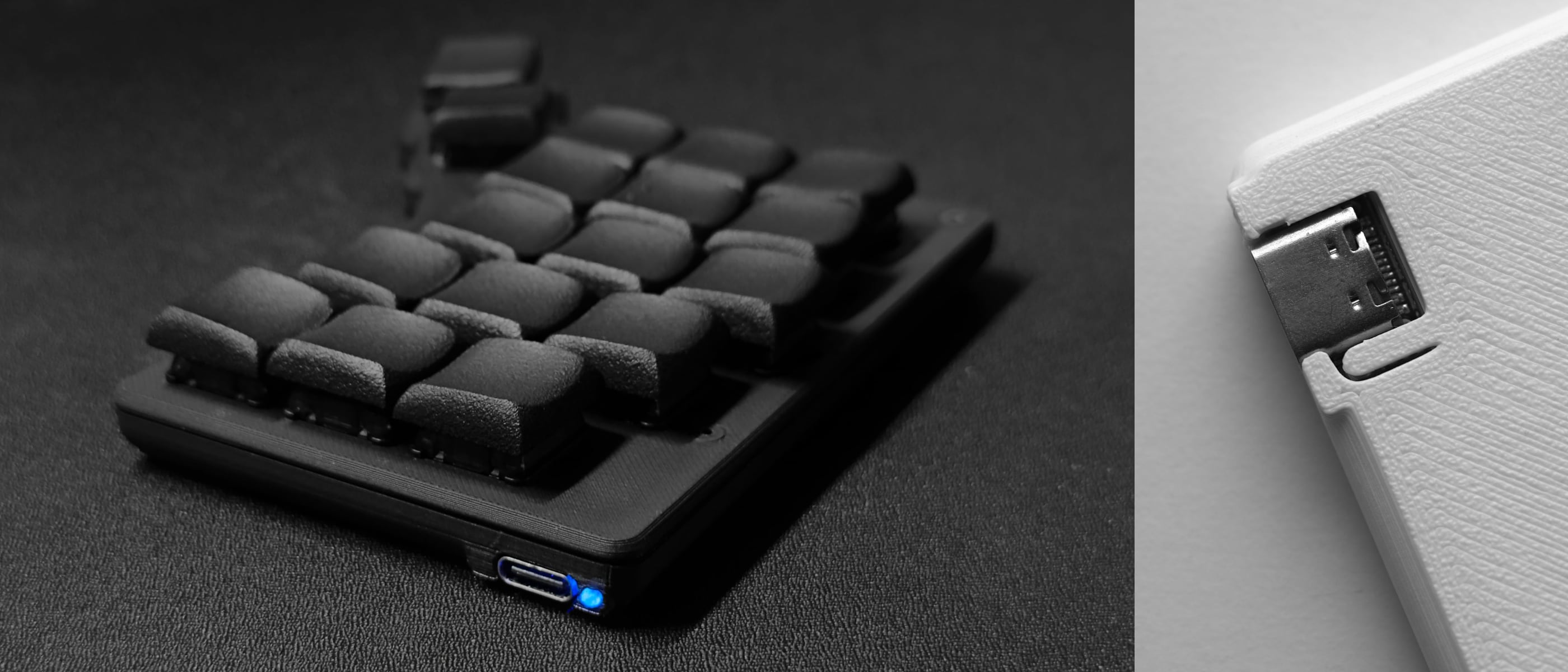

- Minimal BOM by utilizing XIAO nRF52840's onboard RGB LED and reset button
Build Guide and Parts List
Firmware
Credits
- ZSA Voyager: overall layout & aesthetics
- GEIGEIGEIST/TOTEM: XIAO PCB footprint and general placement
- ebastler/marbastlib: symbols and PCB footprints
- caksoylar/zmk-rgbled-widget: RGB LED functionality

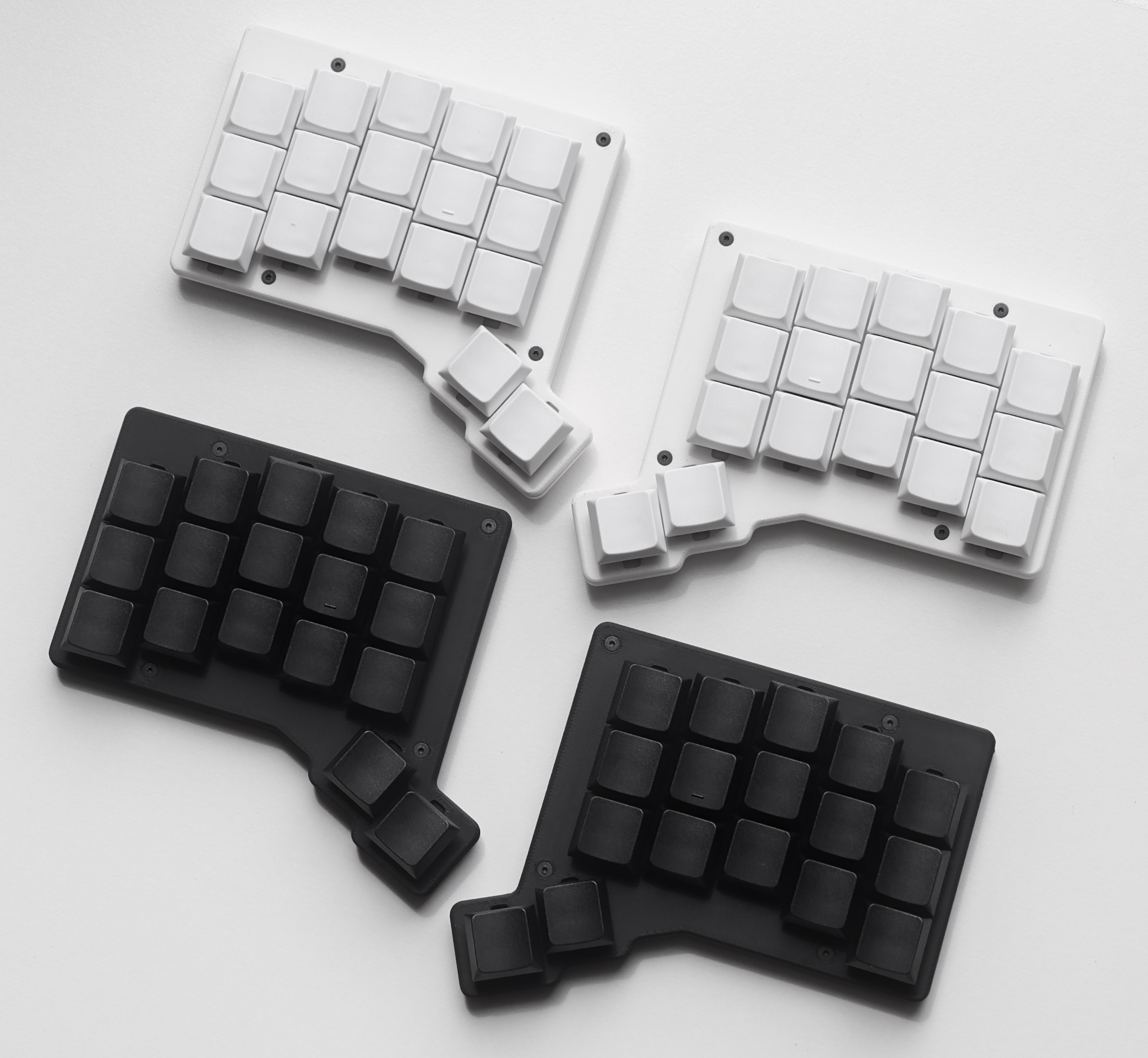

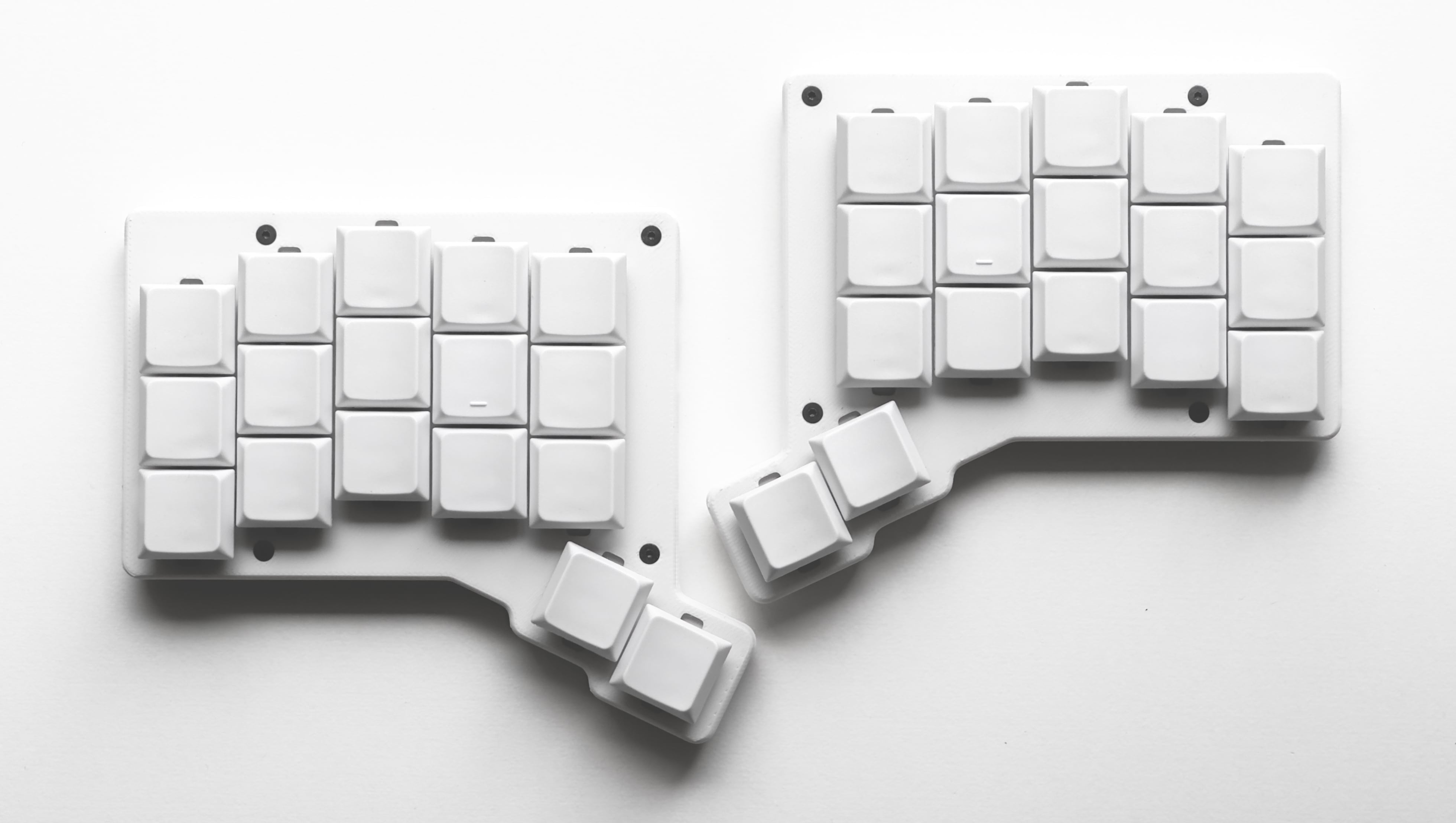

Gallery
