permafrost-engine

Support the Development - Wishlist EVERGLORY on Steam

Permafrost Engine is an OpenGL 3.3 Real Time Strategy game engine written in C. It is made in the image of old classics, but incorporating some modern ideas.

Engine Showcase

EVERGLORY is the flagship game developed using Permafrost Engine.

Download the free demo on Steam. With the demo you also get access to all the scripts powering the gameplay to learn from and modify as you wish.

Engine Summary

• OpenGL 3.3 programmable pipeline (more modern extensions used where available)
• Custom text model format for interoperability with tools; baked binary format for fast runtime loading
• Skeletal animation with GPU skinning
• Batching of animation pose data to a texture for performant rendering of large numbers of animated entities
• Phong reflection model with materials
• Directional light shadow mapping
• Bump mapping, normal mapping, parallax mapping
• Terrain texture splatting
• Skybox
• Distance-based mesh level-of-detal (LOD) rendering
• Batched rendering with dynamic batches
• Ringbuffer-based streaming of data to GPU
• RTS camera, FPS camera
• Rendering of tile-based map with custom file format
• Water rendering (including reflection, refraction, soft edge effects)
• Programmatic synthesis of textures using the Image Quilting algorithm
• Aperiodic tiling of the map plane using the Wang Tiling algorithm
• Engine internals exposed to Python 2.7 for scripting

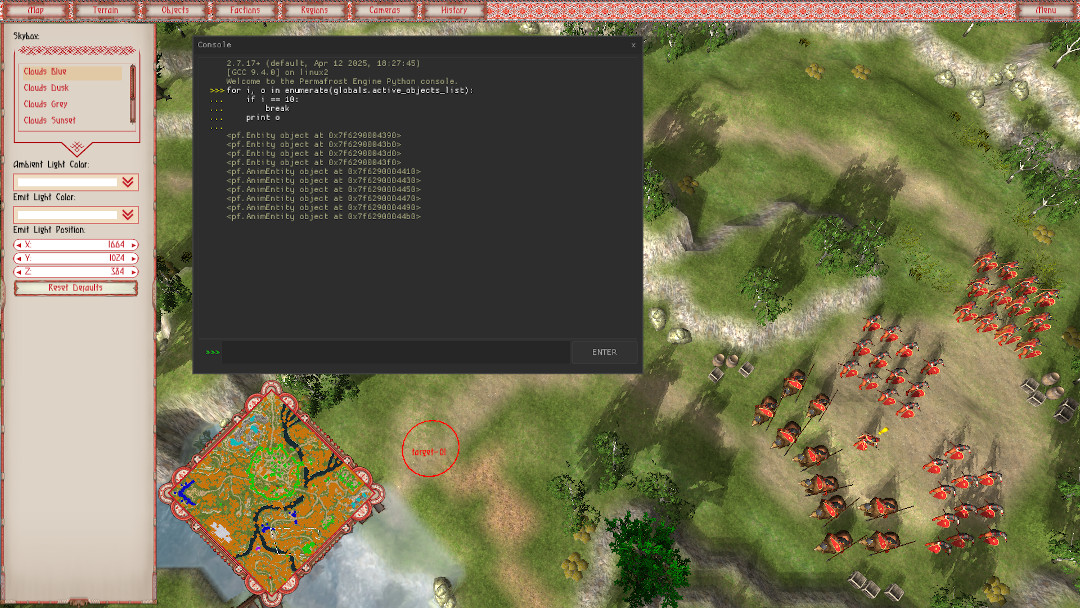

• Embedded interactive Python console
• Event system
• UI framework (Nuklear-based)
• Efficient raycasting

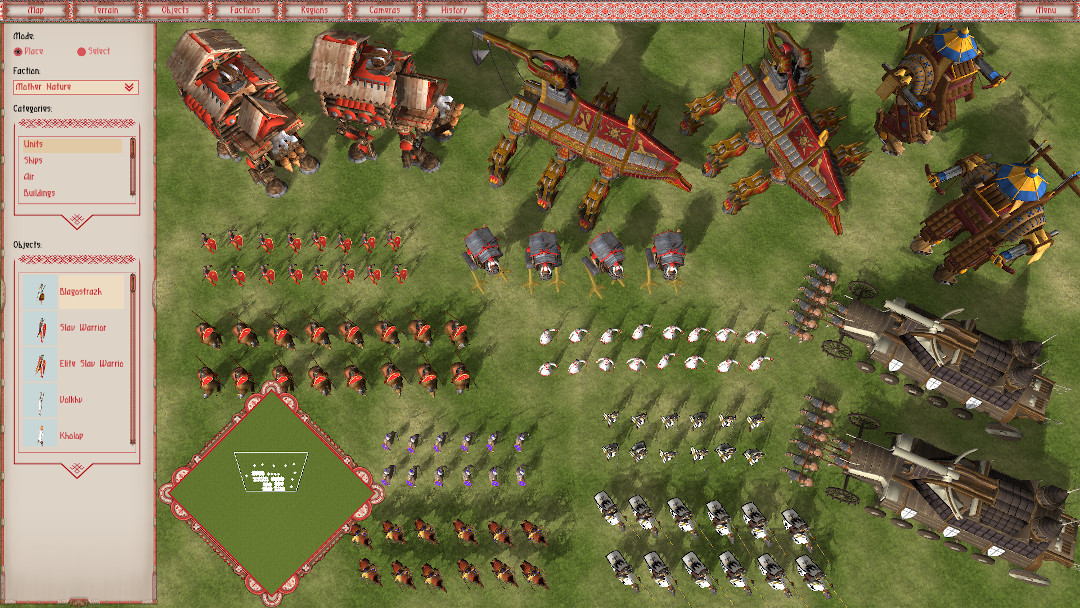

• Map/Scene editor
• Pause/Resume system
• Fast rendering of huge maps
• Map navigation graph/grid generation
• Implementation of 'boids' steering/flocking behaviours
• Hierarchial flow field pathfinding
• Handling of dynamic obstacles in pathfinding
• Dynamic collision avoidance of multiple entities using Hybrid Reciprocal Velocity Obstacles and the ClearPath algorithm
• Formation-based unit movement and placement
• Optimal formation re-shuffling using the Hungarian Algorithm
• Pathfinding of different kinds/sizes of units (using "navigation layers")
• Pathfinding of Land, Water, and Air units
• Movement and pathfinding computations accelerated with parallelism
• GPU-based crowd simulation with compute shaders
• Efficient spatial indexing using a SIMD-accelerated bitmap grid
• Efficient real-time tracking of entity membership to dynamic spatial regions
• Audio system supporting positional effects and multiple channels of global effects
• RTS minimap
• RTS-style unit selection
• RTS unit combat system
• RTS fog-of-war system
• RTS base-building mechanics
• Configurable automation of workers and production
• RTS resource gathering (and transporting) mechanics
• RTS unit garrison and transport mechanics
• Ranged combat using an efficient projectile physics simulation
• Support for different resolutions and aspect ratios
• Configurable graphics settings
• Serialization and deserialization of the entire Python interpreter state
• Saving and restoring of any engine session, including all Python-defined state
• Multithreaded: simulation and rendering in a 2-stage pipeline
• Advanced debug visualizations and profiling instrumentatation
• Lightweight memory accounting for realtime tracking of allocations
• Fiber system for putting work in lightweight tasks that are scheduled in userspace
• Fiber-backed Python tasks, allowing cooperative multitasking logic in Python
• Zero-copy forking of state using page-level Copy-on-Write semantics
• Cross-platform (Linux and Windows)
• Windows launcher to automatically capture a minidump and stdout, stderr logs on application error

Dependencies

• SDL2 2.30.0
• GLEW 2.3.1
• python 2.7.17
• openal-soft 1.21.1
• mi-malloc 2.2.3
• stb_image.h, stb_image_resize.h
• khash.h
• nuklear.h

All dependencies can be built from source and distributed along with the game binary if desired. Python is built with a subset of the default modules and packaged with a trimmed-down stdlib.

Building Permafrost Engine

For Linux

1. git clone https://github.com/eduard-permyakov/permafrost-engine.git
2. cd permafrost-engine
3. make deps (to build the shared library dependencies to ./lib)
4. make pf

Now you can invoke make run to launch the demo or make run_editor to launch the map editor. Optionally, invoke make launchers to create the ./demo and ./editor binaries which don't require any arguments.

For Windows

The source code can be built using the mingw-w64 cross-compilation toolchain (http://mingw-w64.org/doku.php) using largely the same steps as for Linux. Passing PLAT=WINDOWS to the make environment is the only required change.

The compliation can either be done on a Linux host, or natively on Windows using MSYS2 (https://www.msys2.org/).

1. git clone https://github.com/eduard-permyakov/permafrost-engine.git
2. cd permafrost-engine
3. make deps PLAT=WINDOWS
4. make pf PLAT=WINDOWS
5. make launchers PLAT=WINDOWS

Alternatively, a Visual Studio 2022 solution file is provided in the root directory of the project.

Devlog

Follow the development of Permafrost Engine and EVERGLORY on YouTube.

Indie RTS Devlog #1: Introducing Permafrost Engine

Indie RTS Devlog #2: Saving The Python Interpreter

Indie RTS Devlog #3: Group Pathfinding

EVERGLORY: Teaser Trailer #1

Indie RTS Devlog #4: Fog of War

Indie RTS Devlog #5: Performance Optimization

Indie RTS Devlog #6: Fibers, Async Jobs

Indie RTS Devlog #7: Main Menu UI, Loading Missions

Indie RTS Devlog #8: Python Tasks + Making Pong!

Indie RTS Devlog #9: Base Building

Indie RTS Devlog #10: Demo Gameplay

Indie RTS Devlog #11: Resource Gathering, Game Design

Indie RTS Devlog #12: Crafting Units

Indie RTS Devlog #13: Large Unit Pathfinding

Indie RTS Devlog #14: Projectiles, Big Battles

EVERGLORY - Official Trailer (2021 Indie RTS)

Indie RTS Devlog #15: Unit Formations

EVERGLORY (Indie RTS Game) - Pathfinding Showcase

Indie RTS Devlog #16: Land, Water, and Air

Indie RTS Devlog #17: Economy + NEW DEMO

Indie RTS Devlog #18: Improved Map Rendering

EVERGLORY: Teaser Trailer #2 [Indie RTS Game]

EVERGLORY: Teaser Trailer #3 [Indie RTS Game]

License

The source code of Permafrost Engine is freely available under the GPLv3 license, with a special linking exception. However, I may grant permission to use parts or all of the code under a different license on a case-by-case basis. Please inquire by e-mail.

Comments/Questions

You may contact me with any questions, comments, or concerns pertaining to the source code or the underlying algorithms. In addition, you may solicit me regarding interesting job opportunities.

Discuss EVERGLORY and its' development on Discord.

My e-mail is: edward.permyakov@gmail.com
