bitty

Bitty Engine - An itty bitty 2D game engine, with built-in editors, programmable in Lua.

paladin-t
C++★ 341⑂ 24 forksBSD-3-Clauseupdated 1 day ago
bittybitty-engineenginefantasy-computerfantasy-consolegame-developmentgame-enginegamedev
visit the demogit clone https://github.com/paladin-t/bitty.gitpaladin-t/bitty
README.mdfork it — it’s yours

Home | Steam | Itch | Documents | About

An itty bitty 2D game engine.

About Bitty Engine

Bitty Engine is a cross-platform itty bitty 2D Game Engine and open-source Framework. The full featured engine is programmable in Lua and integrated with built-in editors. It keeps the nature of both engine's productivity, and fantasy computer/console's ease to iterate. It boosts your commercial/non-commercial projects, prototypes, game jams, or just thought experiments.

Why Bitty Engine?

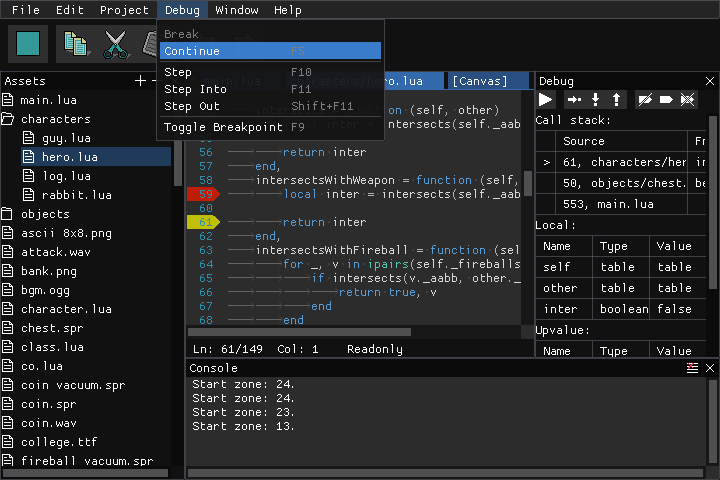

Bitty Engine has everything built-in for coding, graphics composing, etc; it has a full featured debugger for breakpoint, variable inspecting, stepping, and call-stack traversing; it offers a set of well-designed API with full documentation; it builds fast binaries with code and asset obfuscating, moreover its package size is small (around 10MB with empty project, other engine outputs more than 10 times bigger).

It is supposed to be your ultimate 2D game creating software.

Features

Bitty Engine offers a set of orthogonal features that makes game development comfortable and enjoyable.

  • Resources API
    • Resources.load(...), Resources.unload(...)
    • Resources.wait(...), Resources.collect(...)
    • Etc.
  • Graphics API
    • Shapes: plot(...), line(...), circ(...), ellipse(...), rect(...), tri(...)
    • Text: text(...), font(...), measure(...)
    • Texture: tex(...)
    • Sprite: spr(...)
    • Map: map(...)
    • clip(...), camera(...)
    • Etc.
  • Input API
    • Gamepad
    • Keyboard
    • Mouse and touch
  • Audio API
    • Supports MP3, OGG, WAV, FLAC, etc.
  • Physics API
    • Space, Shape, Body, Arbiter, etc.
  • Libraries
    • Algorithms, Archive, Bytes, Color, Database, DateTime, Encoding, File, Filesystem, Image, Json, Math, Network, Platform, Web, TextBox
  • Application interfaces
    • Application, Canvas, Project, Debug

Technical Specifications

  • Display: configurable resolution
  • Code: Lua, supports multiple source files
  • Image: either true-color (PNG, JPG, BMP, TGA) or paletted, up to 1024x1024 pixels per file
  • Sprite: up to 1024x1024 pixels per frame, up to 1024 frames per sprite
  • Map: up to 4096x4096 tiles per page
  • Font: supports Bitmap and TrueType
  • Palette: supported
  • Audio: 1 BGM channel, 4 SFX channels; supports MP3, OGG, WAV, FLAC, etc.
  • Gamepad: 6 buttons for each pad (D-Pad + A/B), up to 2 players
  • Keyboard and mouse: supported

Glance

Code

local obj = nil

function setup()
  obj = Resources.load('hero.spr')
  obj:play('move', true, true)
end

function update(delta)
  spr(obj, 208, 128, 64, 64)
end

See more in bitty/examples.

Engine

Games

Details

Redistributing

Bitty Engine helps you to make standalone binaries for Windows, MacOS, Linux, and HTML (WebAssembly). It is redistributable for both non-commercial and commercial use without extra fee, your project is totally yours.

Everything is done with Bitty Engine by nothing more than a few mouse clicks.

Put an image at "../icon.png" relative to executable to customize the icon dynamically. Put an image at "../splash.png" as well to customize the splash, the image could be transparent.

Getting Bitty Engine

The pre-built binary is available on Steam and Itch.

Compiling from Source

A C++14 capable compiler is required, any compiler came after 2014 should be ok. You need to get this repository before build:

git clone https://github.com/paladin-t/bitty.git
cd bitty
Details

See the README under the "src" directory for source code architecture.

There are some customizable macros:

  • BITTY_MULTITHREAD_ENABLED[=1]: indicates whether project code executes on a thread separately from graphics
  • BITTY_DEBUG_ENABLED[=1]: indicates whether project code debug is enabled; requires BITTY_MULTITHREAD_ENABLED==1; disable this to build a pure runner
  • BITTY_NETWORK_ENABLED[=1]: indicates whether the Network API is enabled
  • BITTY_WEB_ENABLED[=1]: indicates whether the Web API is enabled; disable this if you don't need web accessibility
  • BITTY_SPLASH_ENABLED[=1]: indicates whether the splash is enabled
  • BITTY_EFFECTS_ENABLED[=0]: whether full screen effects is enabled
  • BITTY_PROJECT_STRATEGY_MAP_BATCH_ENABLED[=0]: indicates whether map batch is preferred; it might speed up map rendering if enabled, but requires more memory and could be slow with mset(...)

Startup Project

Once you have setup and built a binary, it loads from "../data" or "../data.bit" automatically as startup project. Otherwise it shows a programmable workspace.

Windows

Dependencies: Visual Studio (with C++ development tools installed).

Steps
  1. Build SDL2
    1. Compile from "lib/sdl/VisualC/SDL.sln"
    2. Execute lib/sdl/copy_win.cmd
  2. Build SDL2_mixer
    1. Compile from "lib/sdl_mixer/VisualC/SDL_mixer.sln" (need to setup SDL2 including and linking paths from previous step manually)
    2. Execute lib/sdl_mixer/copy_win.cmd
  3. Build Bitty Engine
    1. Compile from "bitty.sln"

Linux

Dependencies: CMake, GCC.

Steps
  1. Build cURL
    1. Execute:
      cd lib/curl
./configure
make
cd ../..
    2. Execute lib/curl/copy_linux.sh
  2. Build libuv
    1. Execute:
      cd lib/libuv
sh autogen.sh
./configure
make
sudo make install
cd ../..
    2. Execute lib/libuv/copy_linux.sh
  3. Build SDL2
    1. Execute:
      cd lib/sdl
./configure
make
sudo make install
cd ../..
    2. Execute lib/sdl/copy_linux.sh
  4. Build SDL2_mixer
    1. Install necessary dependencies to enable extra audio format support, eg. for Ubuntu execute:
      sudo apt install libflac-dev libfluidsynth-dev libmodplug-dev libmpg123-dev libopus-dev libopusfile-dev libvorbis-dev
    2. Execute:
      cd lib/sdl_mixer
./configure
make
cd ../..
    3. Execute lib/sdl_mixer/copy_linux.sh
  5. Build Bitty Engine
    1. Execute:
      cd bitty.linux
cmake . && make
cd ..

Note: If you want to link to the system libraries instead of the local libraries in this repo, refer to the instructions below. You can configure BITTY_LIB_CURL_USE_LOCAL, BITTY_LIB_LIBUV_USE_LOCAL, and BITTY_LIB_SDL_USE_LOCAL to determine the linking strategy respectively for cURL, libuv, and SDL.

cd bitty.linux
cmake . -DBITTY_LIB_CURL_USE_LOCAL=FALSE -DBITTY_LIB_LIBUV_USE_LOCAL=FALSE -DBITTY_LIB_SDL_USE_LOCAL=FALSE && make
cd ..

MacOS

Dependencies: Xcode.

Steps
  1. Build cURL
    1. Execute:
      cd lib/curl
./build_macos.sh
cd ../..
  2. Build SDL2
    1. Compile framework from "lib/sdl/Xcode/SDL/SDL.xcodeproj"
    2. Reveal "SDL2.framework" in Finder
    3. Copy "SDL2.framework" to both "lib/sdl/lib/" and "/Library/Frameworks/" (used in following step)
  3. Use pre-built "lib/sdl_mixer/lib/SDL2_mixer.framework" or build SDL2_mixer
    1. Compile framework from "lib/sdl_mixer/Xcode/SDL_mixer.xcodeproj"
    2. Reveal "SDL2_mixer.framework" in Finder
    3. Copy "SDL2_mixer.framework" to "lib/sdl_mixer/lib/"
  4. Build Bitty Engine
    1. Compile from "bitty.xcodeproj"

Other Platforms

Details

You can also setup your own build pipeline for other platforms. The "lib", "src", and "studio" directories are almost what you need. See the README under the "src" directory for code architecture.

The "platform_*" files contain most platform dependent code, you'll probably make a specific port.

Note the file dialog library is only usable on desktop builds, make your own adaption if you need it on other platforms.

Community and Contributing

Documentation
